ACER V176L
8

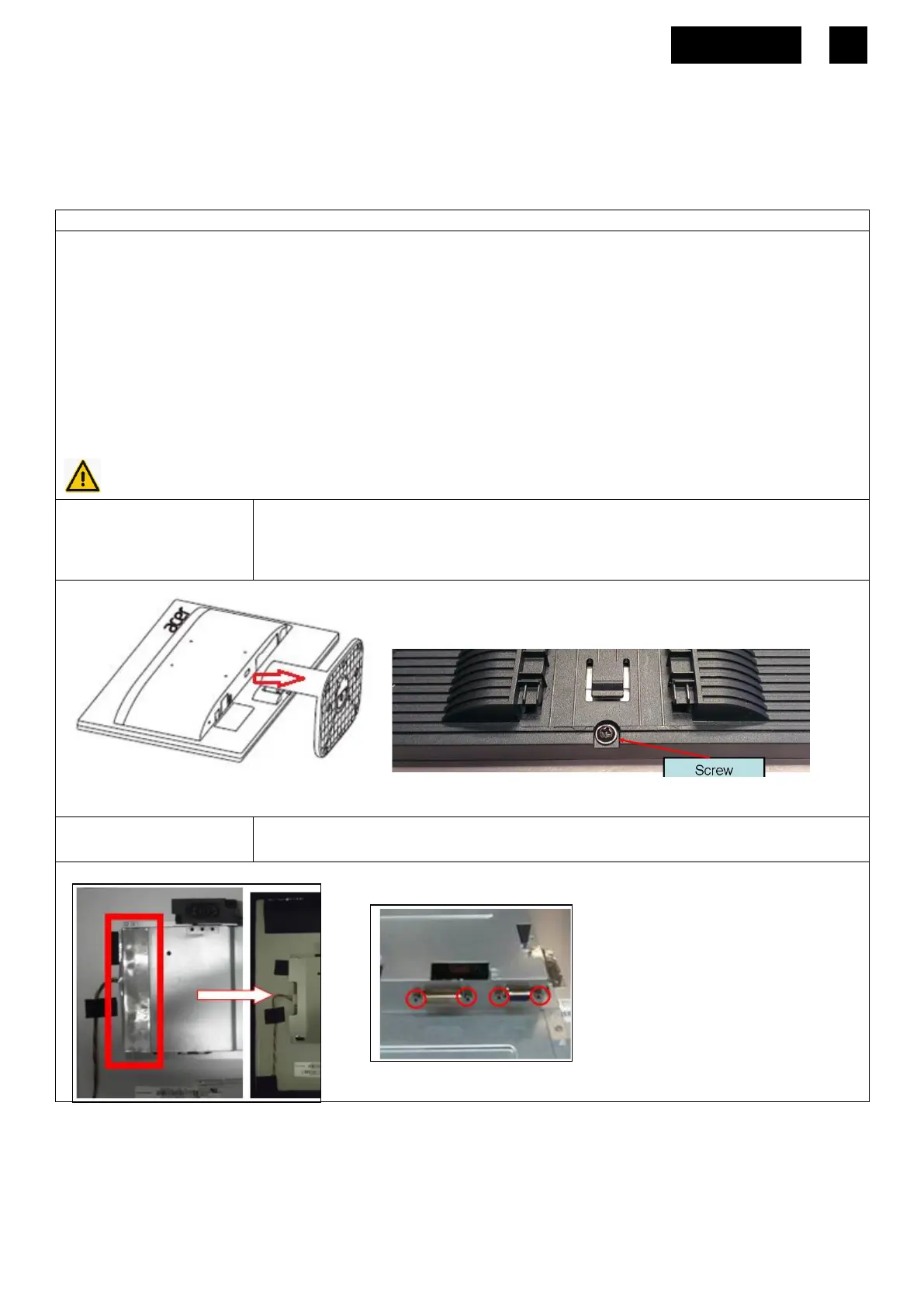

4. Disassembly and Assembly SOP
V176L
4.1 Disassembly Procedures
Preparation before disassemble
1.Clean the room for disassemble
2.Identify the area for monitor
3.Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for material flow;
according to the actual condition plan the disassemble layout
4.Prepare the implement, equipment, materials as bellow:
1) working table
2) Screw-driver: Philips-head screwdriver, Hex-head screwdriver
3) knife
4) glove
5) cleaning cloth
6) ESD protection
After unplugging the power cord, the power board still have power energe. Please pay attention
when disassembling/assembling Power BD.
S1
Disassemble the
RC(Rear Case), stand
and base
Before Disassembling & Assembling, monitor need to be put on the sponge and
the Insulation glove must be wore during the process.
Disassemble Stand and Base from the RC(Rear Case). Unlock RC screws.
Disassemble RC from monitor.
S2
Disassemble SHD
Tear down AL-Tape off SHD(Shielding) as picture 1.
Unlock the Hexagonal screws as picture 2.
PICTURE 1 PICTURE 2

Acer V176L Specifications

General

3D	-
Panel type	TN+Film
Aspect ratio	5:4
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Display technology	LED
Viewing angle, vertical	160 °
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
Certification	TCO Certified Displays 6.0
Product color	Black
LED indicators	Power
Tilt angle range	-5 - 25 °
Panel mounting interface	100 x 100 mm
AC input voltage	120 - 230 V
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	15.5 W
Sustainability certificates	EPEAT Gold
Cables included	AC, VGA

Weight and Dimensions

Weight (with stand)	2600 g
Depth (without stand)	55 mm
Width (without stand)	369 mm
Height (without stand)	308.7 mm
Weight (without stand)	2200 g
