Acer V176L Guide

ACER V176L
9
S3

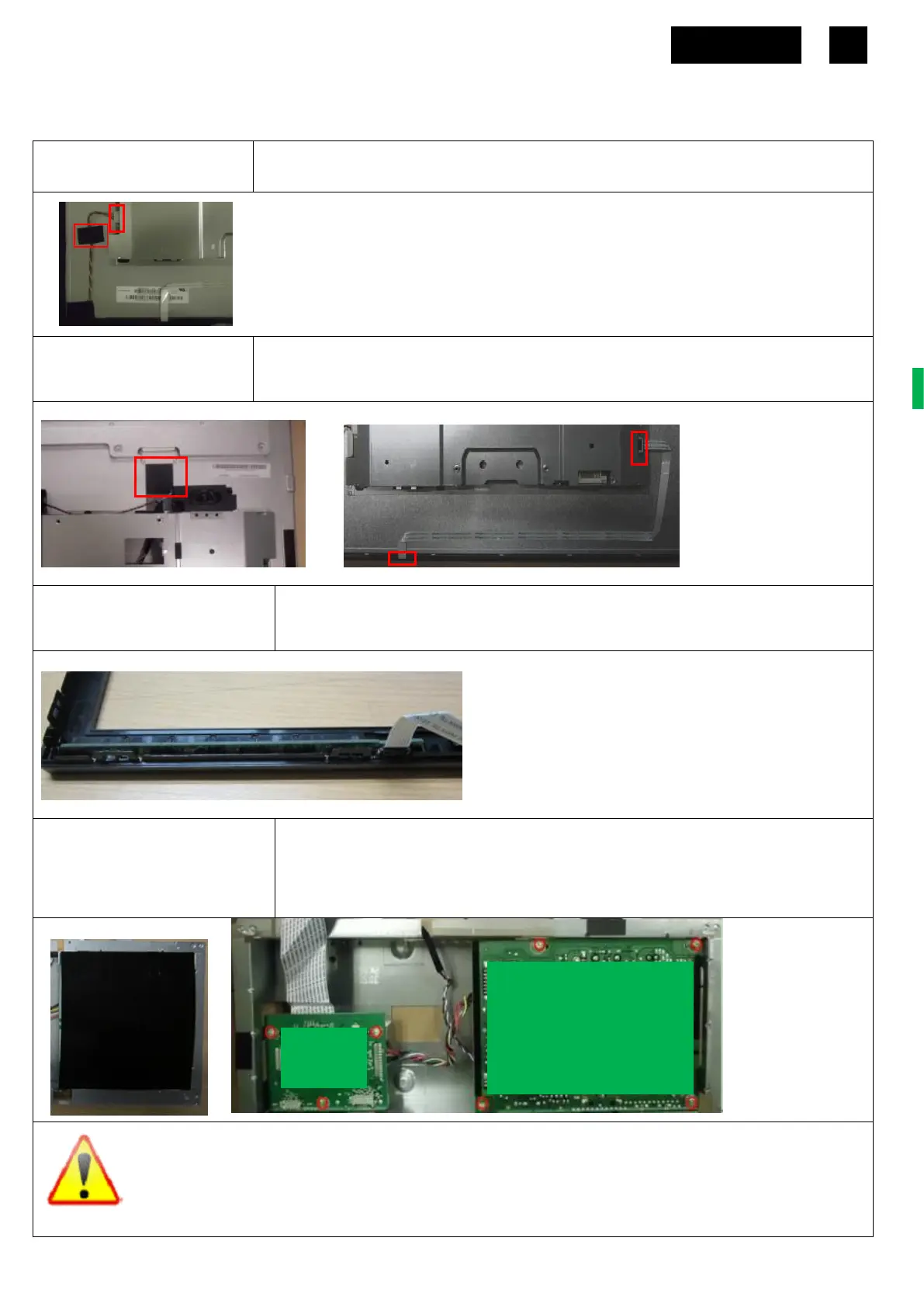

Disassemble the lamp wire
Tear off the tape on the lamp wire and etract the lamp wire form the P/BD(Power Board)
as the picture.
S4
Disassemble LVDS
CABLE and CTRL BD
Tear off the tape, pull out the FFC as picture 1.
Pull the CTRL BD-FFC out of the PCBA and the CTRL BD, tear off the tape and
disassemble the CTRL BD-FFC
PICTURE 1 PICTURE 2
S5
Disassemble the Bezel from
panel.
Tear off the tapes, take out the Panel and the CTRL BD of the Bezel
S6
Disassemble I/F BD and
P/BD from SHD.
Disassembled the Mylar and unlock all screws.
Disassemble the I/F BD from the SHD and extract the P/BD wire.
Extract the FFC LVDS from the I/F BD.
Disassemble SPK.
Disassemble the P/BD from the SHD.
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
LED BD
P/BD
IF BD

Acer V176L Specifications

General

3D	-
Panel type	TN+Film
Aspect ratio	5:4
Display diagonal	17 \
Display resolution	1280 x 1024 pixels
Display technology	LED
Viewing angle, vertical	160 °
Display number of colors	16.78 million colors
Viewing angle, horizontal	170 °
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	1280 x 1024 (SXGA)
On/off switch	Yes
Certification	TCO Certified Displays 6.0
Product color	Black
LED indicators	Power
Tilt angle range	-5 - 25 °
Panel mounting interface	100 x 100 mm
AC input voltage	120 - 230 V
Energy efficiency scale	A to G
Power consumption (off)	0.3 W
Power consumption (standby)	0.5 W
Power consumption (typical)	15.5 W
Sustainability certificates	EPEAT Gold
Cables included	AC, VGA

Weight and Dimensions

Weight (with stand)	2600 g
Depth (without stand)	55 mm
Width (without stand)	369 mm
Height (without stand)	308.7 mm
Weight (without stand)	2200 g
