Acer V193

52
Chapter 5
Connector Information
Phonejack stereo
PIN1. right : CEE22 typed connector
PIN2. Left
PIN3. Gnd : Line-in receptacle
Video input Connector

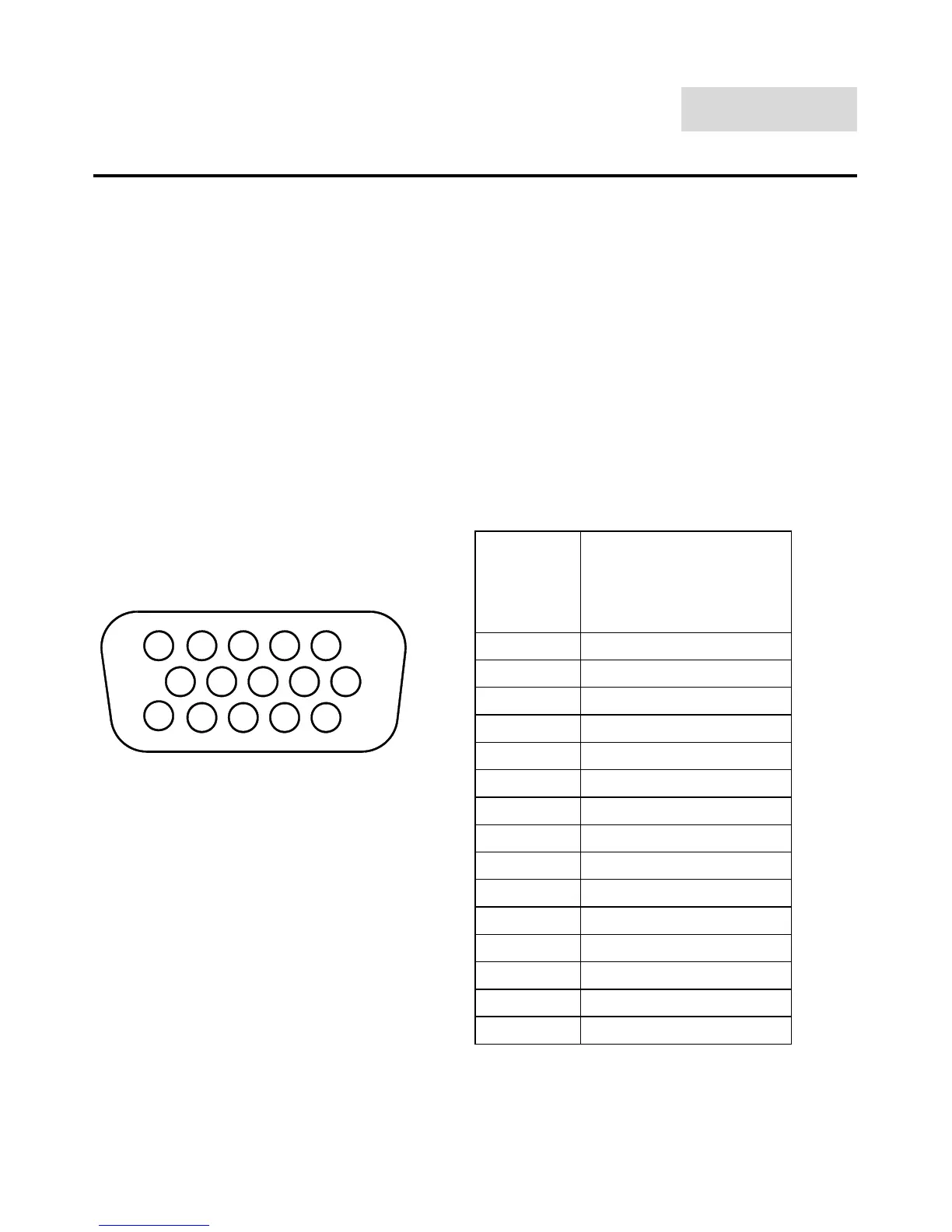

Analog Video input Connector: 15pins mini D-Sub
Table 2.4.5. Pin assignment for D-sub connector
PIN NO.
Separate Sync
1 RED VIDEO
2 GREEN VIDEO
3 BLUE VIDEO
4 GROUND
5 GROUND
6 RED GROUND
7 GREEN GROUND
8 BLUE GROUND
9 PC5V (+5V DDC)
10 CABLE DETECTION
11 GROUND
12 SDA
13 H.SYNC
14 V.SYNC
15
10
5 1
6
11
15 SCL
