Acer X112 Series - Getting Started; Connecting the Projector

7
English
Getting Started

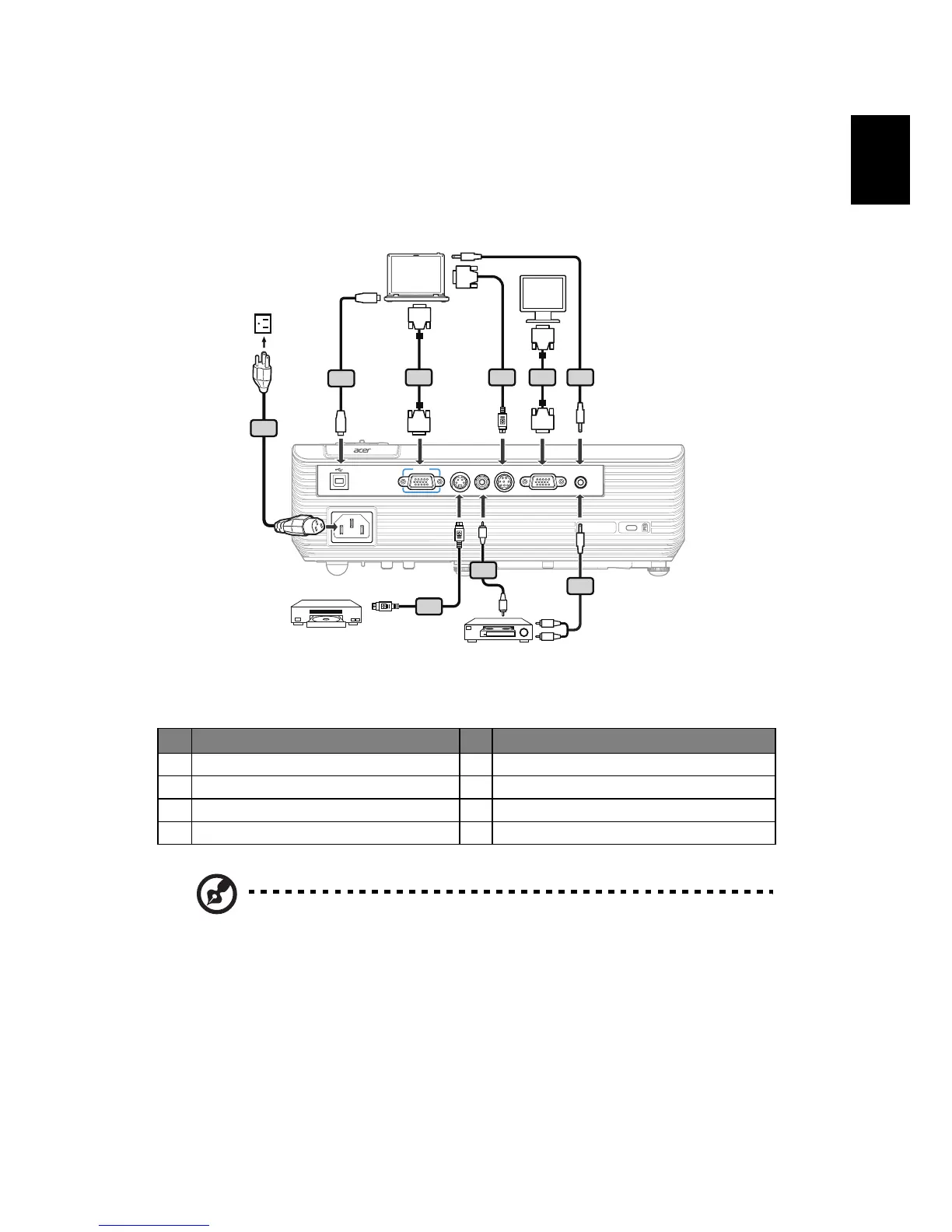

Connecting the Projector
Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note: Connector interface is subject to model's specifications.
Note: USB cable needs powered extender if the length is over 5 m.
# Description # Description
1 Power cord 5 Audio cable jack/jack
2 USB cable 6 S-Video cable
3 VGA cable 7 Composite video cable
4 RS232 cable 8 Audio cable jack/RCA
VGA IN S-VI DEO VIDEO RS232 VGA OUT AUDIO IN
VGA
Y
D-Sub
D-Sub
D-Sub
D-Sub
RS232
USB
USB
Y
R
W
3
7
6
5
8
4
3
2
1
S-Video output
Video output
