ACER XV240Y
9
S6

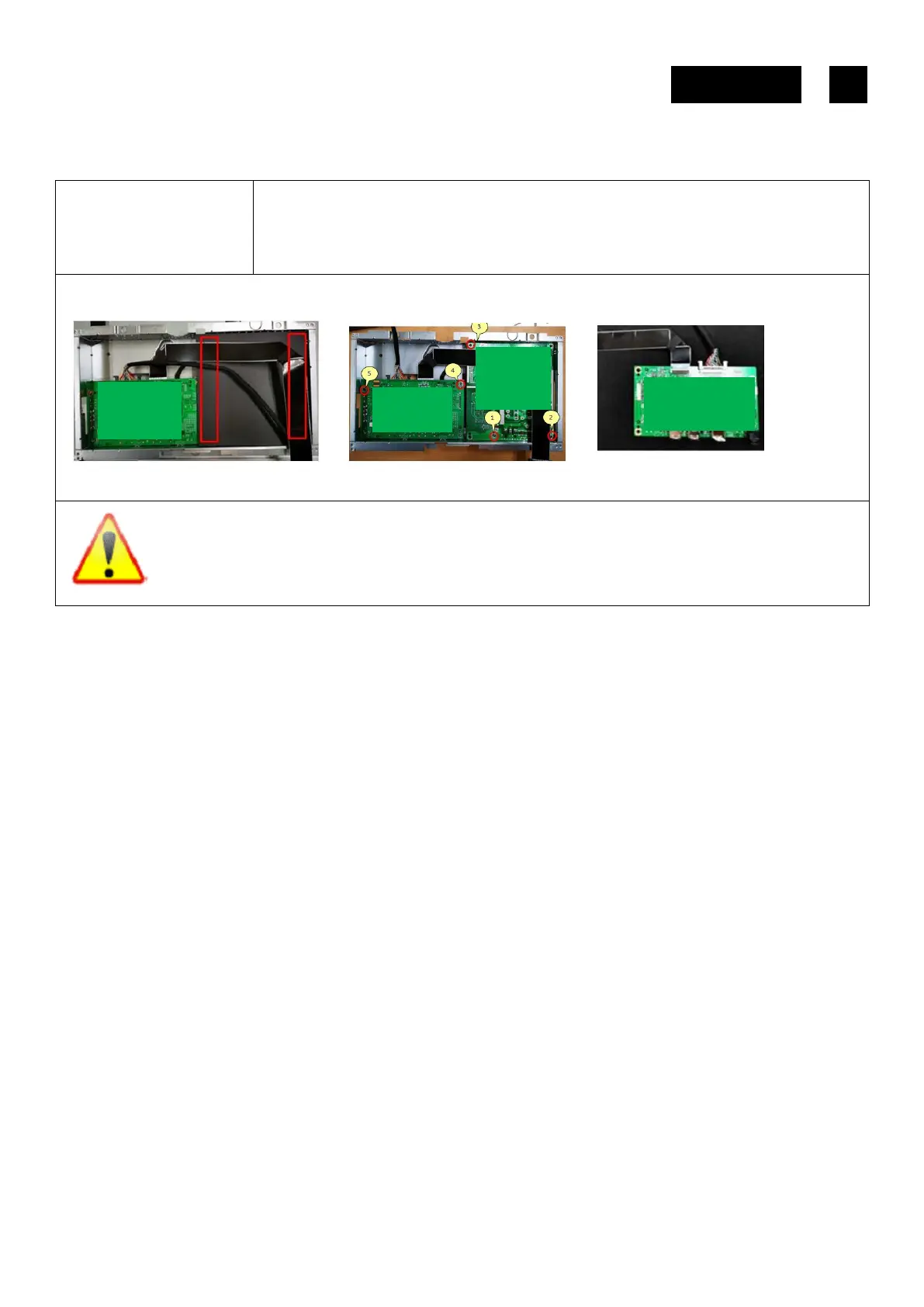

Disassemble I/F BD
and P/BD.
Tear off Mylar from the SHD.
Unlock 5 PCBA screws from the PCBA as picture 2
Disassemble the I/F BD from the SHD and extract the P/BD wire, the FFC LVDS from
the I/F BD.
Disassemble the P/BD from the SHD.
PICTURE 1 PICTURE 2 PICTURE 3
NOTE: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
I/F BD
P/BD
I/F BD
I/F BD
