Chapter 3 100
Removing the Home Button Board
1. See “Removing the Frame” on page 89.

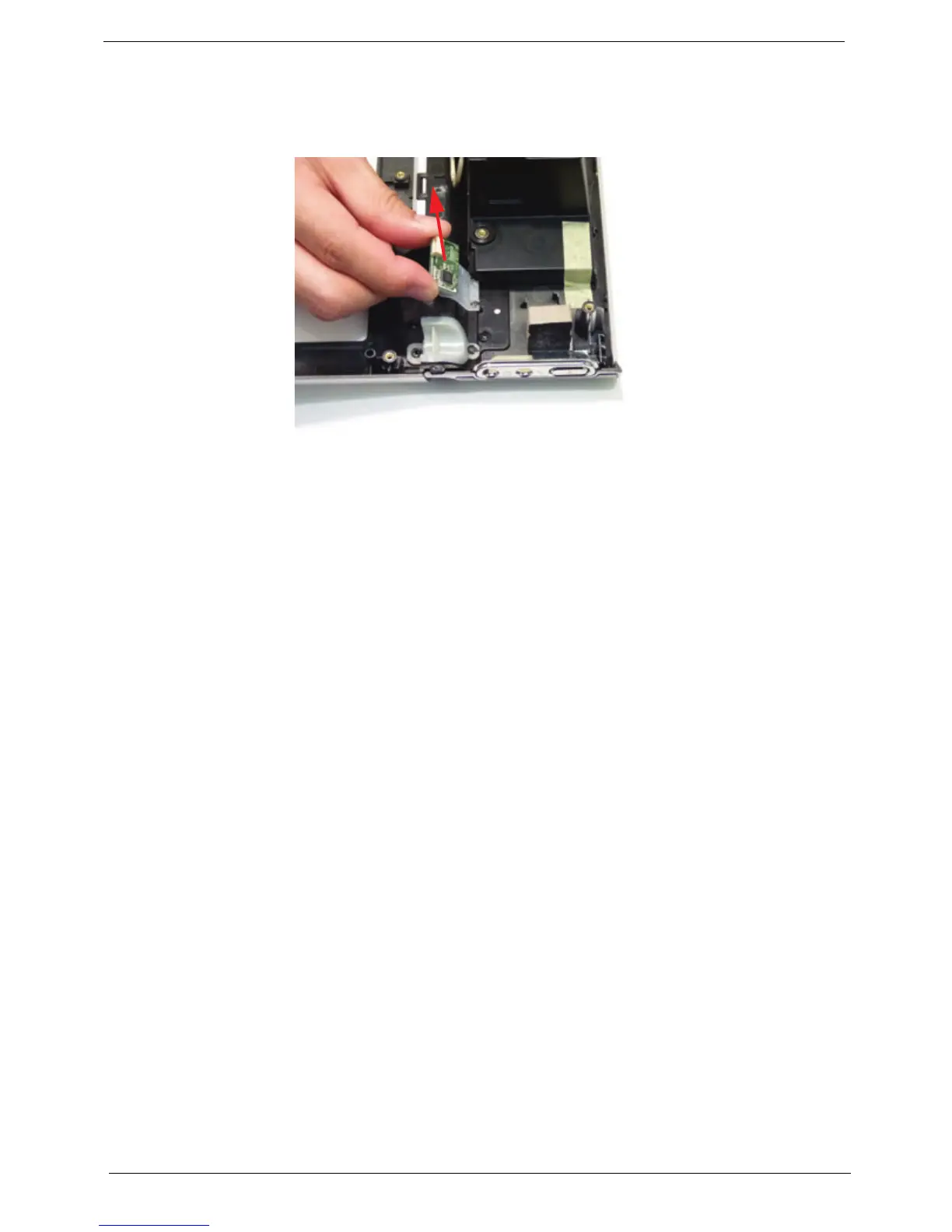

2. Lift the power board away from the bezel.
