4 INSTALLATION
4.1 LOCATION AND MOUNTING
Mount the sensor/transmitter unit on a solid, non-vibrating surface or structure in an area where
the local concentration of gas is unaffected by the presence of ventilation systems and away
from sources of interference gases. The sensor housing SHOULD NOT touch the mounting
surface. Some cases may require the use of a spacer between the mounting surface and the
transmitter housing. (See FIGURE 1)
Note:
Mounting arrangement of transmitter housing depends on location of transmitter, and
mounting surface. Mounting hardware NOT supplied.

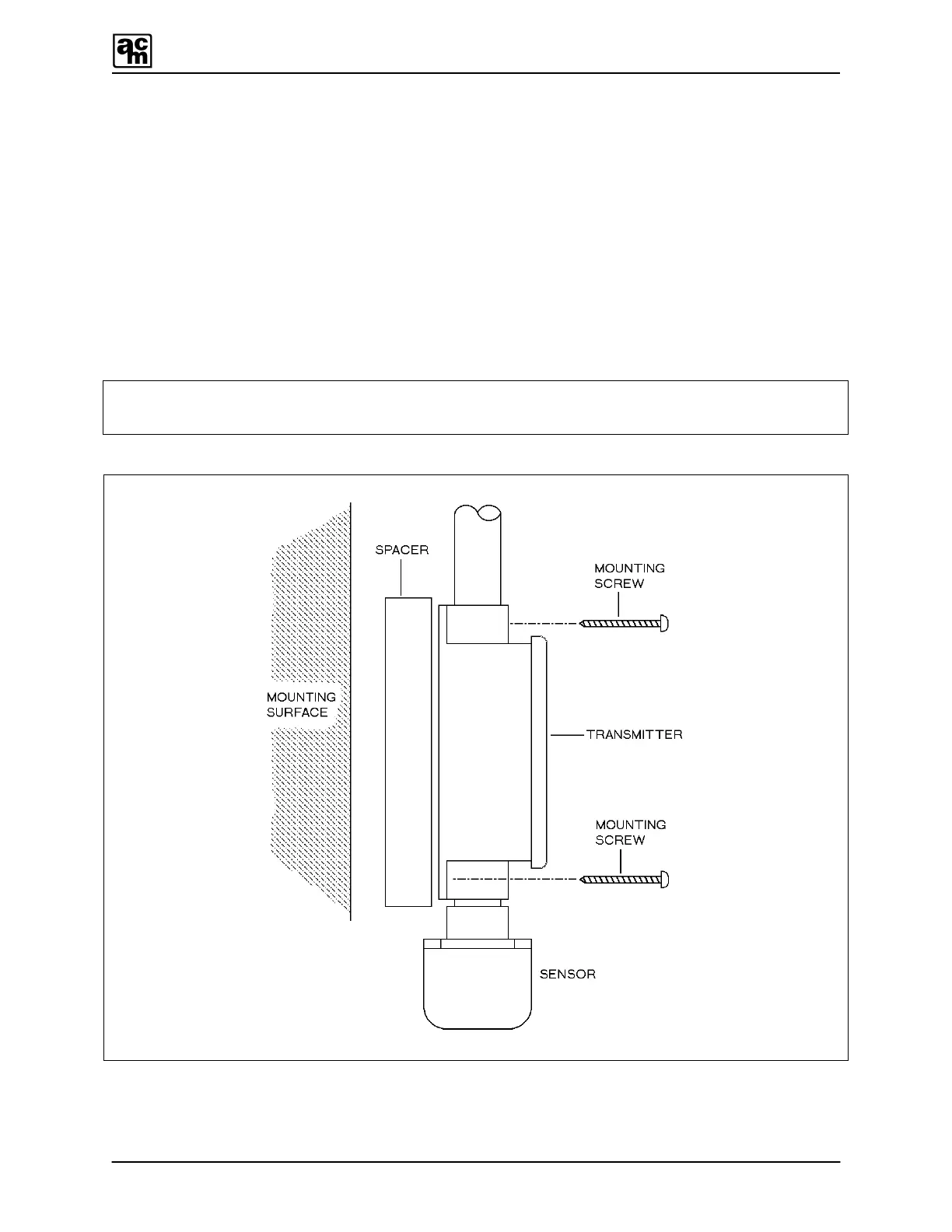

FIGURE 1: Mounting of the transmitter housing.

ACM 200 Series Specifications

General

Output	4-20 mA, HART
Accuracy	±0.1% of span
Operating Temperature	-40 to 85°C
Input	4-20 mA
Frequency Range	Not applicable
Output Power	Not applicable
Modulation	Not applicable
