SECTION 8
Programming
8.1.6 Bottom Parking

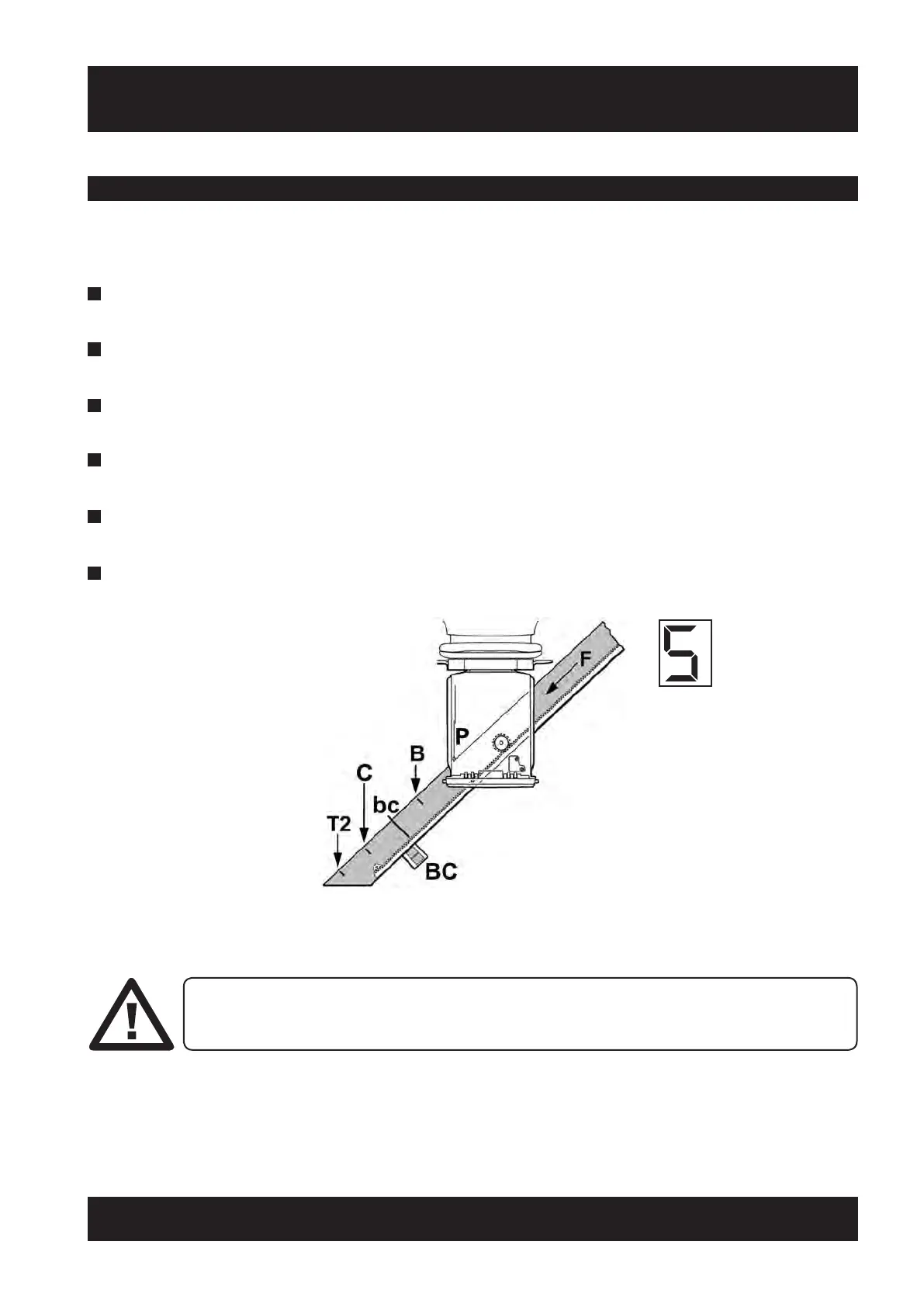

The illustration shows the lift moving down a sloping bottom section of rail at full speed (F). The principles are
the same for horizontal rail sections.
1 Move the lift down until the portcullis (P) is 180 mm from the bottom charge point (BC) reference point (bc)
then switch FULL SPEED to OFF. This reverts the lift to BEND SPEED (B).
2 Move the lift down until the portcullis is 150 mm past the bottom charge point then switch BEND SPEED
to OFF. This puts the lift into CREEP SPEED (C).
3 Move the lift down until it stops itself on the bottom final limit switch. This sets the Bottom Terminal
Limit (T2). This is approximately 10-15mm further down than the required terminal stop position.
4 Move the lift back up until it is clear of the bottom final limit switch and at the bottom charge point (BC).
Ensure both plungers are still on the charge point.
5 Unless instructed otherwise, switch START DELAY to ON – this will activate a timed delay before the lift
starts to move.
6 Switch PROGRAM MODE to OFF (into run mode). The standby symbol will be displayed.
PROGRAMMING IS NOW COMPLETE.
THE LIFT MUST NOW BE TESTED TO ENSURE THAT IT IS OPERATING CORRECTLY. THE
ELECTRICAL AND MECHANICAL INSTALLATION MUST BE TESTED IN ACCORDANCE WITH
LOCAL SPECIFICATIONS AND STANDARDS.
