Acorn 80 Installation Manual

13
ACORN 80 Installation Manual
SECTION 5
Rail Support Kit

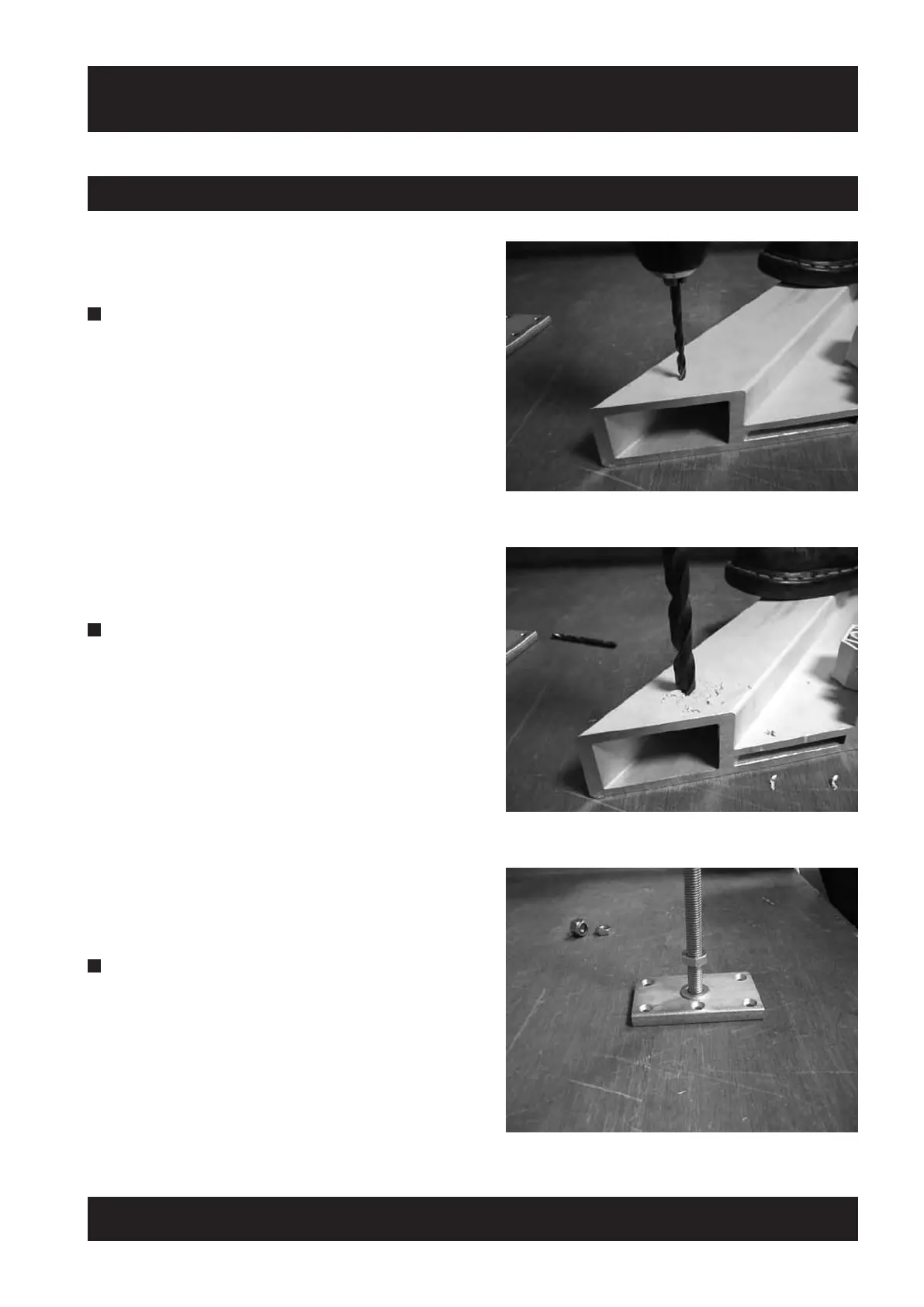

Drill a pilot hole in the rear of the top box section of
rail using a 5mm drill bit.
The hole must be as close to the top of the rail as
possible so as not to interfere with the travel of the
stairlift, but should not prevent fitting of the rail end
cap.
Drill the hole out to 13mm diameter to allow the
threaded studding to pass through.
Place one washer and M12 slim nut on one end of
the M12 studding and screw the studding into the
wall plate as shown.
5.2 Fitting Instructions

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
