Acorn 80 Installation Manual

24
ACORN 80 Installation Manual

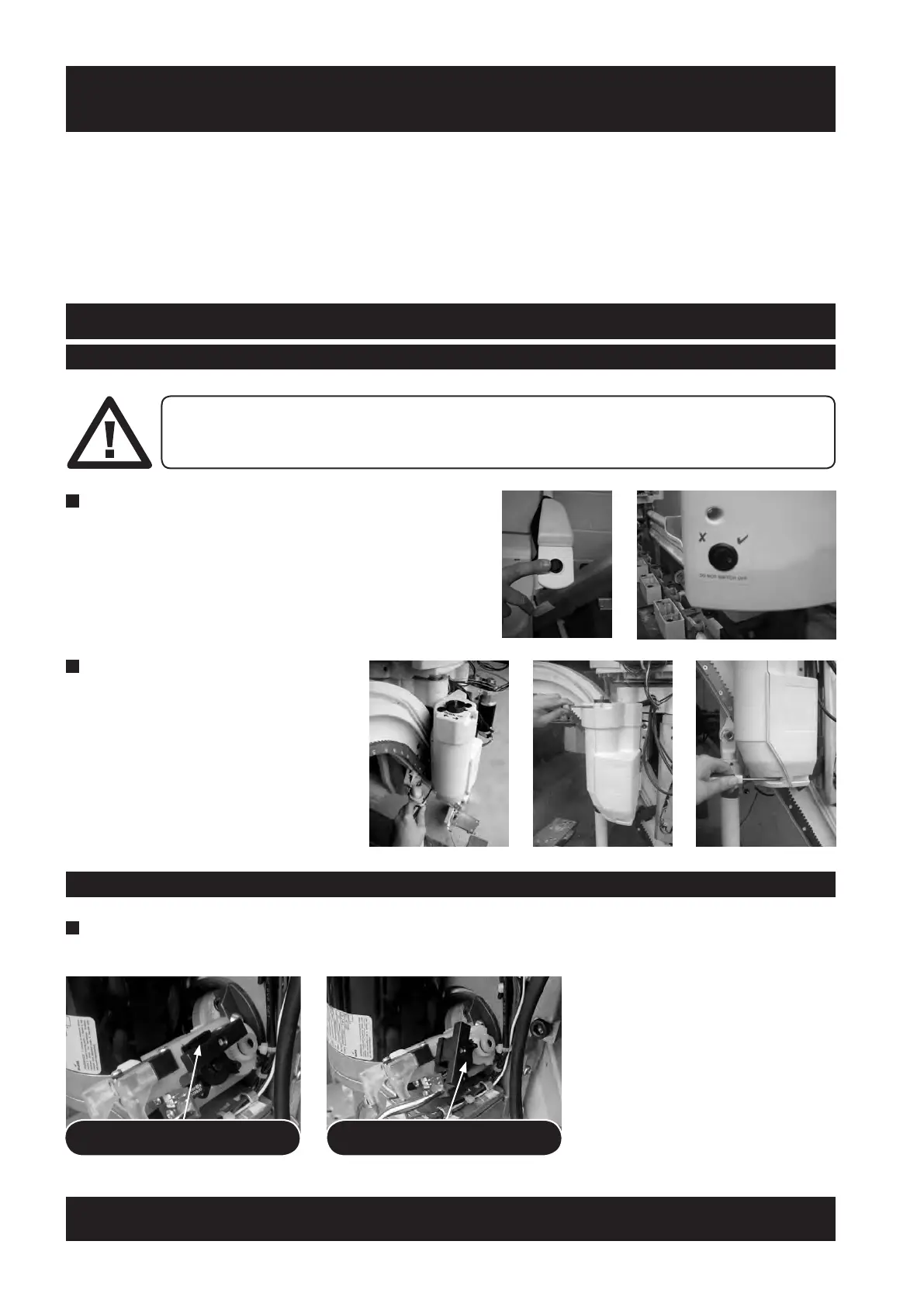

SECTION 9
OSG
1 Isolate the lift using the holding switch on
the seat arm/back of the seat cover.
2 Remove screws from Power Bogie
outer covers, and remove covers.
9.1 Over-speed Governor (OSG)
9.1.1 Testing the OSG
THIS TEST MUST BE CARRIED OUT DURING INSTALLATION AND SUBSEQUENT SERVICING.
9.1.2 Re-setting the OSG
1 Inspect OSG to see whether it has triggered/fired - regulator weight will be in an upright position as shown below
with the regulator teeth engaged with the Cam gear tooth and the OSG wedges will be up against the rail.
OSG NOT TRIGGERED
OSG Regulator weight in level position
OSG TRIGGERED
OSG Regulator weight in upright position
OVER-SPEED GOVERNOR

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
