ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components

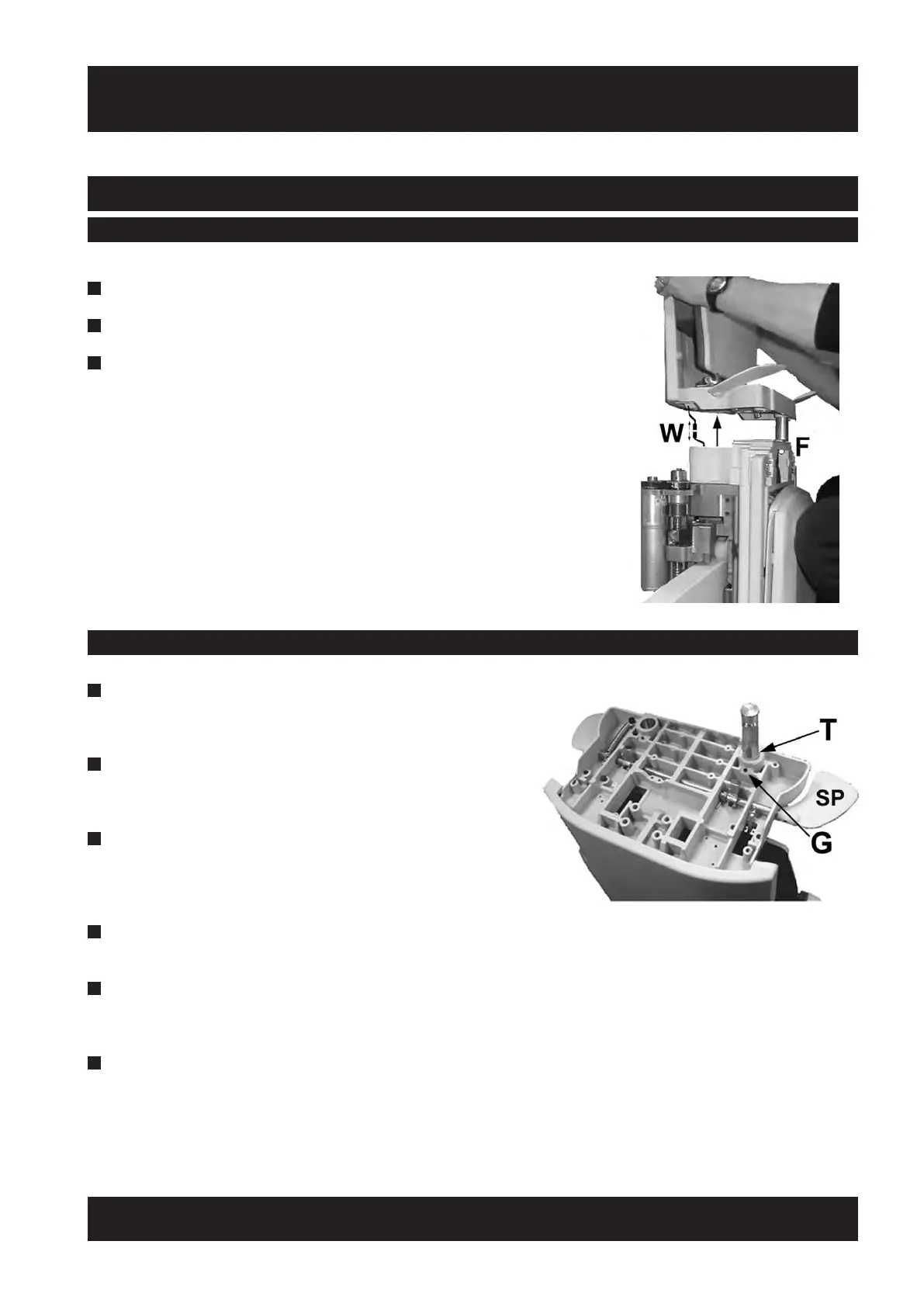

1 Disconnect the seat wiring (W) to the PCB connector.
2 Pull the seat out of the frame (F).
3 Leave any seat spacers in position.
7.2 Seat
7.2.1 Removal
1 Apply the recommended grease to the swivel pin
– see Appendix 4.
2 Place the thrust washer (T) over the swivel pin.
(Only applies to power swivel).
3 Position the seat square with the main frame and locate
the swivel pin into its bearing bush, ensuring the thrust
washer is located, where applicable.
4 Hold paddle arms down and push the seat fully down into the frame (F).
5 Check the seat swivel locking mechanism operates correctly,
using the swivel paddles (SP).
6 Connect the seat wiring (W) to the PCB connector.
7.2.2 Refitting A Seat

Acorn 80 Specifications

General

Safety Features	seatbelt
Speed	0.15 m/s
Seat Type	Padded
Footrest	Flip-up
Foldable	Yes
Color Options	Beige
Power Supply	Battery powered (2 x 12V sealed lead acid batteries)
