30
ACORN 80 Maintenance & Service Manual
SECTION 7
Dismantling Components

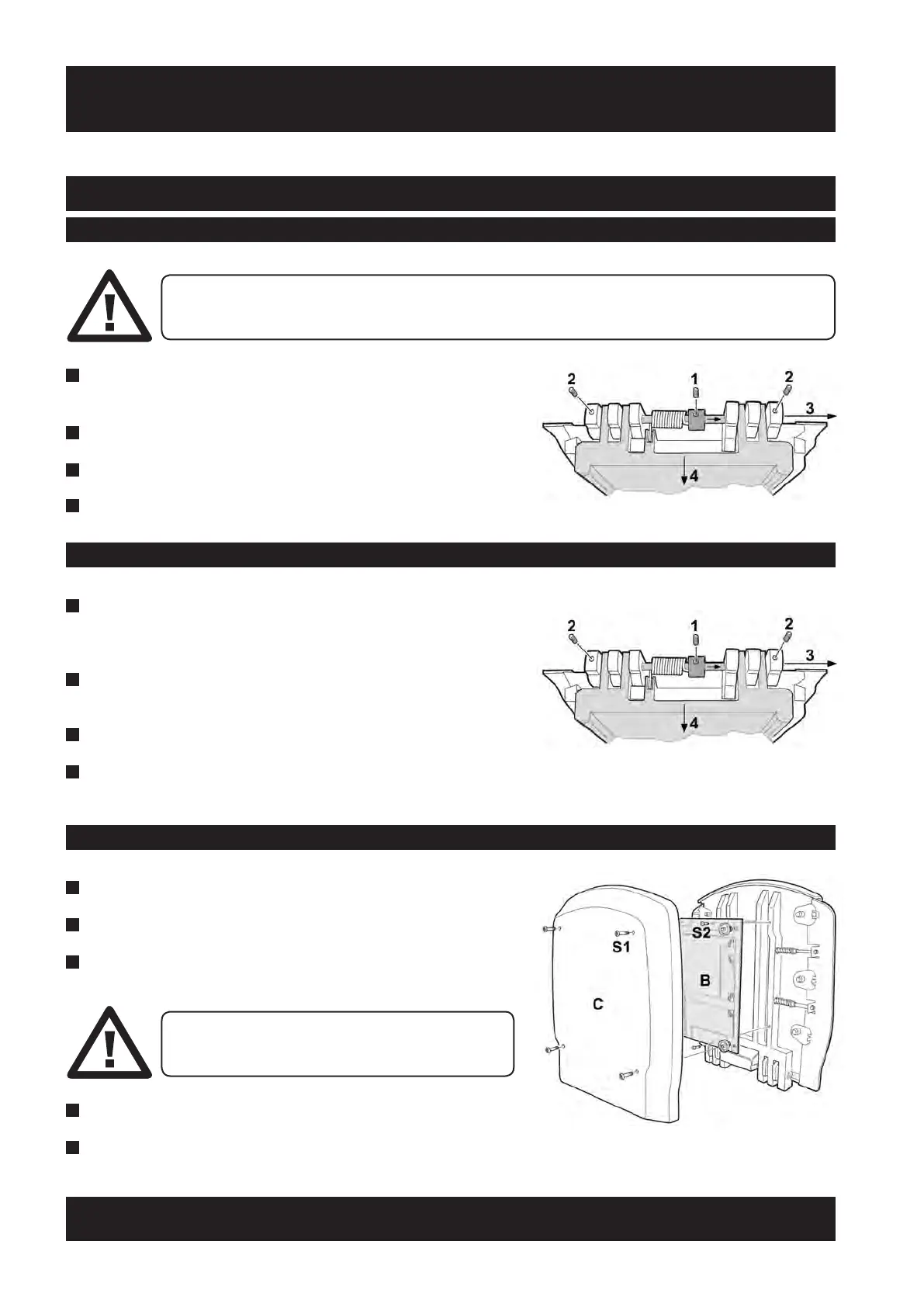

7.3 Footrest
7.3.1 Removal
1 Remove the centre grub screw (1) from the spring retaining
collar turn the collar to release the spring tension.
2 Loosen the two outer swivel pin grub screws (2).
3 Pull out the hinge pin and remove the spring and its retaining collar.
4 Remove the footrest.
7.3.2 Replacement
7.3.3 Footrest PSE Board Replacement
1 Fit footrest into the hinge brackets. Insert the hinge pin
through the hinge brackets with spring and spring
retaining collar in position.
2 Tighten the two outer grub screws (2) on to the flat of the
shaft to lock the hinge pin into position.
3 Engage the spring retaining collar onto the spring.
4 Turn the retaining collar to apply spring tension and screw the
grub screw (1) on to the flat of the shaft to lock it into position.
1
Unscrew the four screws (S1) and remove the bottom cover (C).
2 Disconnect the footrest board (B) from the main PCB.
3 Unscrew top 2 screws, loosen the bottom 2 screws (S2)
and remove the board.
4 Fit a replacement board and secure with the four screws.
5 Reconnect the board to the main PCB connection marked FOOTREST.
THE BOARD IS NOT REPAIRABLE ON SITE AND
MUST BE RENEWED AS A COMPLETE UNIT.
TAKE CARE WHEN RELEASING THE SPRING RETAINING COLLAR, WHICH IS HELD
UNDER TENSION.
