ACORN CONTROLS / ACORNCONTROLVALVES.COM / 1.800.488.8999
17
Apply power to the cabinet and turn on the power switch inside the BASyC™ control cabinet.
When power is applied, the green status LED on the control module and the power LED on the I/O module
will light up. After 10-20 seconds, the amber, Beat LED on the Control module (power) will light up,
indicating the system is OK. If there are network connections and trafc, the primary and secondary LED’s will
ash indicating this also. The Beat LED will ash at 50/50 on/off duty cycle when the controller is functioning
properly. If it does not, contact Acorn technical support for assistance. The I/O module status LED will
next illuminate after another 10-20 seconds. After all these LED’s light as expected it will take another 5-10
minutes to boot, load software and begin normal operation. The rst indicator of this is that the D1 LED will
light up indicating the controller and software are working together properly. At this point any combination
of LED’s on the I/O module may or may not light up based on the conditions sensed by the software. D1
should always be on and if it is not, contact Acorn technical support for assistance.
If the Acorn BASyC™ is factory pre-congured, please skip ahead to either the Web Browser Access or the
LCD Access Sections. If your system is not precongured and you’re not intending to utilize the web browser
capabilities of BASyC™, skip ahead to LCD Access and Conguration.

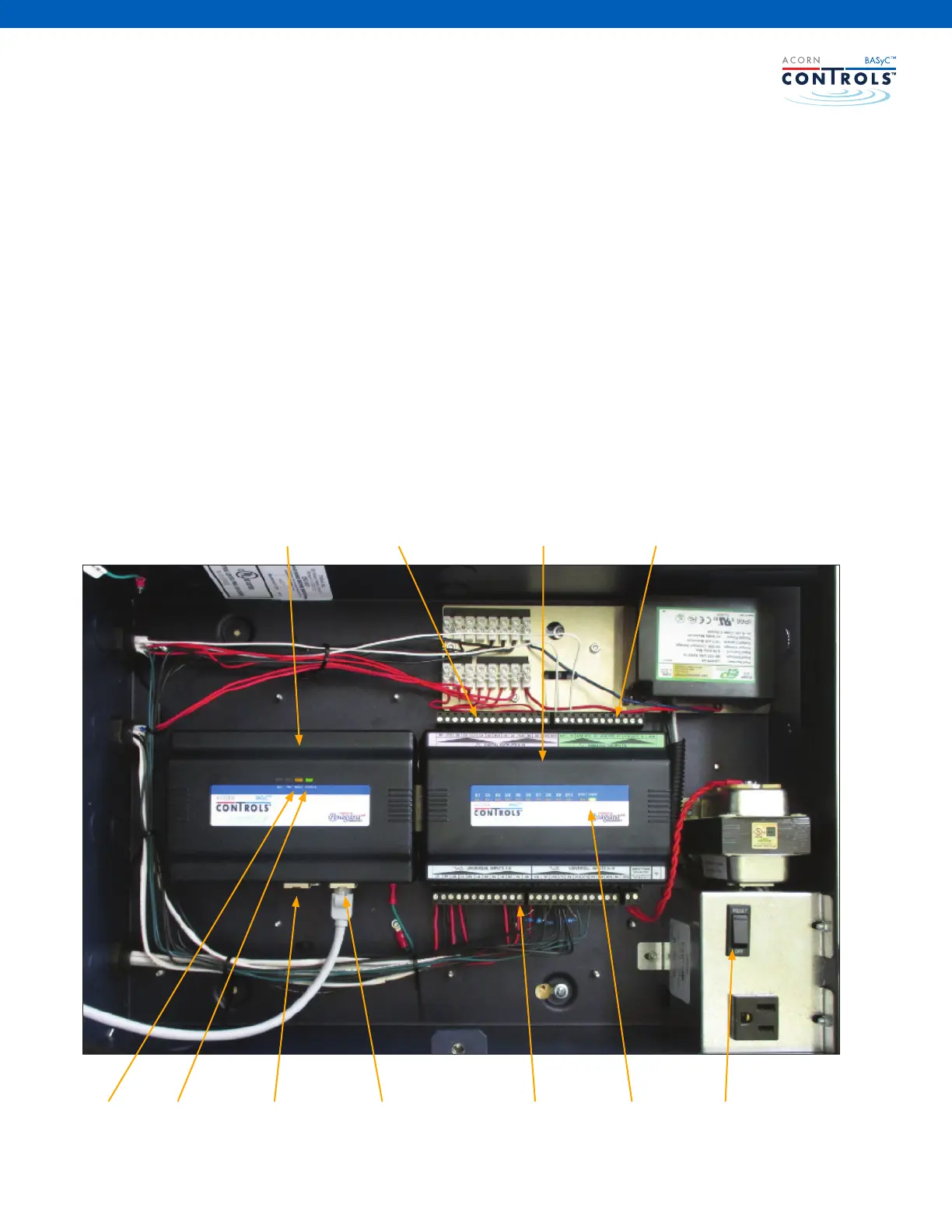

Power SwitchPower LED
Analog Outputs
Universal Inputs
I/O Module
Primary Ethernet
Adapter
Digital Inputs
Status LED Secondary
Ethernet Adapter
Control Module
Beat LED
