Acrel ADL400 User Manual

- 7 -
8.1
按键功能说明
Key function description
表 4 按键功能说明
Table 4 Key’s function description
按键图标
icon
按键名称
Name
按键功能
Function
电压电流类
向上键
Voltage and current, up
查看界面中查看电压电流
编程界面中上翻及闪烁移位
Check the voltage and current
Leftward and change flash in
programming menu
功率类
向下键
Power, down
查看界面中查看功率
编程界面中下翻及修改闪烁位
Check the power
Rightward and change the value
on flash
电能类
编程确定键
Energy, enter
查看界面中查看电能
长按 3S 进入/退出菜单
编程界面中短按确定保存设置
Check the energy
In/out programming menu
Save changes
8.2 显示界面 Display menu
上电后显示总有功电能。可通过三类查看键实现翻屏显示。各类显示界面顺序说明如下：
The meter will show the forward active energy after powering. The customers can change the
information showing by pressing the keys. The menu description is listed as below:

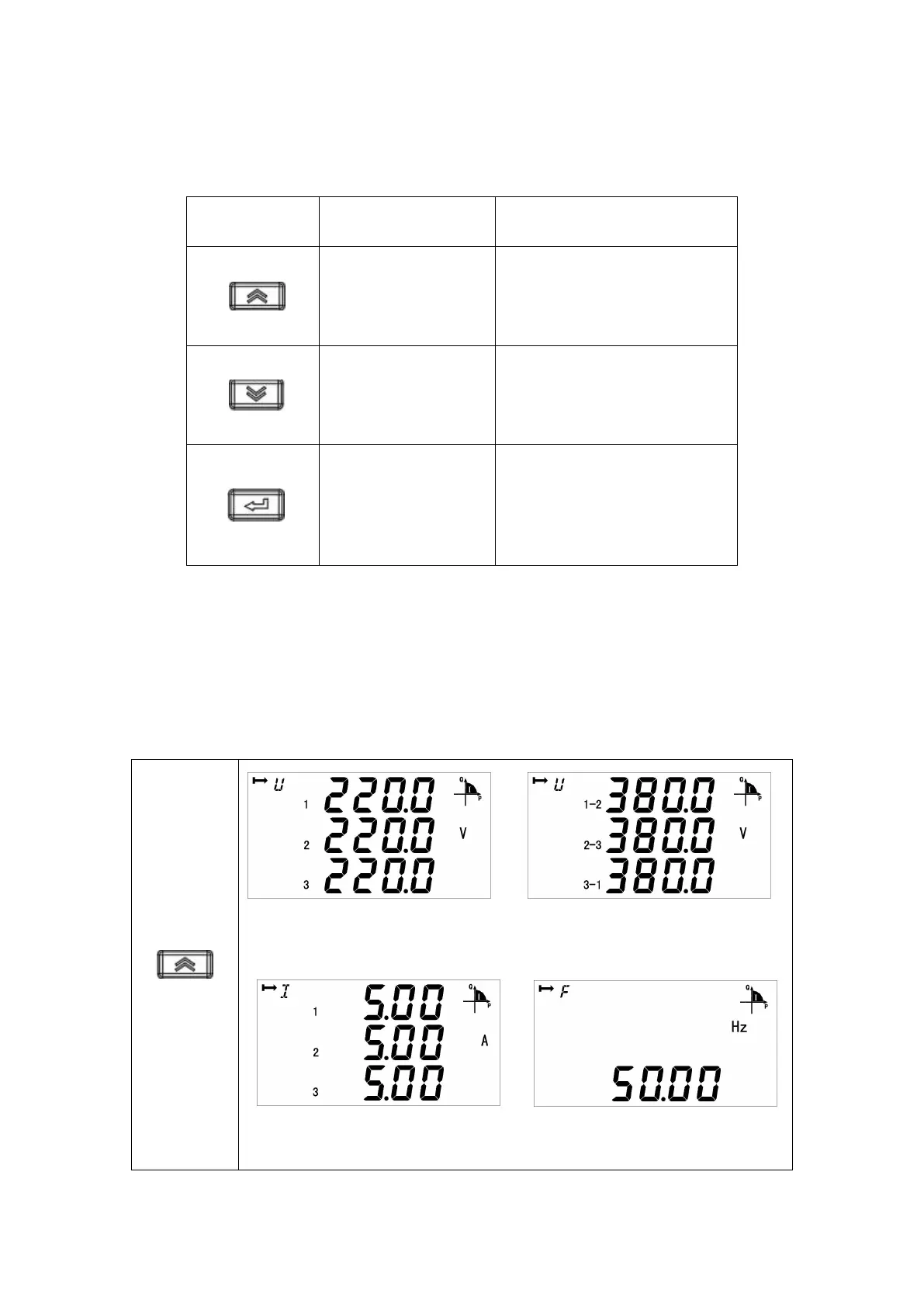

表 5 显示界面说明
Table 5 display descriptions
相电压 线电压
Three-phase voltage Three phase line voltage
电流 频率
Three-phase Current Frequency
