- 5 -
Fig2 Three phase four lines connect via CT

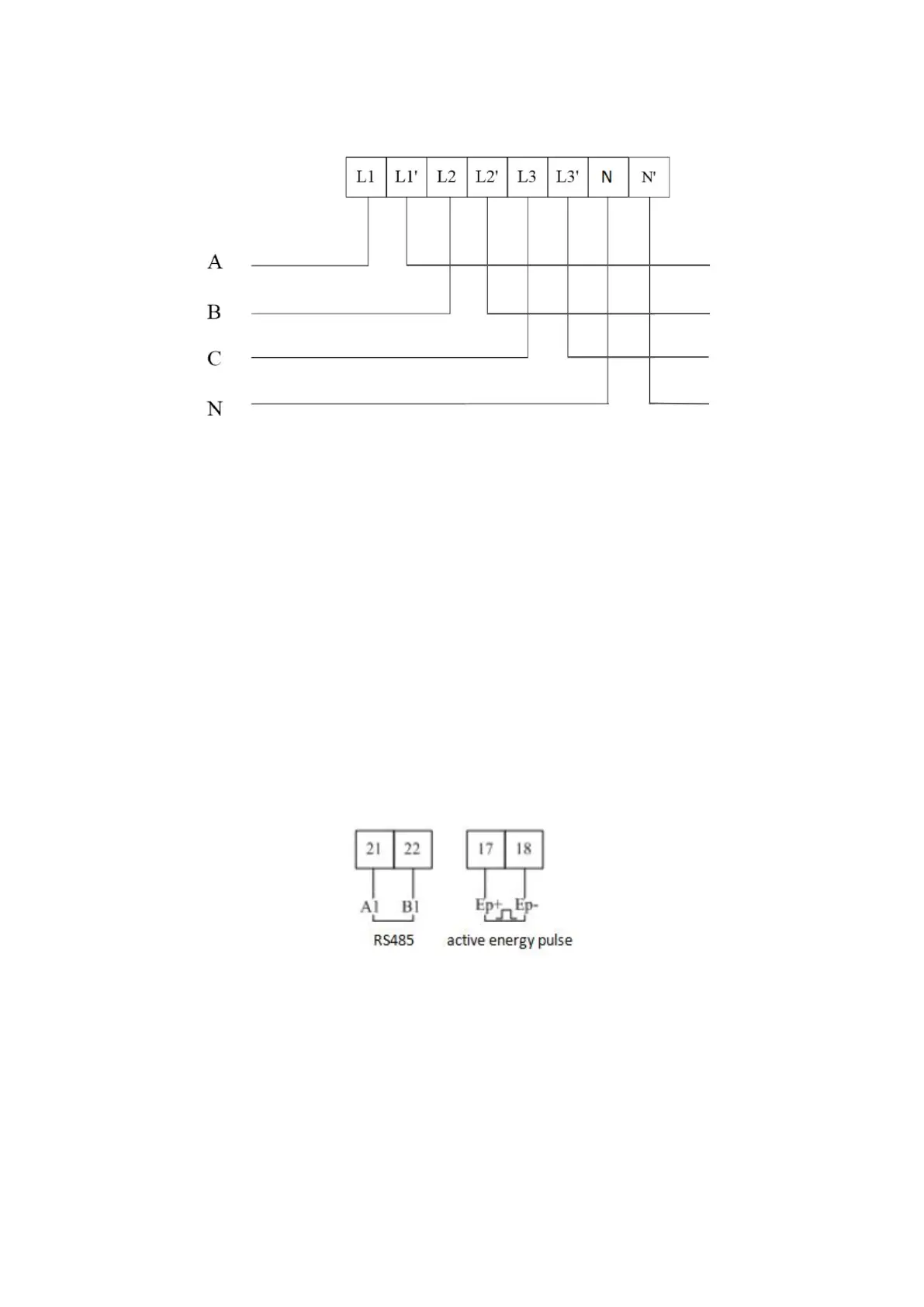

图 3 三相四线直接接入
Fig 3 Three phase four lines direct connect
注：
1. 标准 35mm 导轨条安装（无需维护、修理、调整）；
2. 根据 2014/32/EU 指令，仪表拟安装在机械环境“M1”中，冲击和振动的重要性较低；
3. 根据 2014/32/EU 指令，仪表拟安装在电磁环境“E2”中。
Note：
1.Installation of standard 35mm guide rail ( No maintenance,repair or adjustment intended )
2.The meter is intended to be installed in a Mechanical Environment‘M1’, with Shock and
Vibrations of low significance, as per 2014/32/EU Directive.
3.The meter is intended to be installed in Electromagnetic Environment ‘ E2 ’ , as per
2014/32/EU Directive.
6.2
通讯、脉冲端子接线示意图
6.2 Wiring diagram of communication and pulse terminals
图 4 通讯、脉冲接线
Fig 4 Communication, pulse connection
7
主要功能特点
Function description
7.1
测量功能
Measurement
能测量全电力参数,包括 U、I、P、Q、S、PF、F、31 次分次谐波及总谐波含量。
It can measure the electrical parameter,include U、I、P、Q、S、PF、F、1~31th harmonic。
