22

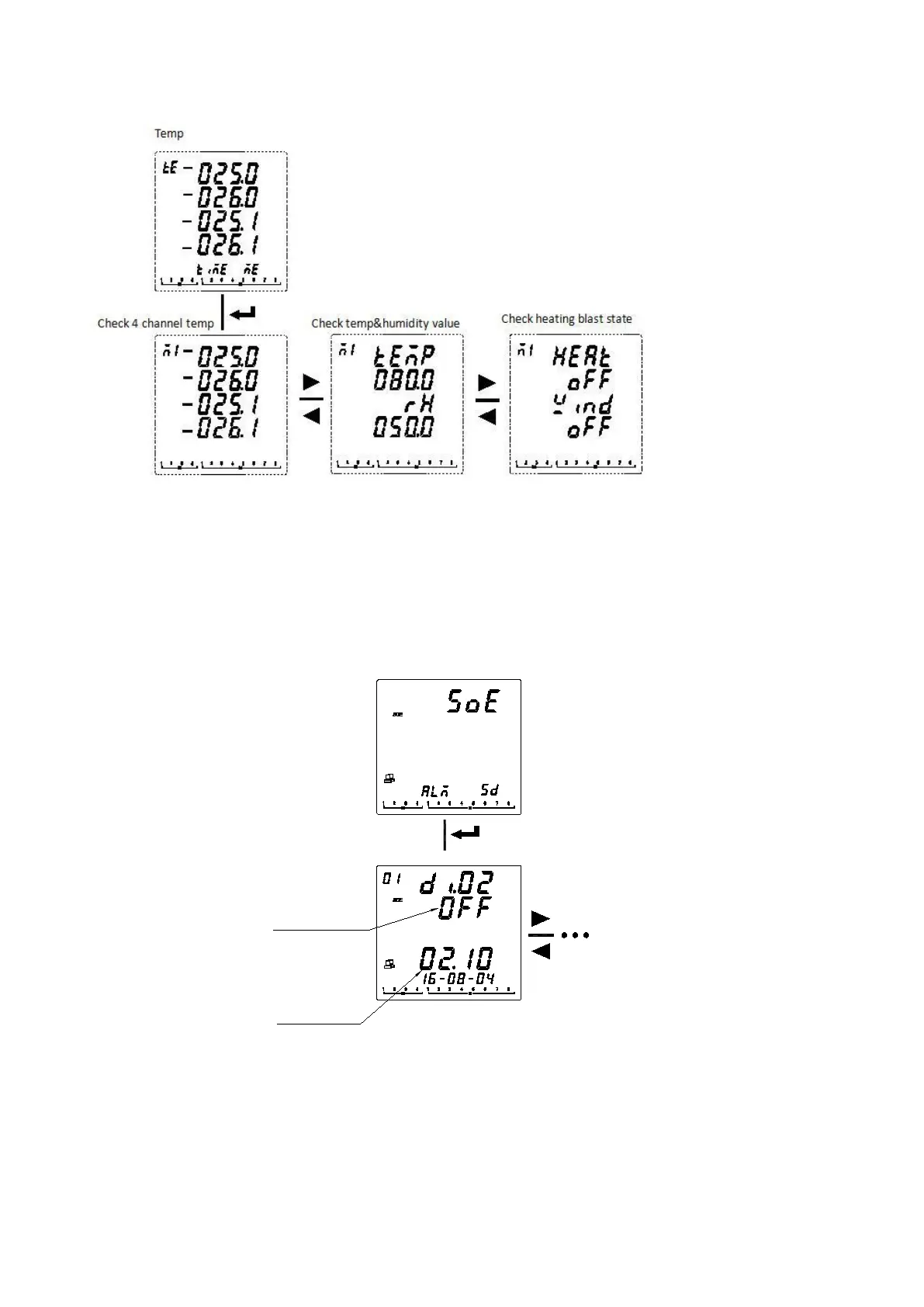

View event record (SOE): When the DI/DO status is changed, event records can be generated. The main body can store up to 128
event records.If you purchased an expansion module (including a TF card), all event log data will be automatically synchronized to the
TF card for storage.
Note: The TF card cannot record all more than 16 alarm records that were simultaneously generated within 2 seconds.
Event records
The last 1 event record
di2 becomes an opem node
Time of occurrence
is 16-8-4 2:10
Other 15 event records
See the TF card data record: After power off, remove the TF card and use a card reader or other device to plug it into the computer
for reading.
The data log files included in the TF card are: Alarm (Alarm data), Energy (Timed recording energy data), Harmonic
(Harmonic data), Maintain (Basic parameter data), Record (Timed recording electrical parameter data), SOE ( Event log data),
