34

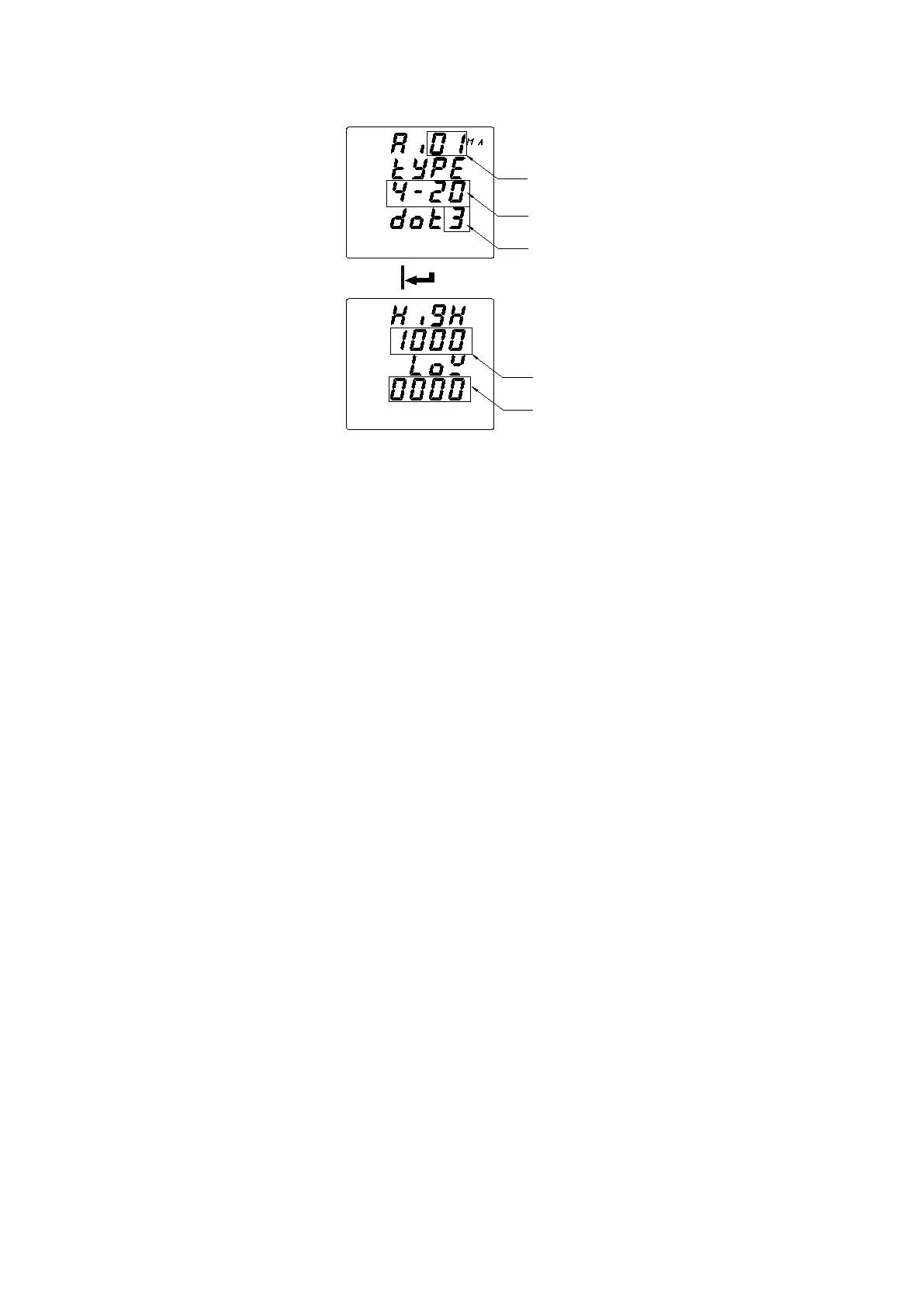

Ai number
Decimal point
Signal type
High point
Low point
7.5.11 Analog output setting (Valid with analog module)
1. Press ◀▶ until Aio is selected and press the Enter key.
2. Press
◀▶
until Ao is selected and press the Enter key.
3. Press ◀▶ until the Ao channel to be modified is selected and press the Enter key.
4. Select the output type and press the Enter key.
5. Select the output corresponding signal (see Table 3) and press the Enter key.
6. Set the actual value of high point of the output corresponding to the signal and press the Enter key.
7. Set the actual value of low point of the output corresponding to the signal and press the Enter key.
8. Output offset, as a percentage of the reference value of 16mA (current output) or 4V (voltage output) and press the Enter key.
9. Press the SET button to return.
