12

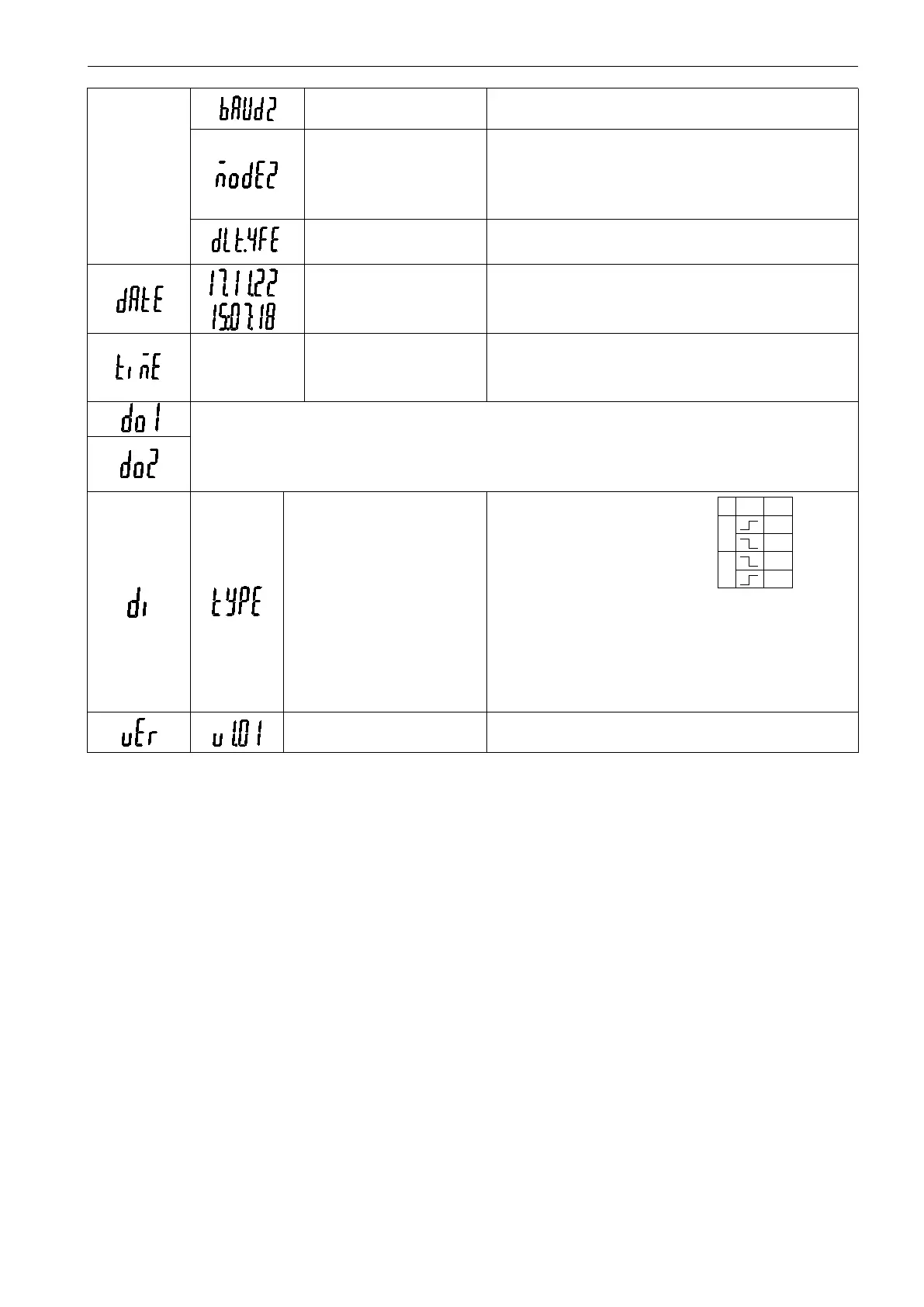

红外通讯波特率
Infrared communication baud rate
红外通信模式
(
无校验
,2
位停止位
,
奇校验
,
偶校验
)
Infrared communication mode
(No parity, 2 stop bits, odd parity, even parity)
回送 645 报文增加前导符 FE：0 个,4 个
Add the FE headers of sent back 645 message to: 0, 4
年月日，数字闪烁即表示被选中可设置
Year, month, day, when the number is flashing, it
means that it is selected and can be set
时分秒，数字闪烁即表示被选中可设置
Hour, minute, second, when the number is flashing, it
means that it is selected and can be set
开关量输出设置
（详见 6.1）
Switch output setting
(See 6.1 for details)
0
为常闭，
1
为常开
（带
DI
联动报警时有效，详见
6.1
）
Tens place indicates DI1 and ones place indicates
DI2. 0 is normally closed and 1 is normally open
(effective with DI linkage alarm. See 6.1 for details)
Note: The query cannot be queried in the event log by
menu. It can only be read via communication.
6.1
开关量输出设置
Switch output setting
仪表开关量输出采用继电器输出，有两种控制
方式：
1
、报警方式（“
SEL
”选择不为零）；
2
、总线
控制方式（“SEL”选择为“0. do”,此时“dLy”设
置为 0 为电平输出方式，设置非零为脉冲方式动作
后延时设置的时间自动断开）
“SEL”中设置 DO 输出类型，“0. do”表示为
通信控制（此时如果
DLY
设置为
0
输出为电平方式，
否则为脉冲方式，如果
DLY
设置为
2
，吸合后
0.02
秒自动断开），其他为报警控制（见下表）
“dLy”为报警延时（报警用时推荐不设置为
0 防止干扰误动。）
“
bAnd
”为不动作带设置
The switch output of the meter adopts relay
output. There are two control modes: 1. Alarm mode
("SEL" selection is not zero); 2. Bus control mode
("SEL" is selected as "0. do". When “dLy” is set to 0,
it is the level output mode. Setting non-zero as the
pulse mode will automatically disconnect the delay
setting time.
“SEL” sets the DO output type. “0. do” means
communication control. (If DLY is set to 0, the output
is in level mode , otherwise it is in pulse mode. If
DLY is set to 2, automatic shutdown will take 0.02
seconds after pull in. Open), same as alarm control
(see the following table)
"dLy" is the alarm delay time (it is not
recommended to set to 0 during the alarm to prevent
interference error.)
"BAnd" is set for the non action band
