2.0 Adding PIN and/or Proximity Readers

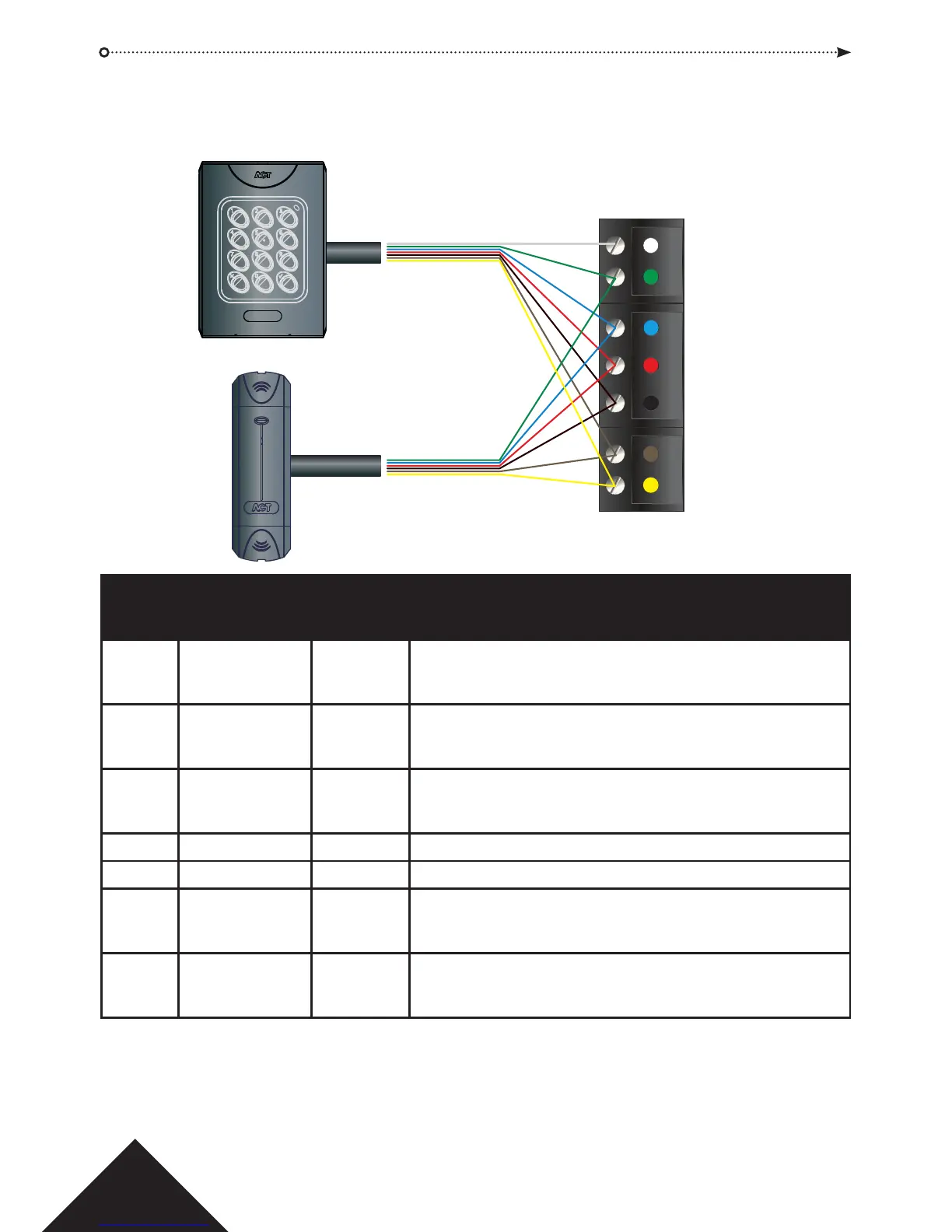

Wiring of entry & exit readers.
For Wiegand Entry Readers wire D0 to DATA Pin on ACTpro Controller and D1 to CLOCK
pin on ACTpro Controller.
For Wiegand Exit readers wire the D0 of the exit reader to SENSE pin on ACTpro controller
and D1 to CLOCK pin on ACTpro Controller.
SENSE
CLOCK
DATA
+12V
OV
RED
GREEN
Entry Reader
Exit Reader
(Do not connect to SENSE)
ACTpro 1050e
Pin & Proximity Reader
ACTpro 1030e
Proximity Reader
Reader Recommended Controller Signal information
Terminal wiring colour input Pin
Block
SENSE White SENSE For Entry readers connect the reader SENSE cable or
terminal to the SENSE input pin.
For Exit readers, do not use this input.
CLOCK Green CLOCK This is the clock or strobe signal input on the ACTpro
1520e/1500e. Connect the reader CLOCK cable or terminal
on the reader to CLOCK input pin.
DATA Blue DATA This is the Data input.
Connect the reader DATA cable or terminal on the reader
to DATA input pin.
+12V Red +12V Positive +12V DC Supply voltage for the reader.
0V Black 0V 0V Supply Voltage for the reader.
RED Brown RED Red LED control output from the ACTpro 1520e/1500e.
Connect the reader brown cable to the terminal marked
RED on the controller.
GREEN Yellow GREEN Green LED control output from the ACTpro 1520e/1500e.
Connect the reader green cable or terminal marked
GREEN on the ACTpro controller.
