ACT ACTSMART PRODUCT RANGE User Manual

A
B
SHIELD
Network cable is single shielded twisted pair, Belden 9501 or similar.
Total cable length
maximum 1.4km
12DC
0V
N/O
COMM
N/C
B
A
Aux I/O 2
Aux I/O 1
Tamper
0 1 2 3 4 5 6 7 8 9
B ATC H:
P RODUC T:
S E R IAL N UMB ER :
01X X-1
AC TS mart R E V1.3
00X XX X
+12V
0V
OMRON
5A 250VAC
5A 30VDC
OMRON
1A 125VAC 1A 30VDC
12V DC
0V
N/O
COMM
N/C
B
A
Aux I/O 2
Aux I/O 1
Tamper
0 1 2 3 4 5 6 7 8 9
B ATC H:
P RODUC T:
S E R IAL N UMB ER :
01X X-1
AC TS mart R E V1.3
00X XX X
+12V
0V
DC Power
Supply Unit
SHIELDS
B
A
B
SHIELD
A
B
A
B
Note:
When networking the ACTSmart units,
common the 0V of each ACTSmart to avoid
ground loop issues.
DC Power
Supply Unit
SC
HRAC
K
12V = DC
5A/250V ~AC
SC
H
R
A
C
K
12V = DC
5A/250V ~AC
Programmable
Input
Programmable
Input

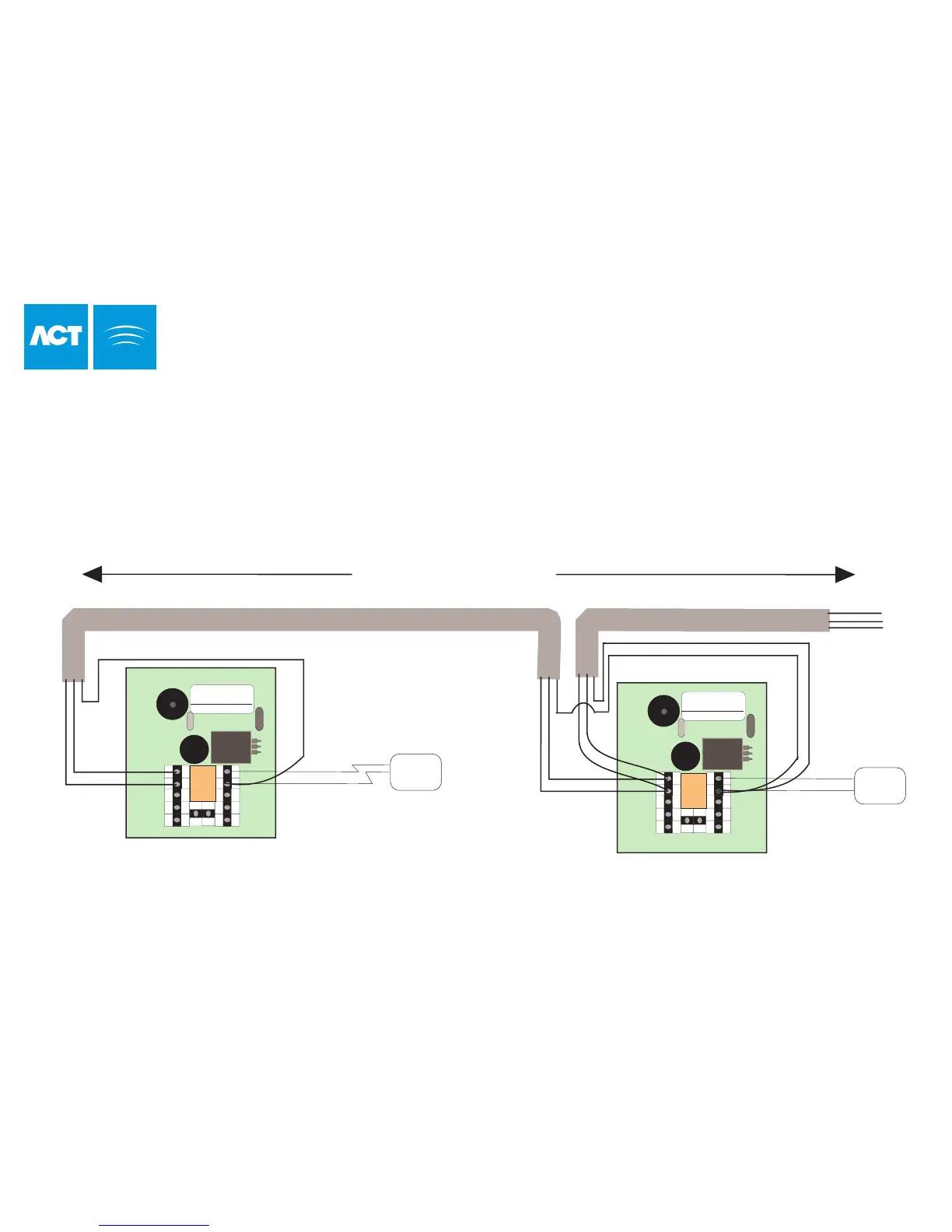

ACTSmart Network Installation Diagram
Do NOT use AC Power Supply.
MUST be 12V or 24V DC.
Continue daisy-chain to
remaining ACTSmart units
on the network (maximum 8).
-17-
-17-
