ACT ACTSMART PRODUCT RANGE - Surface Mount Unit Installation

The surface mount collar is mounted on the
wall using the fixing kit supplied in the box.

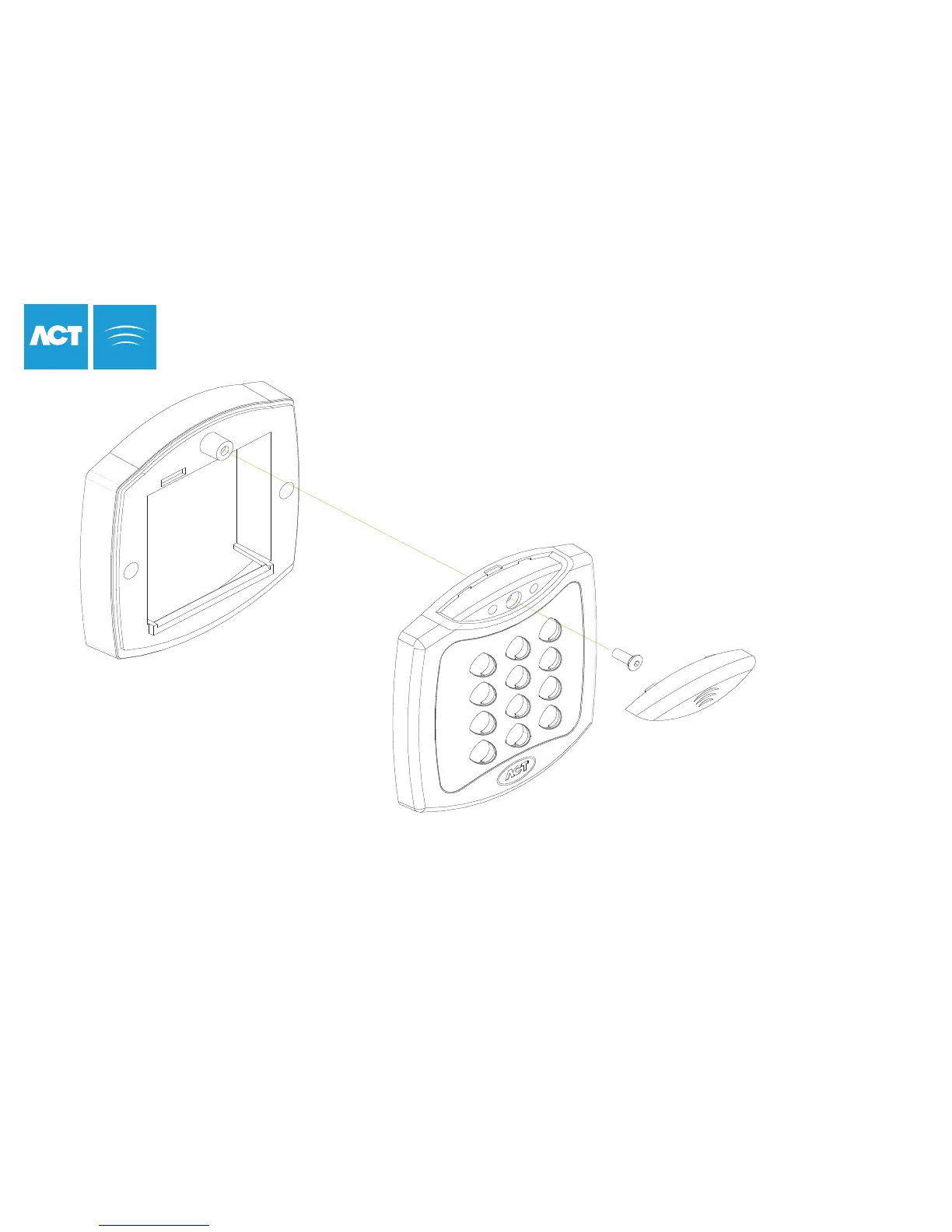

Place the Reader / Keypad onto the surface mount collar and clip down
into place. Use the security screw supplied to attach the unit to the
surface mount collar.
Security screw supplied with the unit.
Place the cap onto the unit and
push firmly into place.
- 19 -
ACTSmart Mounting Instructions for Surface Mount Unit
Magnet in surface mount collar, which keeps
tamper switch closed inside ACTSmart.
