Outdoor/GSE Charger front Labyrinth
9. With no battery connected to the charger, energize the source circuit and verify proper AC
voltage at the line side of the charger switch. All line-to-line voltages should be within ± 10%
of rated values and matched within 10 VAC. De-energize the source circuit.
10. Verify that the source circuit is locked and tagged out. Reinstall the back cover on the charger,
securing it with the six mounting screws.
11. Energize the source circuit and verify the charge screen started as shown below.

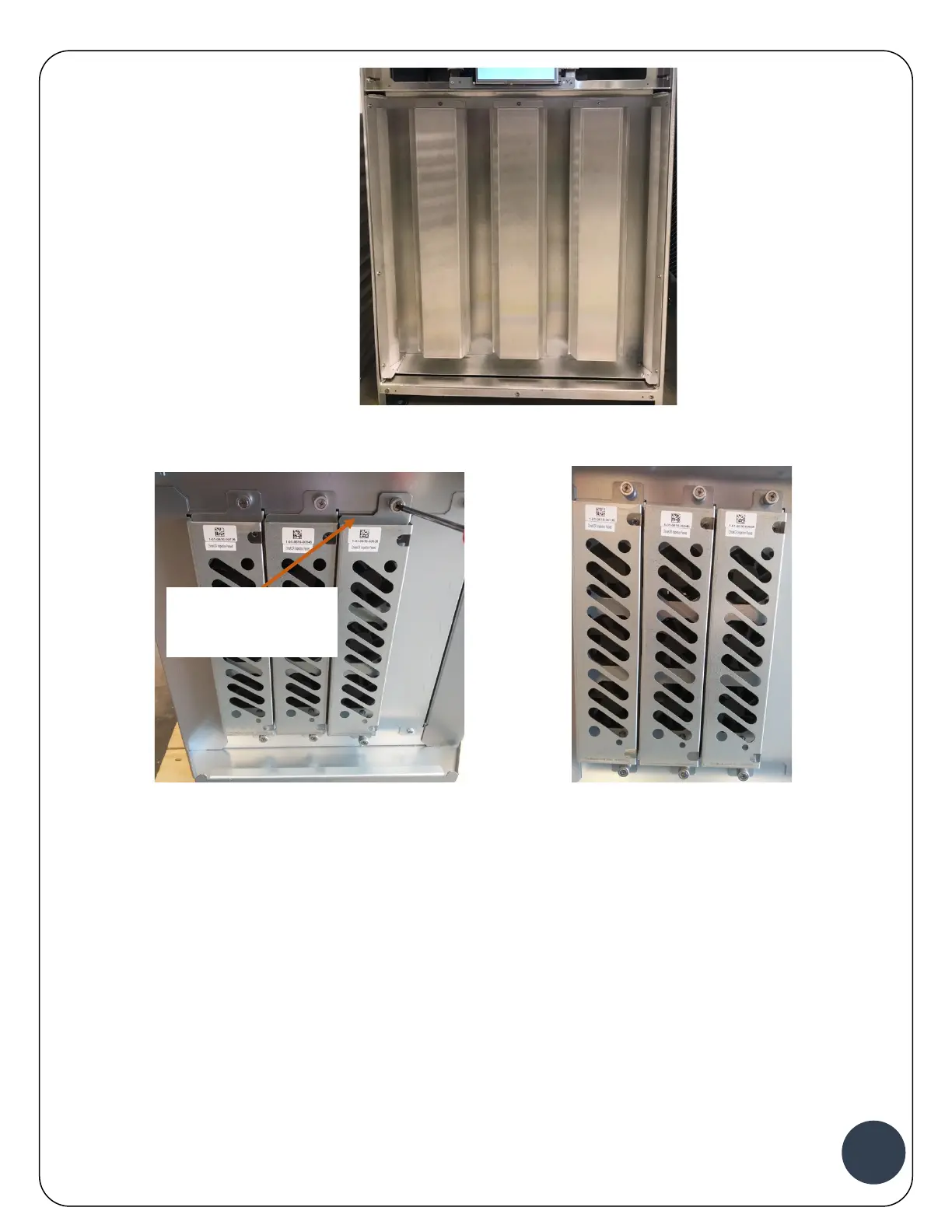

The Power Module is
not completely
flushed on the chassis
To Next Page
