710-00002.5

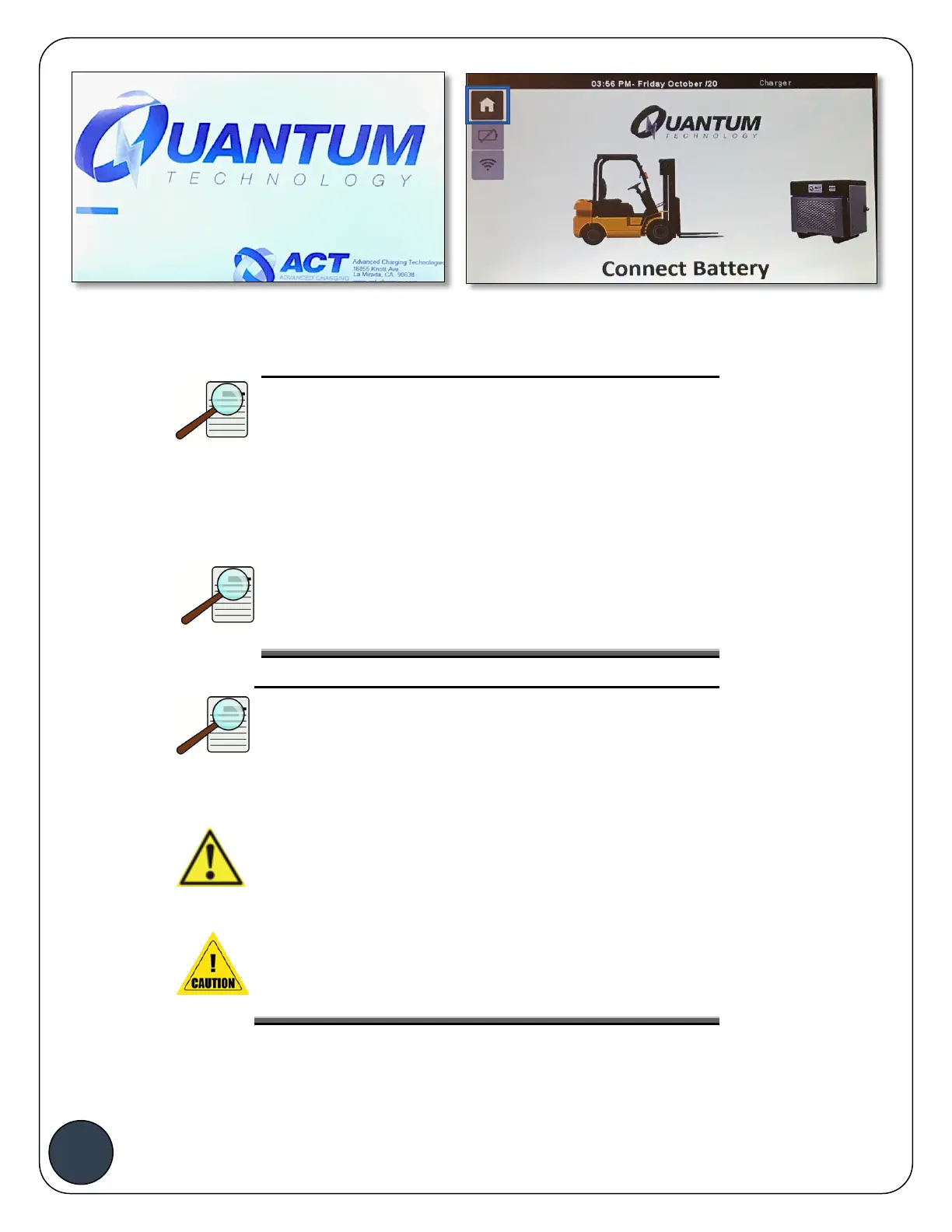

12. Ensure that the LCD on the charger is calibrated by clicking the home button and verify you
can navigate the menu.
NOTE:
Outdoor/GSE Chargers do not have a touch screen.
NOTE:
If the LCD is not responding to touch, please follow the
procedure “
710-00027 Quantum Charger LCD Screen
Calibration Procedure
”.
NOTE:
The LCD can be calibrated by holding
down
the Stop
Button on the charger for
10 seconds or more
, then
release. This will initiate the calibration procedure.
NOTE:
•Use THHN or similar type, 600V, suitable for conduit use.
•Use copper conductors only.
•All connections must comply with all local codes and
ordinances
DANGER:
RISK OF ELECTRIC SHOCK - After turning off AC power for
servicing, allow 5 minutes for the system to bleed down
before touching the AC connections.
CAUTION:
POTENTIAL SYSTEM DAMAGE – Disconnect the battery
from the charger before applying AC power. Use external
circuit breaker to turn on AC power.
THE CHARGER IS NOW READY FOR OPERATION
