011807-EN--B (2022-12_S617 S717F S900 S950 C50_IFU)
17 / 49

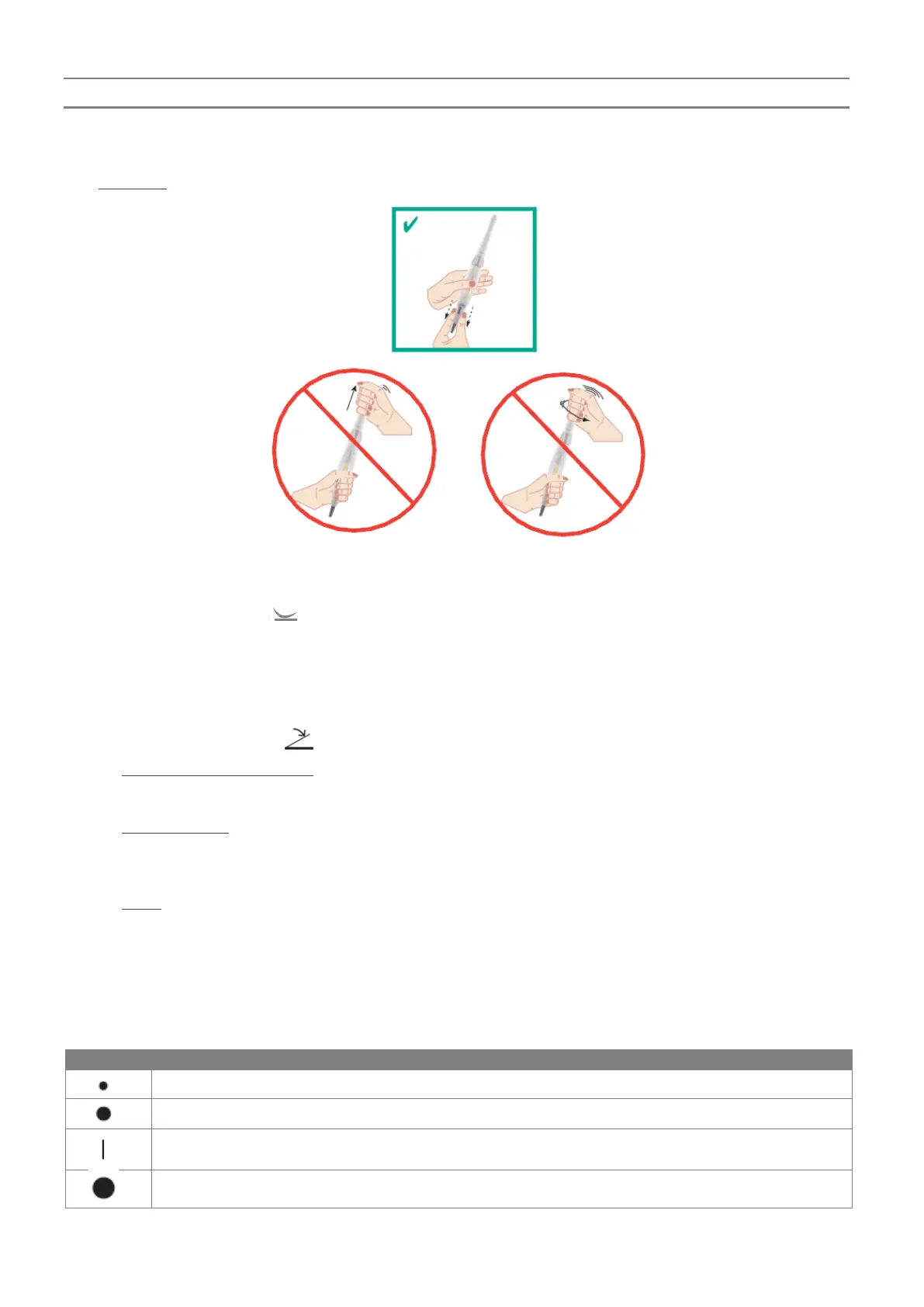

5 USE OF THE DEVICE
5.1 USE OF SOPRO 617, SOPRO 717FIRST, SOPROCARE AND SOPROLIFE INTRAORAL CAMERAS
WARNING:
5.1.1 IMAGE CAPTURE
Operation of SoproTouch image capture on camera
To capture an image, you have just to slightly touch SoproTouch as soon as the desired region of interest appears on the
screen. The image is automatically captured on the computer - only when used with ACTEON Imaging suite (AIS) (if another
imaging software is used, please refer to its Instructions for Use). During the capture, the video live stream flashes white,
confirming the image capture.
Operation of FOOTSWITCH image capture on camera
• By the built-in Docking Station: If you prefer using a footswitch rather than SoproTouch to capture an image, connect
the footswitch (optional) to the docking station and place the jumper on footswitch position. With this configuration,
SoproTouch is disable.
• By the computer: If you prefer using a footswitch rather than SoproTouch to capture an image, connect the footswitch
(optional) to the computer and configure it into your imaging software (please refer your imaging software manual).
With this configuration, SoproTouch is still functional. To disable the SoproTouch, please refer your imaging software
manual.
NOTE: When used with the medical device, the footswitch must comply with IEC 60601-1 standard and must be rated
IPX1 according to IEC 62368-1 standard.
5.1.2 FOCUS ADJUSTMENT ON SOPRO 717FIRST, SOPROCARE AND SOPROLIFE INTRAORAL CAMERAS ONLY
On the handpiece, there is a rotating ring used to focus from “0” to infinite. To simplify handling, we have pre-set four positions
corresponding to the main camera uses.
