Hardware Manual
13
Installation Procedures
Installation procedures vary depending on the desired mounting solution. Cables may be
connected first before mounting the camera or vice versa.
Below are the basic installation procedures when mounting the camera with PMAX-0324 Wall
Mount with access behind the wall. For detailed information and other mounting solutions, check
the website (http://www.acti.com/mountingselector).
NOTE: The following pictures are for reference only, actual camera and cable connections may
slightly vary.
Use the Safety Strap

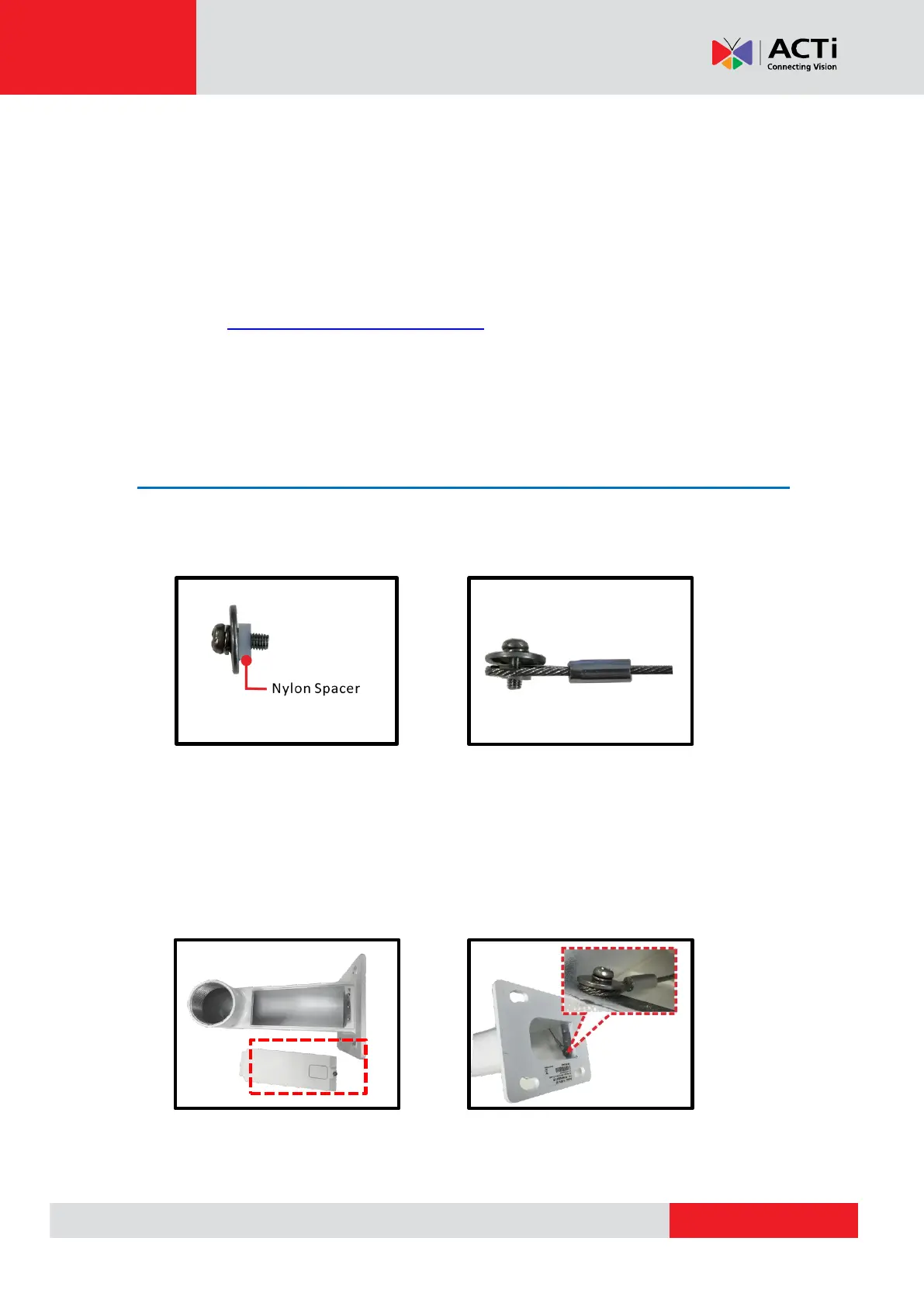

1. Insert the nylon spacer to M3x8 screw with spring washer-8 as
Fig.1. Fix the screw to the anti-drop chain as Fig.2.
(Fig.1)
(Fig.2)
2. Open the mounting plate (red frame in Fig.3) Screw the anti-drop
chain to the mini pendant mount and insert the chain through the
pendant as Fig.4. DO NOT fasten the mounting plate back to
pendant mount yet.
(Fig.3)
(Fig.4)
