ACTi A950 - Audio, Digital Input; Output and Serial Connection

www.acti.com
Hardware Manual
20
Audio, Digital Input / Output and Serial Connection

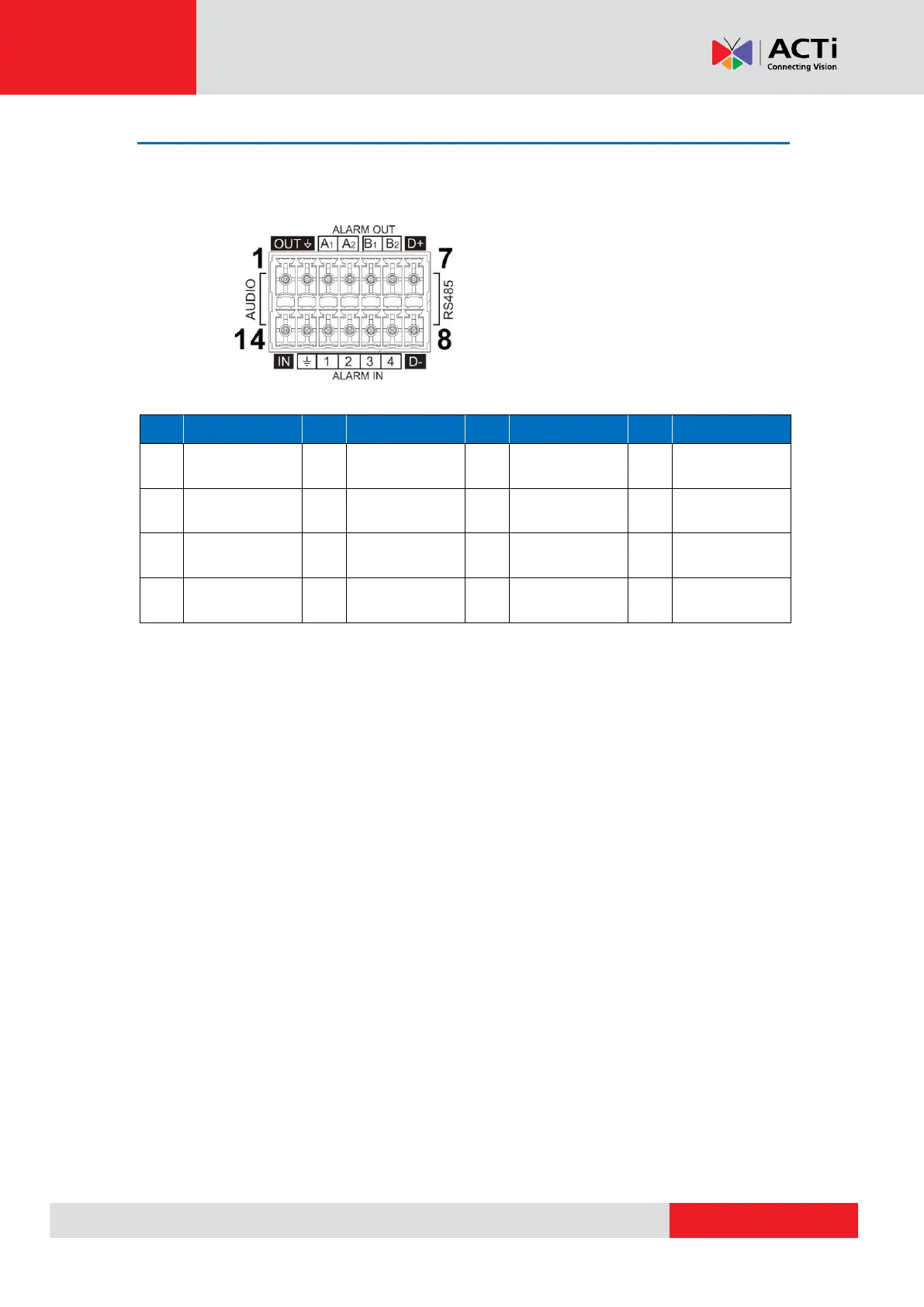

Please refer to the diagram and pin definition below for audio, digital input/output and serial
(RS-485) connection:
Pin
Definition
Pin
Definition
Pin
Definition
Pin
Definition
1
Audio Out
5
Alarm Out B1
9
Alarm In 4
13
GND (Alarm
I/O & RS-485)
2
GND
(Audio I/O)
6
Alarm Out B2
10
Alarm In 3
14
Audio In
3
Alarm Out A1
7
RS-485 D+
11
Alarm In 2
Def
4
Alarm Out A2
8
RS-485 D-
12
Alarm In 1
Dn
