ACTi A950 - Page 15

www.acti.com
Hardware Manual
15

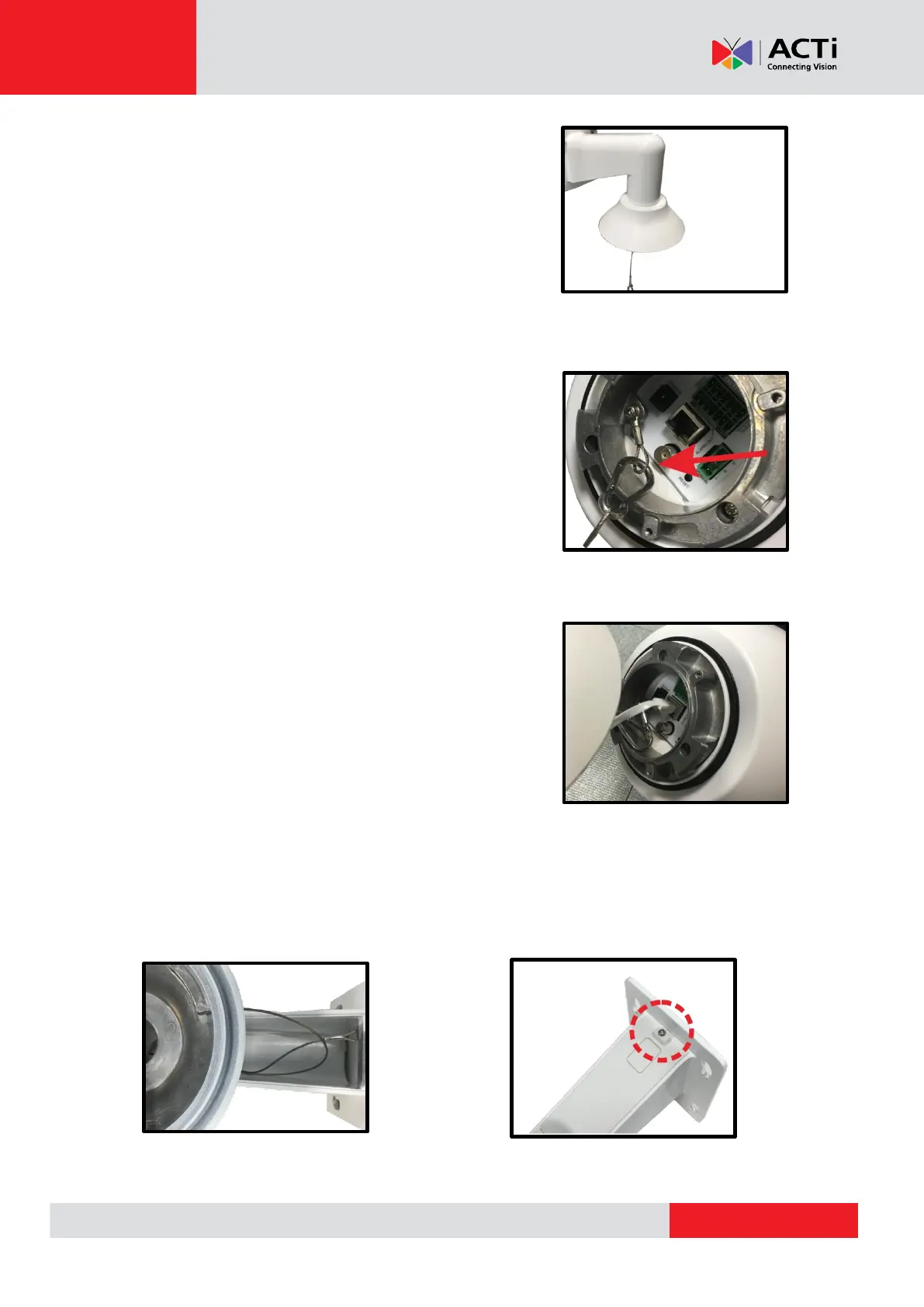

Then, thread the Ethernet cable and other cables
through the mounting kit and fix the mounting kit
to the pendant mount.
(Fig.6)
STEP 4
Hook up the anti-drop ring of the camera with the
anti-drop chain.
(Fig.7)
STEP 5
Connect the Ethernet cable to the RJ-45
connector of the camera and other connections
like power, alarm I/O and audio I/O connections,
please see Cable Connections for pin definition.
(Fig.8)
STEP 6
Slightly pull the anti-drop chain and other cables into the pendant tube. Then
screw the mounting plate back to the mini pendant mount.
(Fig.9)
(Fig.10)
