How to Use the Female Conduit Gland
This section describes how to waterproof the cable-out or “pigtail” of the camera using the
bundled female conduit gland and flexible conduit. This is the recommended solution if an
exterior-grade Ethernet cable is not available. The camera may or may not have to be installed
first before doing the cable connections (see related installation procedures for details).

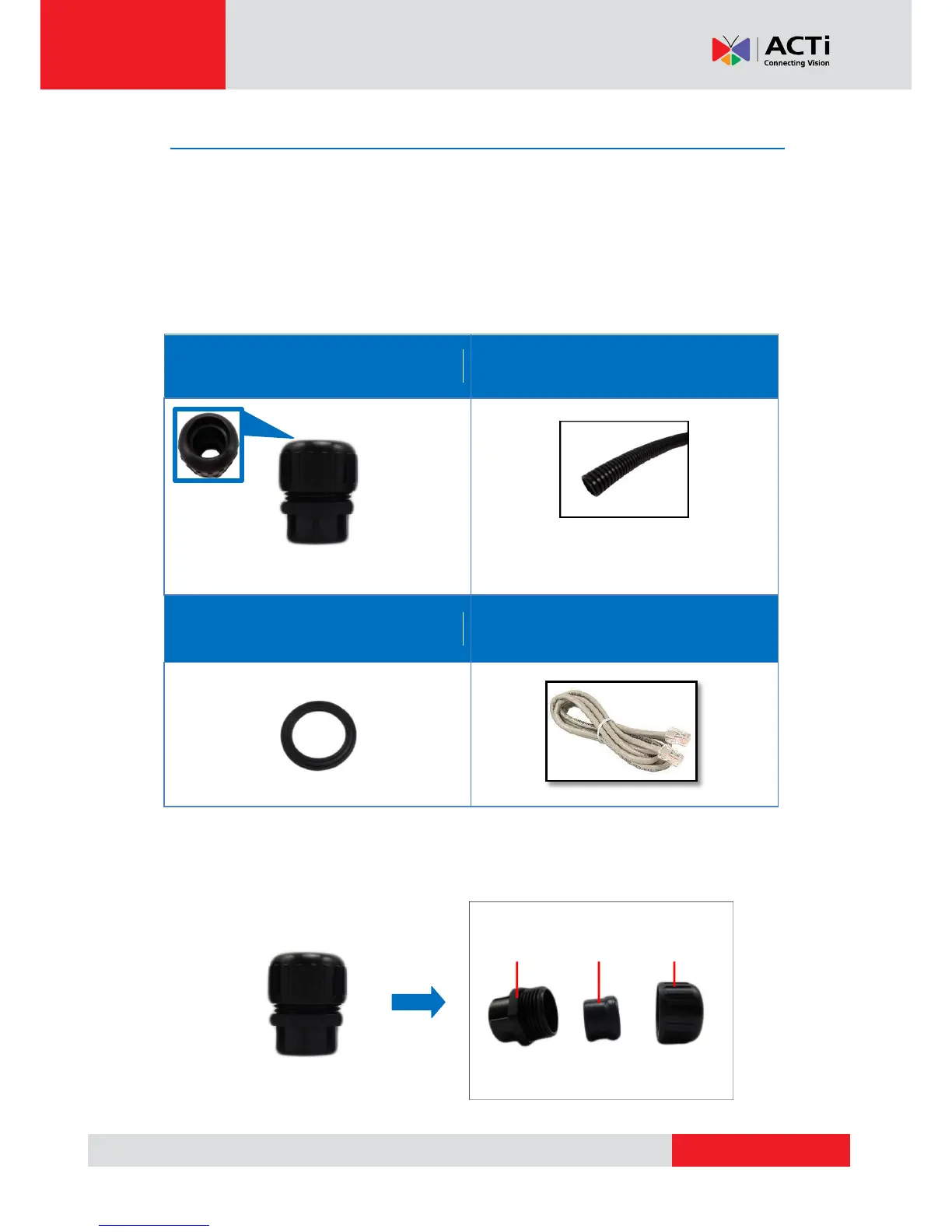

Before connection, prepare the following materials:
Female Conduit Gland
(included in the camera package)
Flexible Conduit
1/2" Trade size
(not included in the package)
NOTE: Not included in the package.
Washer
(included in the camera package)
Ethernet Cable
CAT 5 or CAT 6
(not included in the package)
Perform the following to waterproof the “pigtail” using the female conduit gland:
1. Disassemble the female conduit gland as shown below:
Cable Gland
Sealing
Nut
Clamping
Nut
