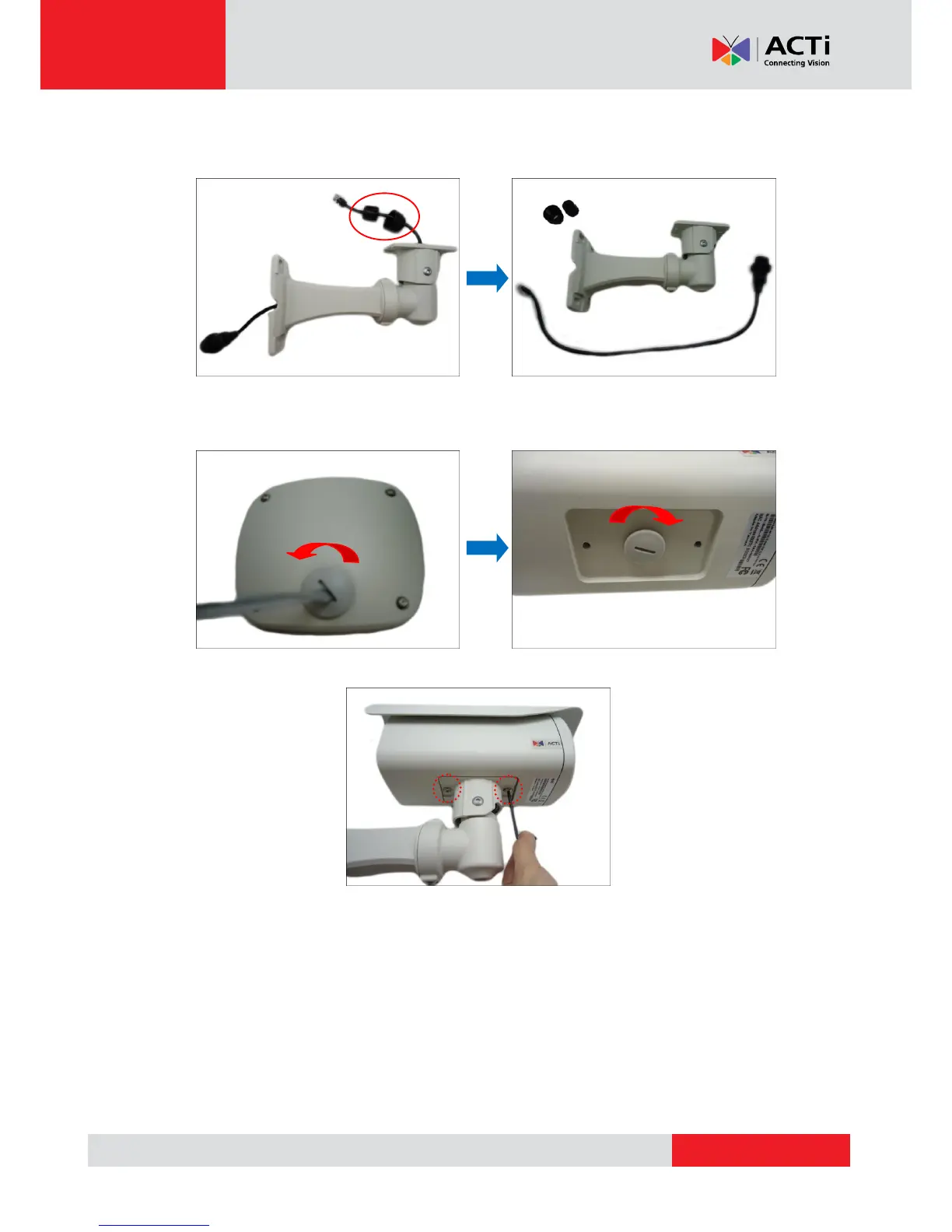

7. Remove the sealing insert and clamping nut from the cable, and then pull out the “pigtail”
from the bracket.
8. Using a coin or screwdriver, remove the cap from the back cover. Then attach the cap to
close the cable hole.
9. Attach the bracket to the camera.
10. Attach the back cover of the camera (as needed).
