ACTi E37 - Page 23

www.acti.com
Hardware Manual
23

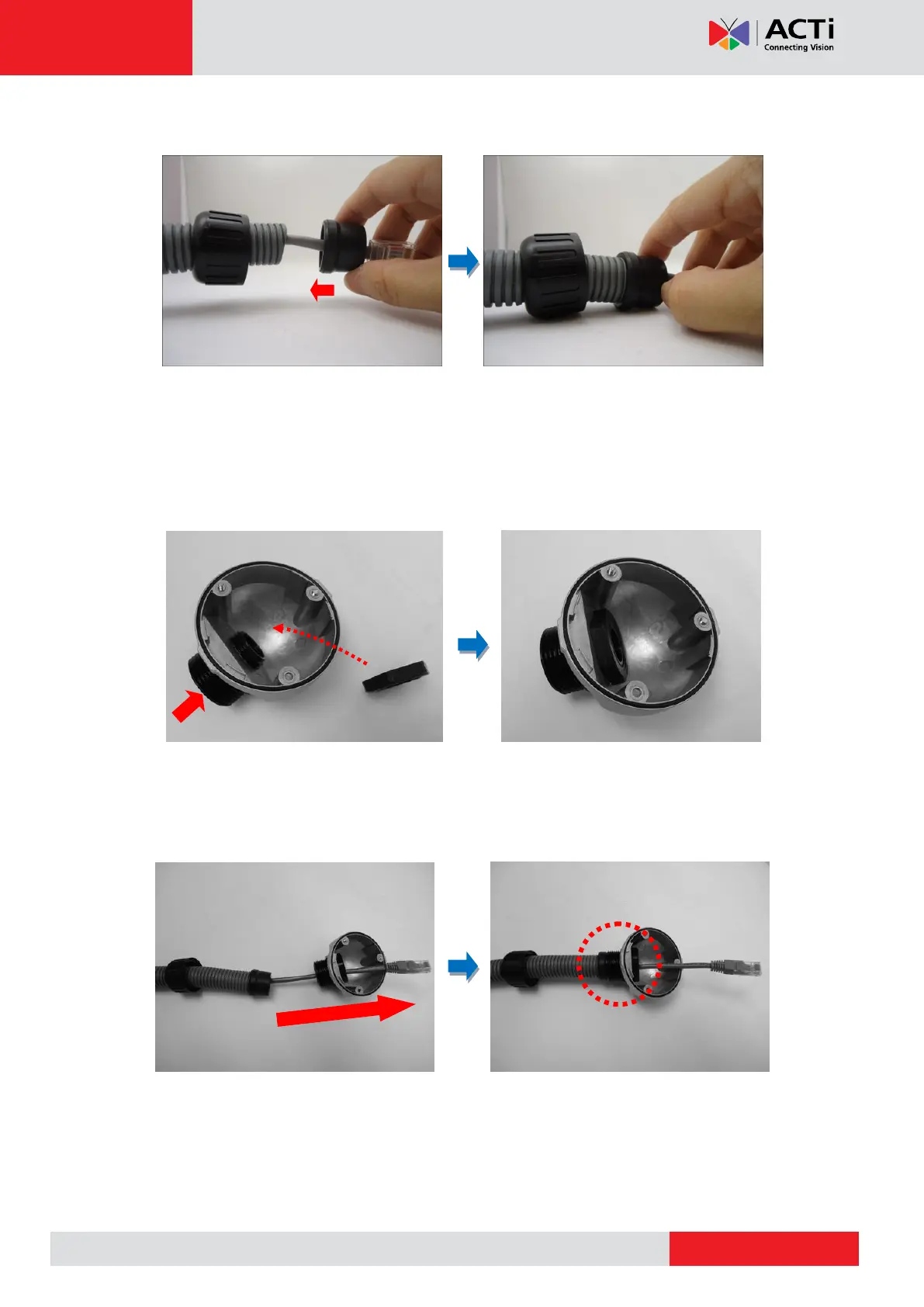

4. Insert the sealing insert and attach it at the end of the flex conduit.
Step 3: Install the Ethernet Cable
1. Insert the body (A) to the back cover and secure it with the lock nut (B).
2. Insert the Ethernet cable through the back cover and then align the sealing insert to the
gland body.
(A)
(B)
