ACTi E77 - Naked Cable Installation

www.acti.com
Hardware Manual
18
Waterproof Solution with Naked Cable
This section describes the procedures in using the bundled cable gland and an exterior-grade
Ethernet cable.

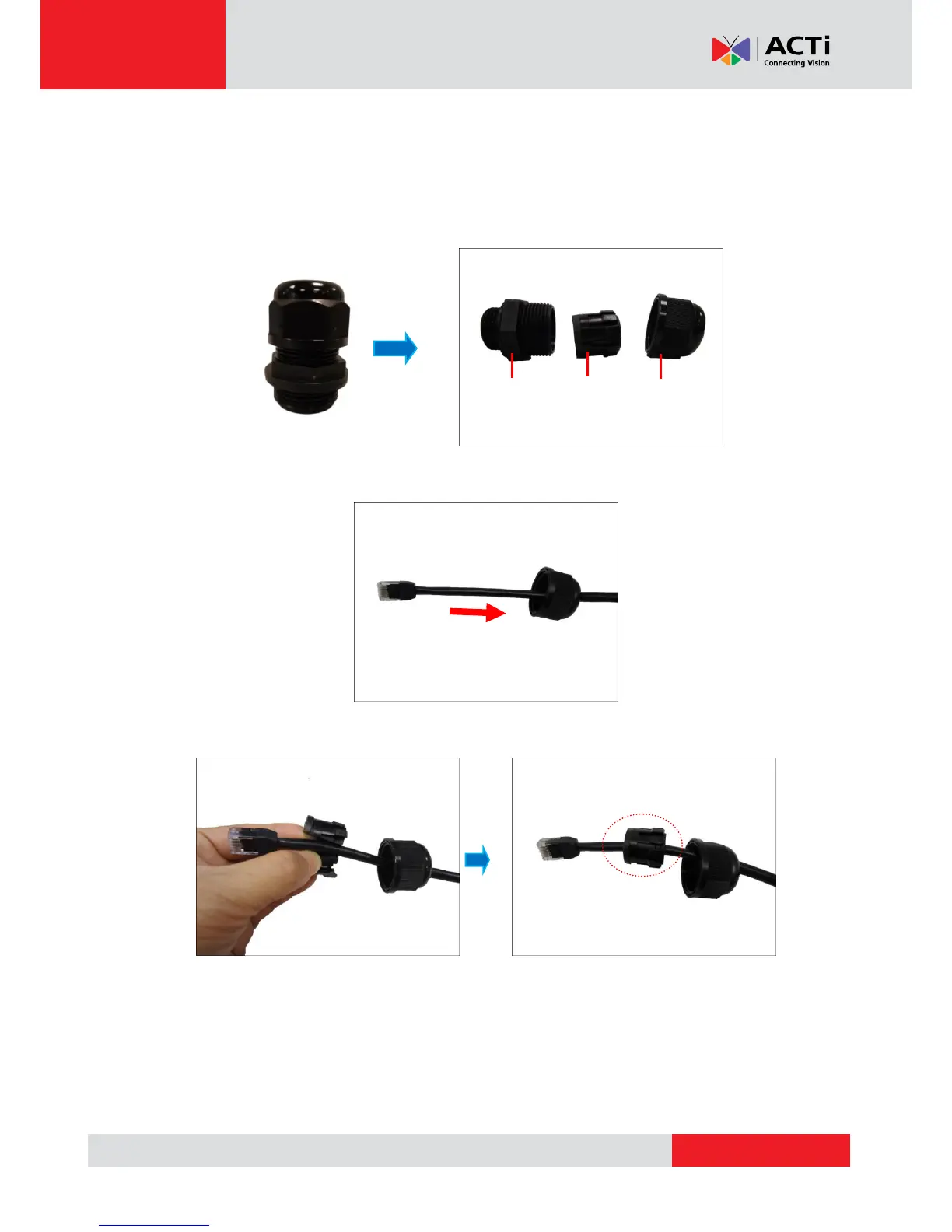

1. Disassemble the cable gland as shown below:
2. Insert the clamping nut into the Ethernet cable.
3. Insert the sealing insert with claw.
Body
(with Washer)
Sealing Insert
with Claw
Clamping
Nut
