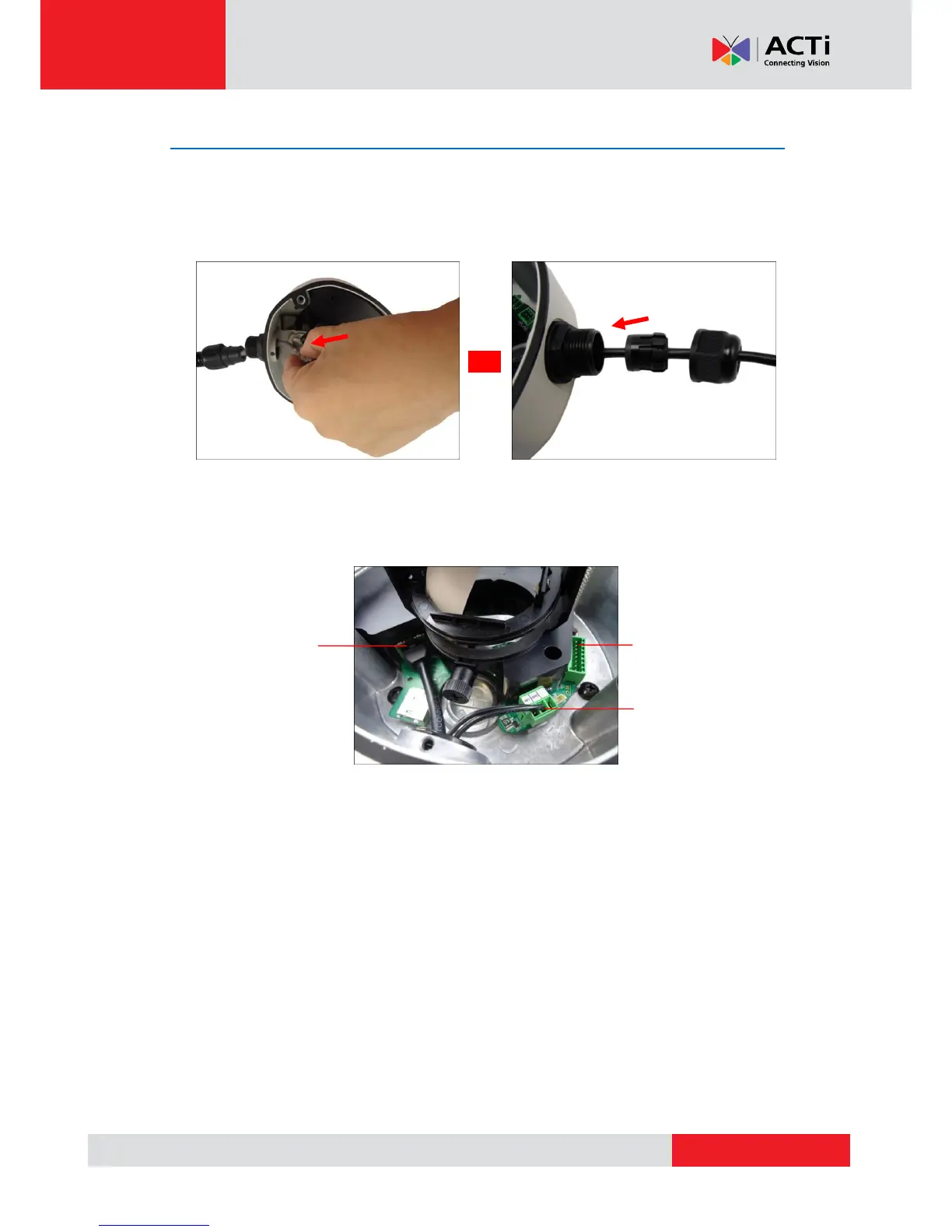

Step 5: Connect the Cable(s)
1. If the cables will be routed along the surface, pull the network cable and other cables (if
any) through the side conduit hole and attach the sealing insert and the clamping nut to the
gland body. If the cable passes through the surface, skip to step 2.
Using Flex Conduit Using Naked Cable
2. Connect the network cable to the Ethernet port and the other cables (if any) to their
corresponding connectors on the camera.
or
Ethernet Port
Digital Input / Output
(DI/DO) and Audio
Input / Output Connector
DC12V Power Connector
