How to Mount the Outdoor PTZ
Depending on the desired mounting solution, you may need to install the mounting solution first
before connecting the cables or the cables may be connected first before installing the mounting
solutions. Below are basic installation procedures, however for more detailed information,
download the Installation Guide from the website (http://www.acti.com/mountingselector).
NOTE: The following pictures are for reference only, actual camera and cable connections may
vary depending on model.
1. Install the Mounting Solution
Check the Installation Guide for detailed information.

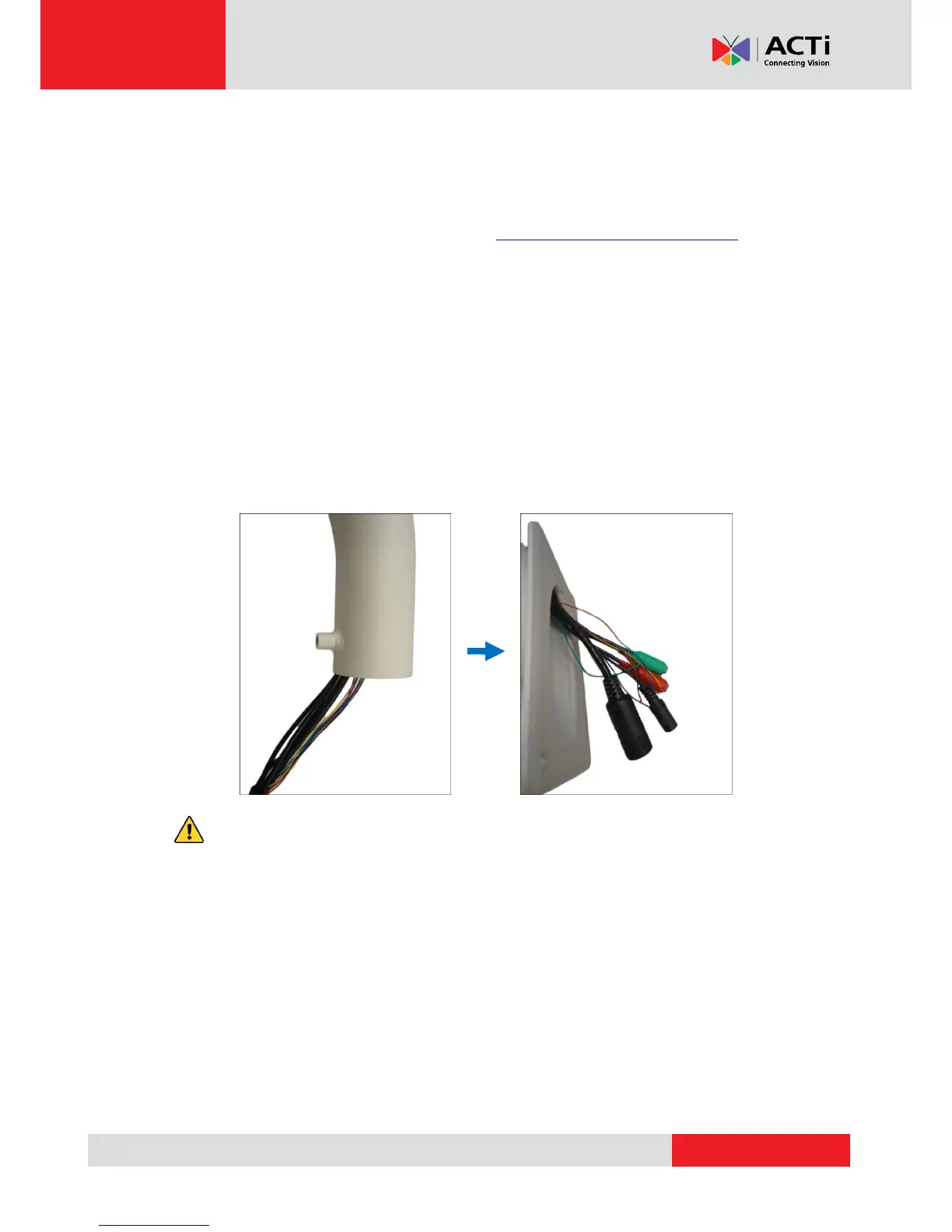

2. Insert the Cable
Insert the camera cables through the mounting tube (e.g. heavy wall mount, straight tube,
extension tube, etc.) and through a hole in the wall or ceiling.
CAUTION: The camera itself is waterproof, however take note that the cable connections
are not. If the cable connections will be exposed outdoors, make sure to shield or
adapt proper waterproofing methods. See Step 3: Waterproof the Cable
Connections on page 20.
DISCLAIMER: ACTi will not be responsible for camera damage caused by water entering the
cable connections.
