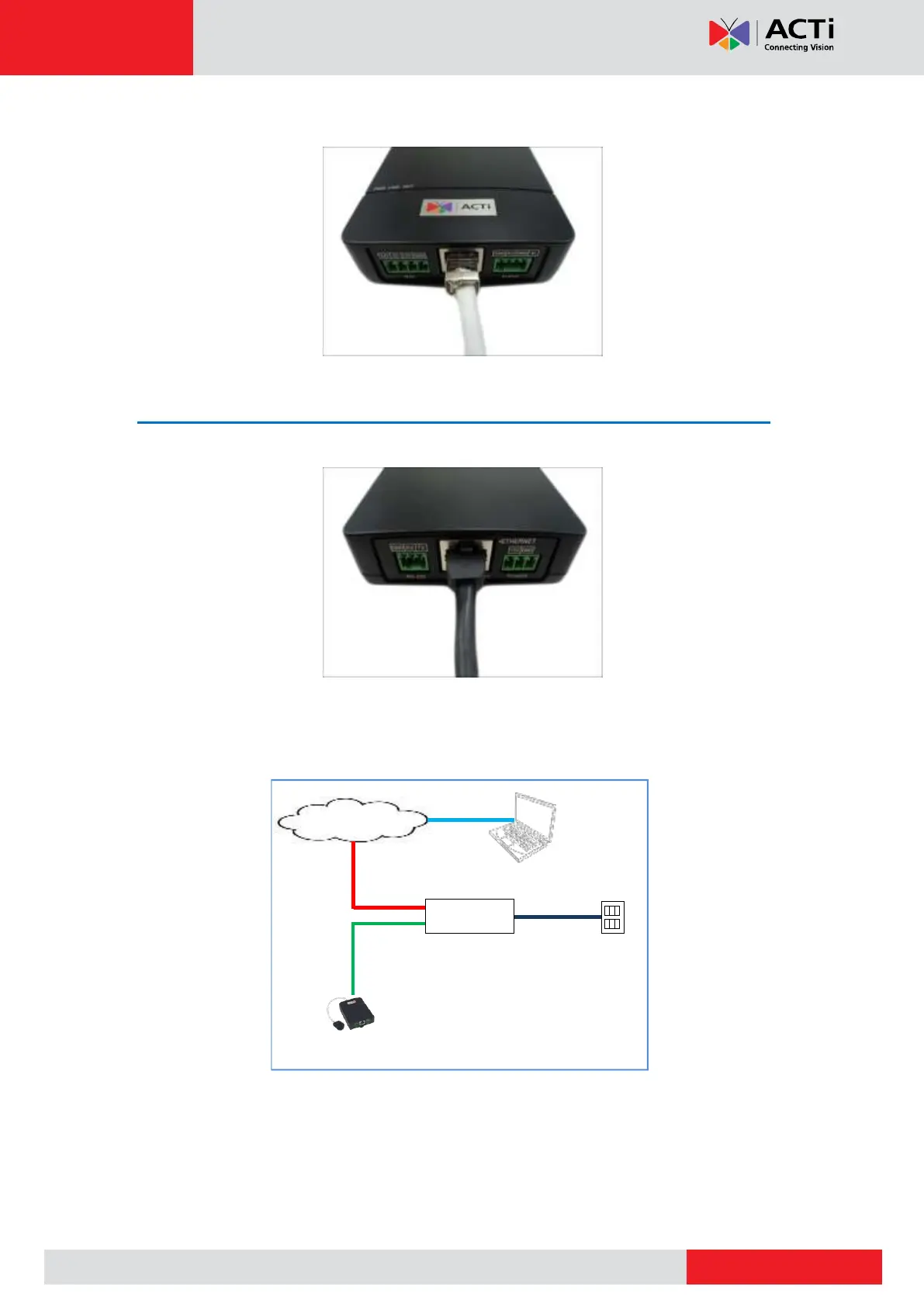

4. Connect the camera cable connector to the Camera port of the main unit.
Step 4: Connect to the Network
1. Connect one end of a network cable to the Ethernet port of the main unit.
2. Connect the other end to a switch or injector. Then, connect the switch or injector to a
network or PC and a power source. See Power-over-Ethernet (PoE) example connection
diagram below.
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
In case of using a non-PoE switch, power up the camera using a power adapter (not
supplied). See Connecting a Power Adapter (Optional) on page 25 for more
information.
