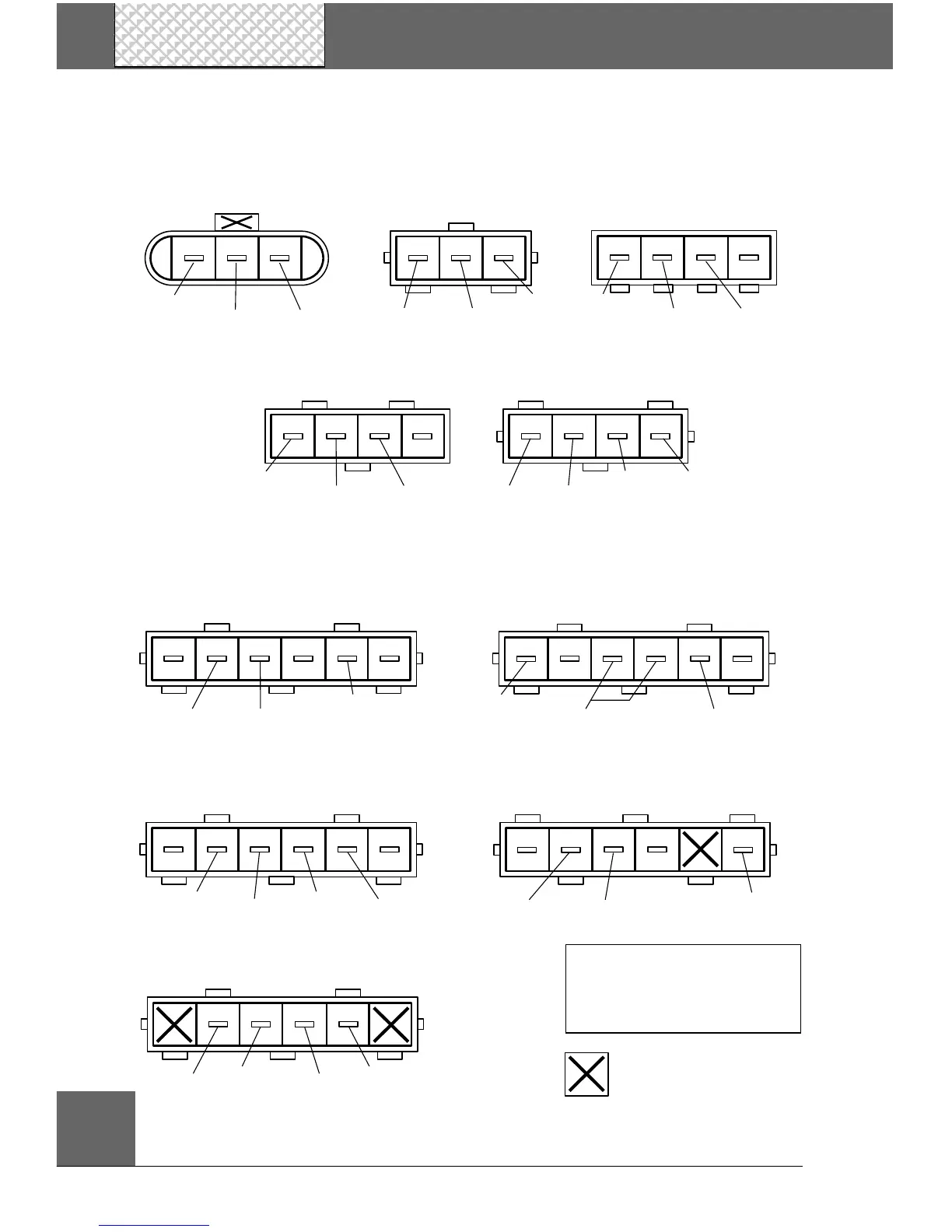

Vehicle Harness Connectors for MAF Sensor
(Mating side of connector shown.)
= May not be used
Refer to vehicle service manual for connectors not shown.
1985-86 Maxima
1985-86 300ZX
1985-86 300ZX Turbo
Power Ground
MAF
Signal
PowerGround
MAF
Signal
PowerGround
MAF
Signal
PowerGround
MAF
Return
MAF
Signal
PowerGround
MAF
Signal
Power Ground
MAF
Signal
1987-88 Maxima
1987-88 200SX SE
1987-89 300ZX
1987 Pulsar NX
1987 Sentra (E16i)
1988 Pulsar NX XE
1988 Sentra
PowerGround
MAF
Signal
PowerGround
MAF
Signal
MAF
Return
1989-90 Sentra
1990 Pulsar NX

Pulsar NX SE
All except 1987-88 1987-88 Pulsar NX SE only
GroundPower
MAF
Signal
1989 and Up Maxima
1990 and Up 300ZX
Power Ground
MAF
Signal
MAF
Return*
*
May not be used
Nissan
All Nissan:
RANGE on HIGH
FUNCTION on VOLTS
