D.07 LIFTING SETUP

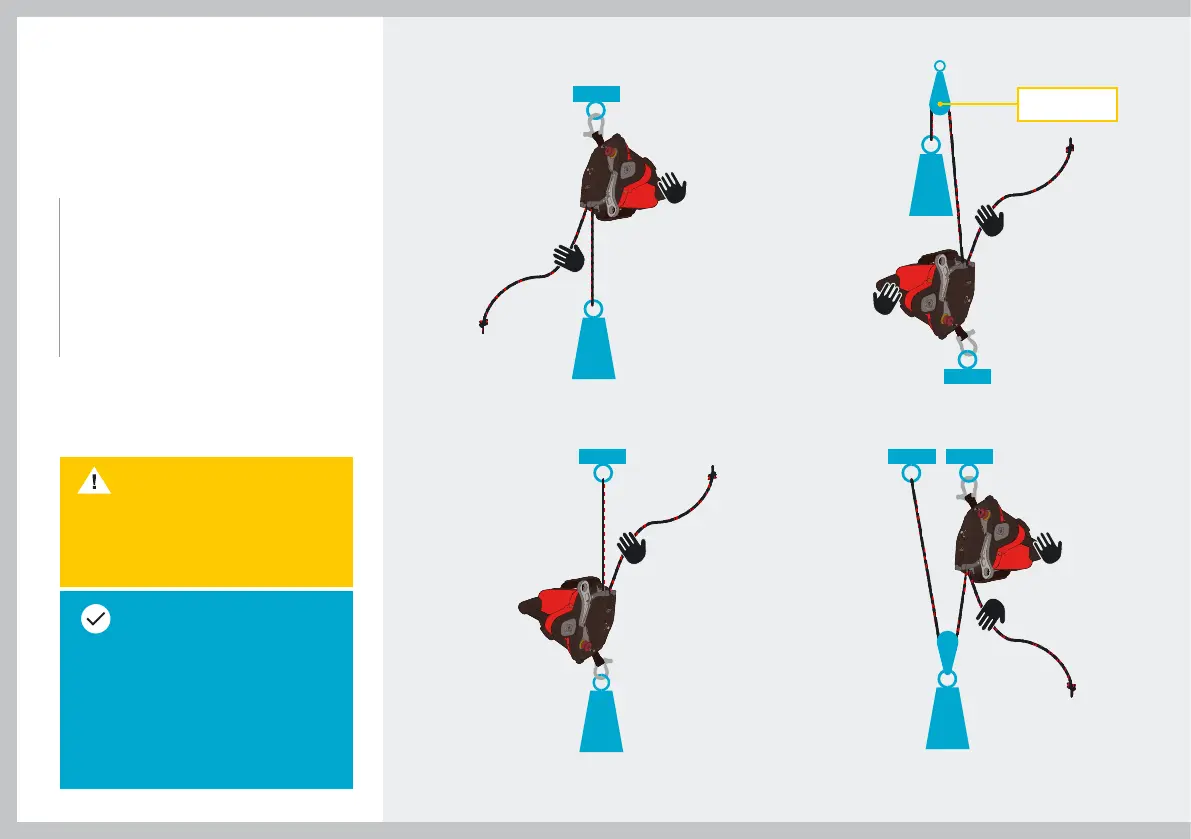

Displayed here are the four
standard lifting setups that are
suitable for use with the ACX
Ascender. They are shown for
illustration purposes only. For
specifi c guidance, please contact
ActSafe or an ActSafe distributor.
CAUTION
DO NOT let the rope become
obstructed or blocked when
going into the Ascender.
Note
The Ascender operator
should, at all times, control
the unloaded rope during
lifting operations to avoid
the rope from twisting when
running into the Ascender.
Top-rigged
Basic setup
Bottom-rigged
Basic setup
Running Ascender
Expert use only
Pulley
Expert use only
Double load
30
