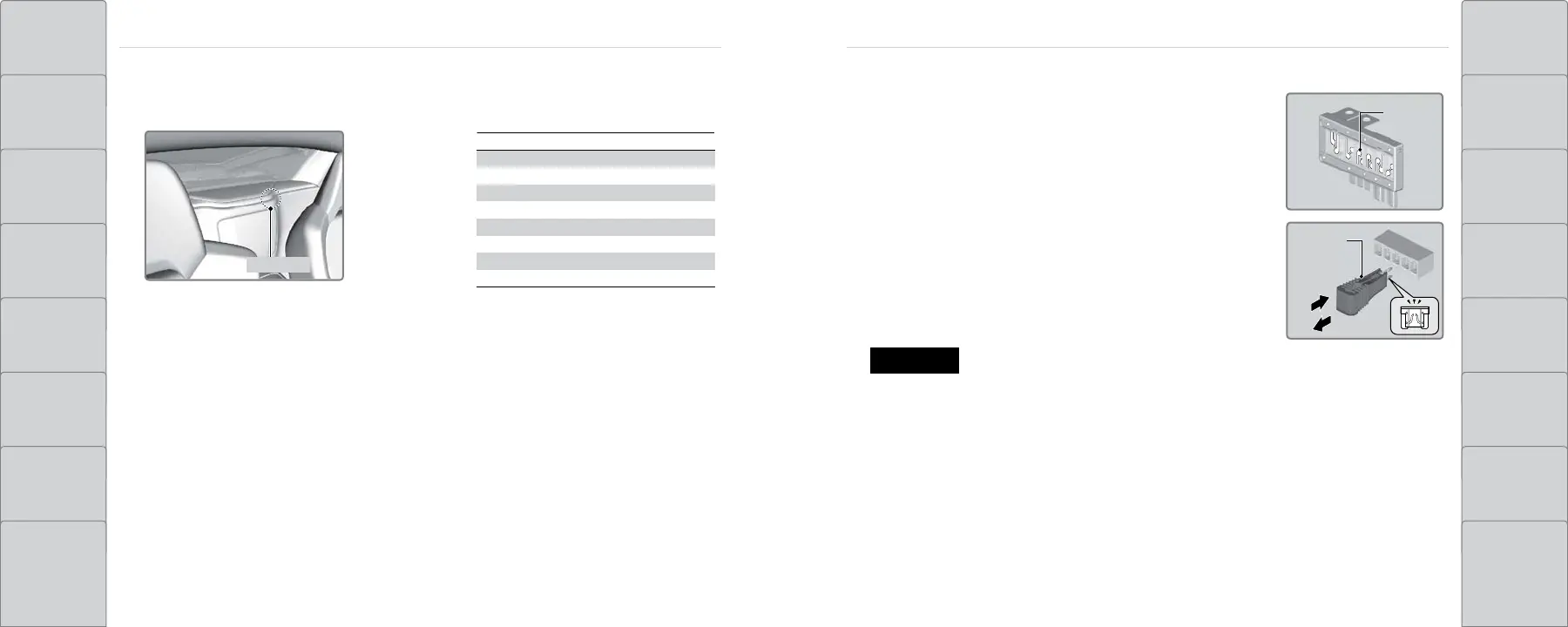

n Interior Rear Fuse Box
Located near the rear-center speaker. The fuse label is the hood fuse box “A”.
Circuit Protected Amps
1
HCA-2 20 A
2
− −
3 − −
4 − −
5 HCA-1 20 A
6
20 A
7
DI-INJ
−−
8 TCU 30 A
n Inspecting and Changing Fuses
Set the power mode to VEHICLE OFF (LOCK). Turn off the
headlights and all accessories.
Remove the fuse box cover.
Check the large fuse in the hood.
If the fuse is blown, use a Phillips-head screwdriver to remove
the screws and replace the fuse with a new one. Reinstall the
screws.
Inspect the small fuses in the hood and the vehicle interior.
If there is a burned out fuse, remove it with the fuse puller and
replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the chances of damaging
the electrical system.
NOTICE
