Rear Panel
The rear panel of the Acurus MUSE is designed for ease of
connection and expandability. A white powder coat finish
makes connector labels easy to see in dimly lit rack mounting
situations.
HDMI Inputs (i1 – i7): At the top back left of the unit are
seven sets of HDMI 2.0 inputs for connecting modern source
devices such as Blue-Ray players, Set Top Boxes,
Streaming media adaptors and any other HDMI-compliant
devices. All inputs are compliant with HDCP 2.2
requirements for copy-protected 4K media.
HDMI Outputs (1 – 2): At the top back right of the unit are
two sets of HDMI 2.0 outputs for connecting up to two HDMI
sink devices such as Flat Panel TVs, Projectors or HDMI
switchers. Both HDMI outputs carry the same source signal.
Output 2 is compliant with the newly released HDCP 2.2
requirements for copy-protected 4K media. Output 1 is
HDMI version 1.4 and should only be used as an
independent monitor output for troubleshooting.
Optical Audio Inputs (i9 – i10): The MUSE includes two
optical digital audio inputs for connecting TOSLink audio
sources such as TVs, Gaming systems, CD players or
streaming media sources from companies such as Amazon,
Google or Roku. These inputs are designed to handle hi-res
audio sources (up to 192kHz/24bit).
Coax Digital Audio Inputs (i11– i12): The MUSE includes two
coax digital audio inputs for connecting SPDIF audio sources
such as TVs, Gaming systems, CD players or other
streaming media sources. These inputs handle multichannel
and hi-res audio sources (up to 192kHz/24bit).
Unbalanced (RCA) analog inputs (i13 – i14): To the right of
the coax digital inputs are two pairs of unbalanced (RCA)
inputs (i13– i14). These inputs accept any line-level stereo
analog source audio inputs such as optical disc players,
streaming players or computer sound cards.
7
Acurus MUSE Immersive Processor USER GUIDE
Revision 20190227
Document 1000905

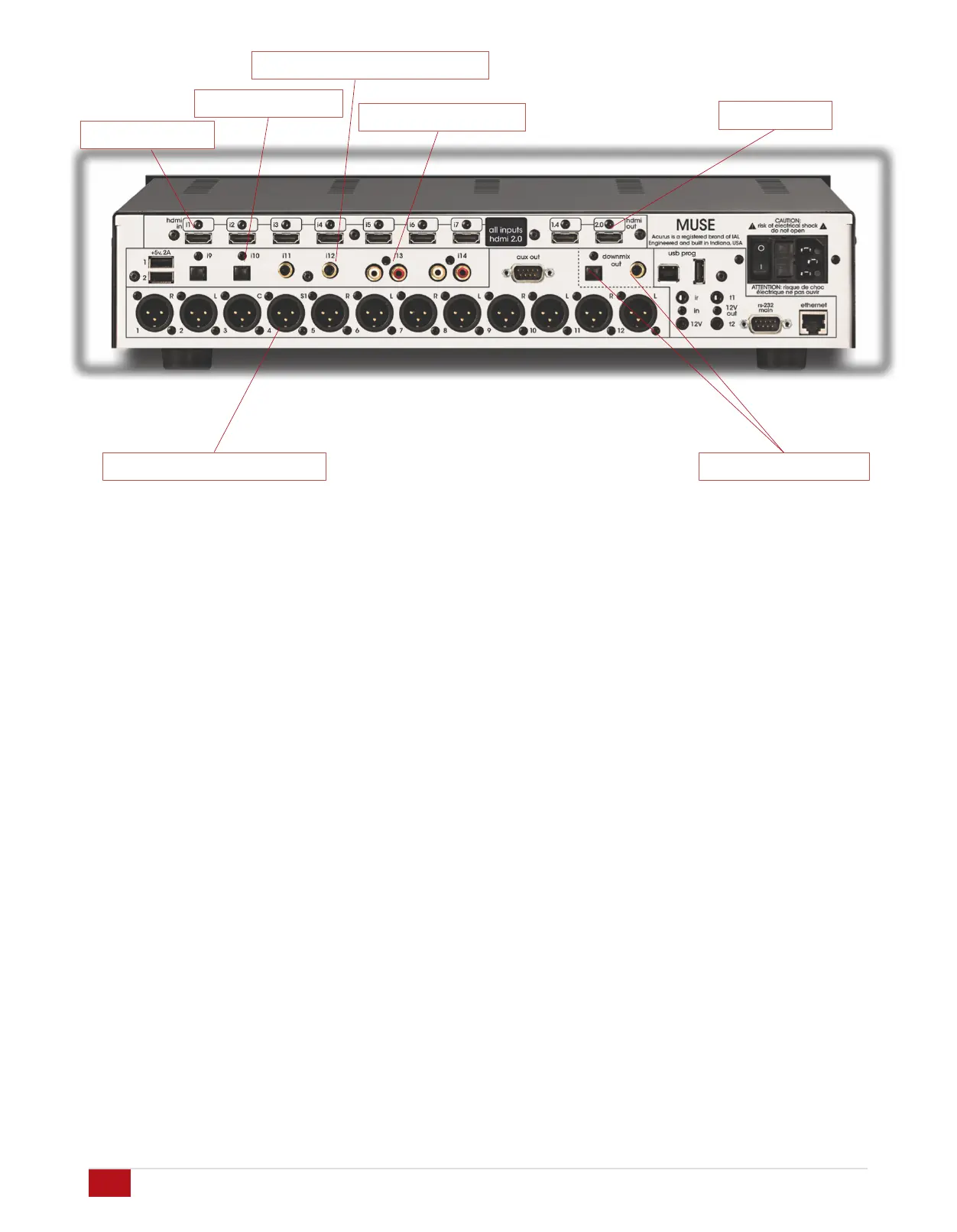

XLR (balanced) outputs (12x)
Optical inputs (2x)
Coax (digital) audio inputs (2x)
2-channel inputs (2x)
Downmix outputs (2x)
HDMI inputs (7x)
HDMI outputs
To Next Page
