ACV HL User Manual

EN • 5
661Y0400.F
ENGLISHFRANCAISNEDERLANDSESPAÑOLITALIANO
РУССКИЙ
DEUTSCH
TECHNICAL CHARACTERISTICS
Tank characteristics
ECO
100
ECO
130
ECO
160
HL
100
HL
130
HL
160
HL
210
HL
240
HLE
100
HLE
130
HLE
160
HLE
210
HLE
240
Total capacity L 105 130 161 105 130 161 203 242 105 130 161 203 242
Primary capacity L 30 31 35 30 31 35 39 42 30 31 35 39 42
Primary fl uid fl ow rate L/h 2100 2600 3500 2100 2600 3500 4200 5500 2100 2600 3500 4200 5500
Primary pressure drop mbar 17 22 37 17 22 37 45 51 17 22 37 45 51
Heating surface m
2
1,03 1,26 1,54 1,03 1,26 1,54 1,94 2,29 1,03 1,26 1,54 1,94 2,29
Tank performances
ECO
100
ECO
130
ECO
160
HL
100
HL
130
HL
160
HL
210
HL
240
HLE
100
HLE
130
HLE
160
HLE
210
HLE
240
Peak fl ow at 40°C L/10’ 236 321 406 236 321 406 547 700 236 321 406 547 700
Peak fl ow at 60°C L/10’ 117 161 209 117 161 209 272 337 117 161 209 272 337
Peak fl ow at 40°C L/60’ 784 1063 1349 784 1063 1349 1820 2319 784 1063 1349 1820 2319
Peak fl ow at 60°C L/60’ 384 549 689 384 549 689 913 1165 384 549 689 913 1165
Constant fl ow at 40°C L/h 658 890 1132 658 890 1132 1527 1943 658 890 1132 1527 1943
Constant fl ow at 60°C L/h 320 465 576 320 465 576 769 994 320 465 576 769 994
Pre-heating time minutes 24 22 22 24 22 22 20 20 24 22 22 20 20
Coeffi cient NL 1,0 2,1 3,0 1,0 2,1 3,0 5,2 11,8 1,0 2,1 3,0 5,2 11,8
Power drawn kW23313923313953682331395368
Heating time with the 2,2 kW
heating element, from 10 to
60°C
— — — — — — — — 2 h 43’ 3 h 27’ 4 h 20’ 5 h 37’ 6 h 37’
Running conditions: 85°C Water intake T°: 10°C
OPERATING CONDITION
Maximum service pressure [tank filled with water]
- Heating circuit: 3 bar
- DHW circuit: 10 bar
Test pressure [tank filled with water]
- Heating circuit: 4,5 bar
- DHW circuit: 13 bar

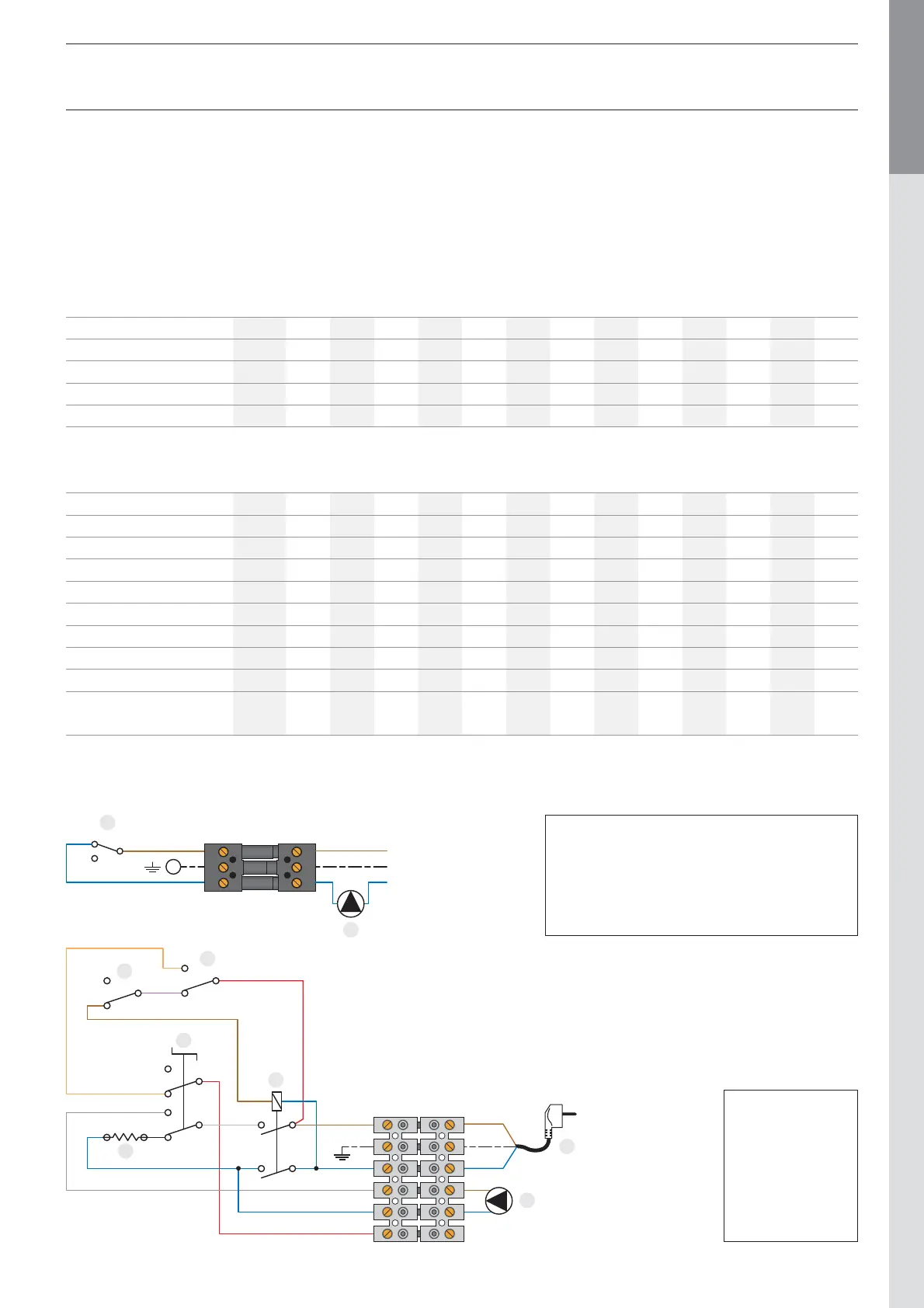

WIRING DIAGRAM
Operating temperature
- Maximum temperature: 90°C
Water quality
• Chlorides: < 150 mg/L [304 Stainless steel]
< 2000 mg/L [Duplex]
• 6 ≤ ph ≤ 8
c
1
2
NL1
L1 N
2
1
7
2
1
2
3
4
5
6
1
2
3
4
5
6
c
1
2
c
1
2
3
4
6
5
HL
HL
E
Br
Y/Gr
B
BrBr
Y/Gr
B
B
Br
Y/Gr
B
Br
B
BrBrWW
Y/Gr
BBB
B
G
B
R
G
Bk
Or
R
R
BBr
R
V
Br
Or
7
B. Blue
Bk. Black
Br. Brown
G. Grey
Or. Orange
R. Red
V. Vio le t
W. Wh it e
Y/G r. Ye l lo w/Gr e e n
1. 230 Volt connection cord
2. Control thermostat [60/90°C]
3. Manual reset high limit thermostat [103°C max.]
4. Summer/Winter switch
5. Domestic hot water priority relay
6. Electric heating element
7. Load pump [in option]
