ACV HL User Manual

EN • 7
661Y0400.F
ENGLISHFRANCAISNEDERLANDSESPAÑOLITALIANO
РУССКИЙ
DEUTSCH

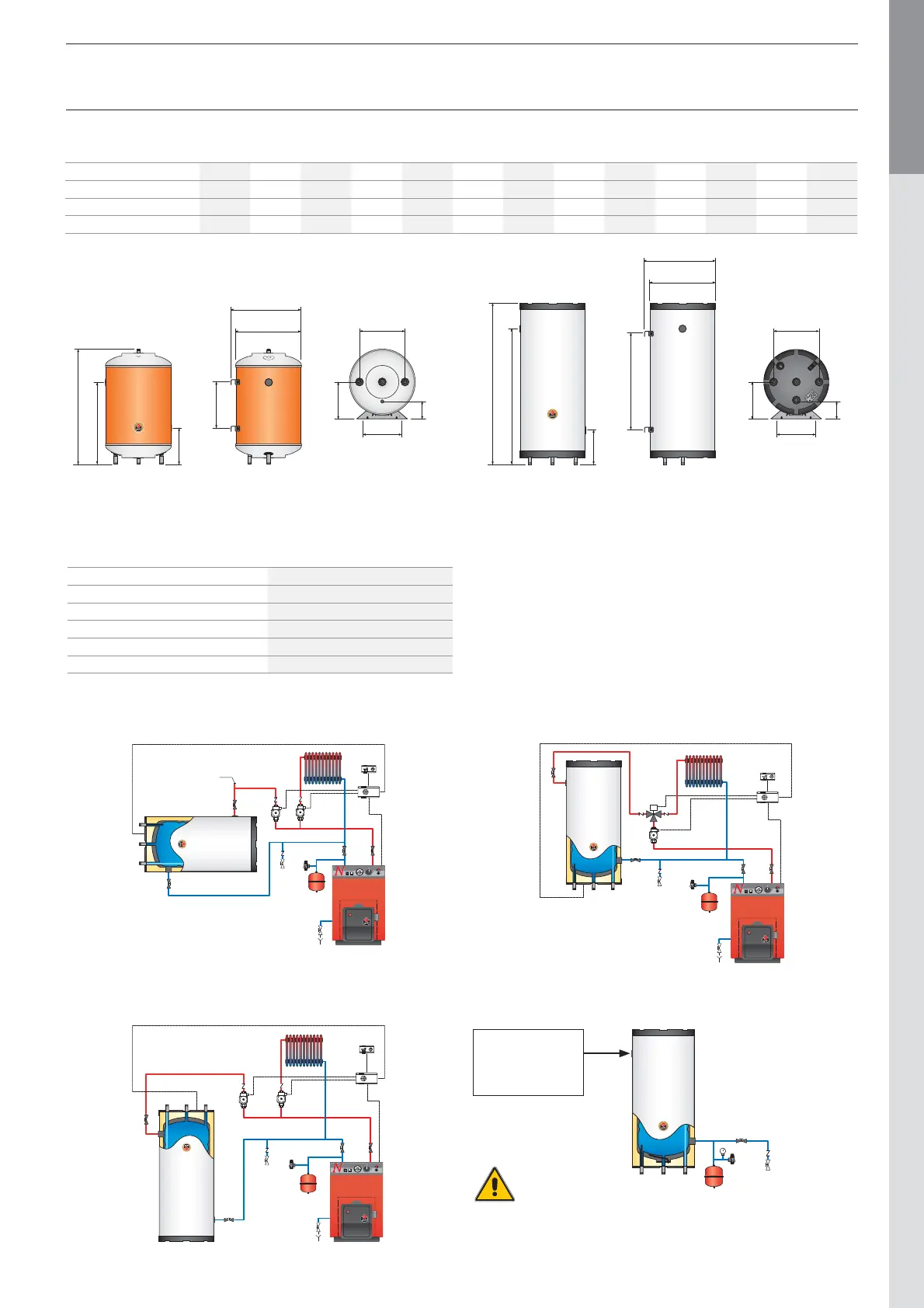

INSTALLATION
DIMENSIONS
ECO
100
ECO
130
ECO
160
HL
100
HL
130
HL
160
HL
210
HL
240
HLE
100
HLE
130
HLE
160
HLE
210
HLE
240
A mm 882 1042 1242 847 1007 1207 1479 1726 847 1007 1207 1479 1726
B mm 629 789 989 629 789 989 1261 1508 629 789 989 1261 1508
C mm 365 525 725 365 525 725 997 1244 365 525 725 997 1244
Weight empty [kg] 40 47 55 40 47 55 65 75 40 47 55 65 75
517
555
A
B
264
C
360
325
296
146
514
552
A
B
264
C
360
325
295
145
HL / HLEECO
CENTRAL HEATING CONNECTIONS
PIPE DIMENSIONS
Models Central heating
ECO / HL / HLE 100 L 1”1/4
ECO / HL / HLE 130 L 1”1/4
ECO / HL / HLE 160 L 1”1/4
HL / HLE 210 L 1”1/4
HL / HLE 240 L 1”1/4
1. System filling valve
2. Safety valve calibrated to 3 bar
3. Expansion vessel
4. Drain cock
5. Isolation valve, heating system
6. Room thermostat
7. Optional boiler control [BC 01 or BC 03]
8. Boiler pump
9. Heating pump
10. 3-ways motorized mixing valve
11. Air valve of the primary circuit
5
5 5
1
8
9
4
2
3
6
7
5
11
Single tank with primary pump.
Horizontally mounted wall hung tank. (Excepted for the HLE)
5
5
5 5
1
8
10
4
2
3
6
7
Single tank with three ways motorized mixing valve.
Vertically mounted wall hung tank.
5
5
5 5
1
8
9
4
2
3
6
7
Single tank with primary pump.
Floor mounted tank. (HL only)
HLE tank used as electic domestic
hot water heater only
5
1
2
3
This connection
to be plugged.
Do not power the heating element ij the
oustide tank is not filled and drained.
