ACV Prestige - Solo 80;110 Internal Components

27
6.0 Replacement Parts
1
4
5
2
2
3
6
10
8
9
7

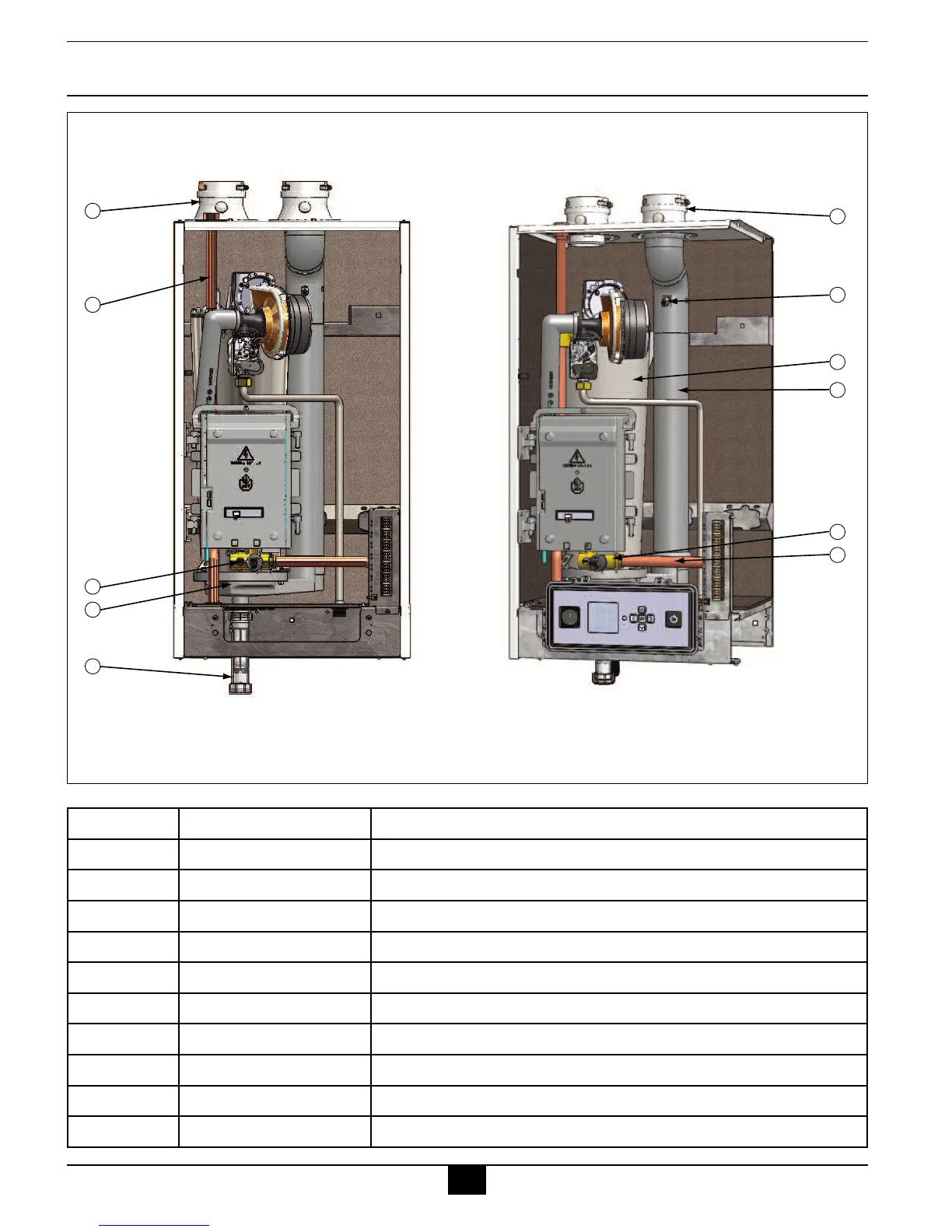

Fig. 6: PRESTIGE Solo 80/110 Internal Components
Item Part # Description
1 PARKIT90 Heat Exchanger Body
2 PTADPT07 Vent Outlet/Combustion Air Inlet Adapter
3 PARKIT02 Polypropylene Vent Pipe
4 PTRKIT123 Supply/Return Temperature Sensor
5 PARKIT01 Flue Temperature Sensor
6 PARKIT04 LWCO Pressure Sensor
7 PARKIT05 Condensate Drain Assembly
8 PARKIT06 Boiler Piping - Return Assembly
9 PARKIT07 Boiler Piping - Supply Assembly
10 PARKIT13 Polypropylene Condensate Pan
