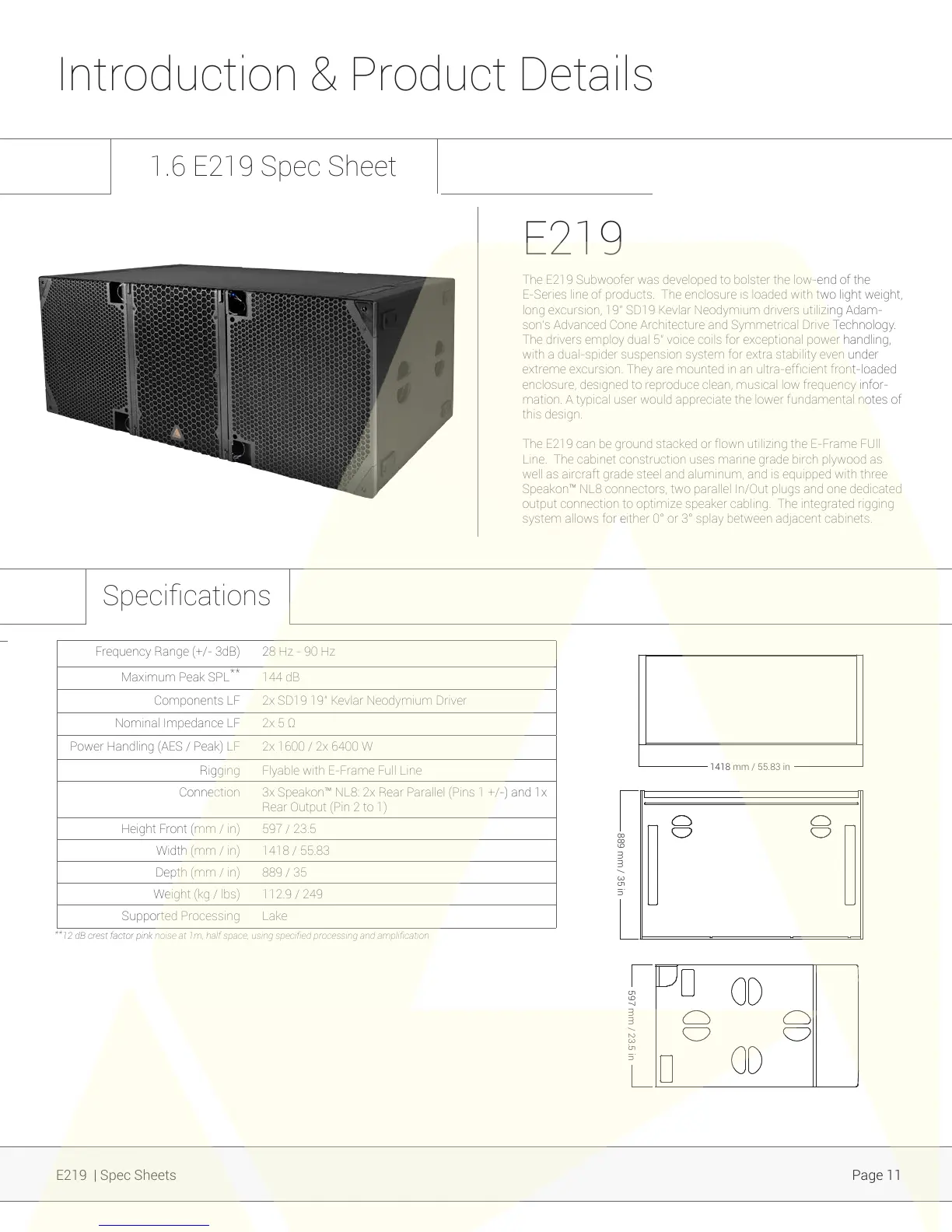

1.6 E219 Spec Sheet
Introduction & Product Details
E219
The E219 Subwoofer was developed to bolster the low-end of the
E-Series line of products. The enclosure is loaded with two light weight,
long excursion, 19” SD19 Kevlar Neodymium drivers utilizing Adam-
son’s Advanced Cone Architecture and Symmetrical Drive Technology.
The drivers employ dual 5” voice coils for exceptional power handling,
with a dual-spider suspension system for extra stability even under
extreme excursion. They are mounted in an ultra-efcient front-loaded
enclosure, designed to reproduce clean, musical low frequency infor-
mation. A typical user would appreciate the lower fundamental notes of
this design.
The E219 can be ground stacked or flown utilizing the E-Frame FUll
Line. The cabinet construction uses marine grade birch plywood as
well as aircraft grade steel and aluminum, and is equipped with three
Speakon™ NL8 connectors, two parallel In/Out plugs and one dedicated
output connection to optimize speaker cabling. The integrated rigging
system allows for either 0° or 3° splay between adjacent cabinets.
Specications
Frequency Range (+/- 3dB) 28 Hz - 90 Hz
Maximum Peak SPL
**
144 dB
Components LF 2x SD19 19” Kevlar Neodymium Driver
Nominal Impedance LF 2x 5 Ω
Power Handling (AES / Peak) LF 2x 1600 / 2x 6400 W
Rigging Flyable with E-Frame Full Line
Connection 3x Speakon™ NL8: 2x Rear Parallel (Pins 1 +/-) and 1x
Rear Output (Pin 2 to 1)
Height Front (mm / in) 597 / 23.5
Width (mm / in) 1418 / 55.83
Depth (mm / in) 889 / 35
Weight (kg / lbs) 112.9 / 249
Supported Processing Lake
**
12 dB crest factor pink noise at 1m, half space, using specied processing and amplication
1418 mm / 55.83 in
889 mm / 35 in
597 mm / 23.5 in
