Page 14

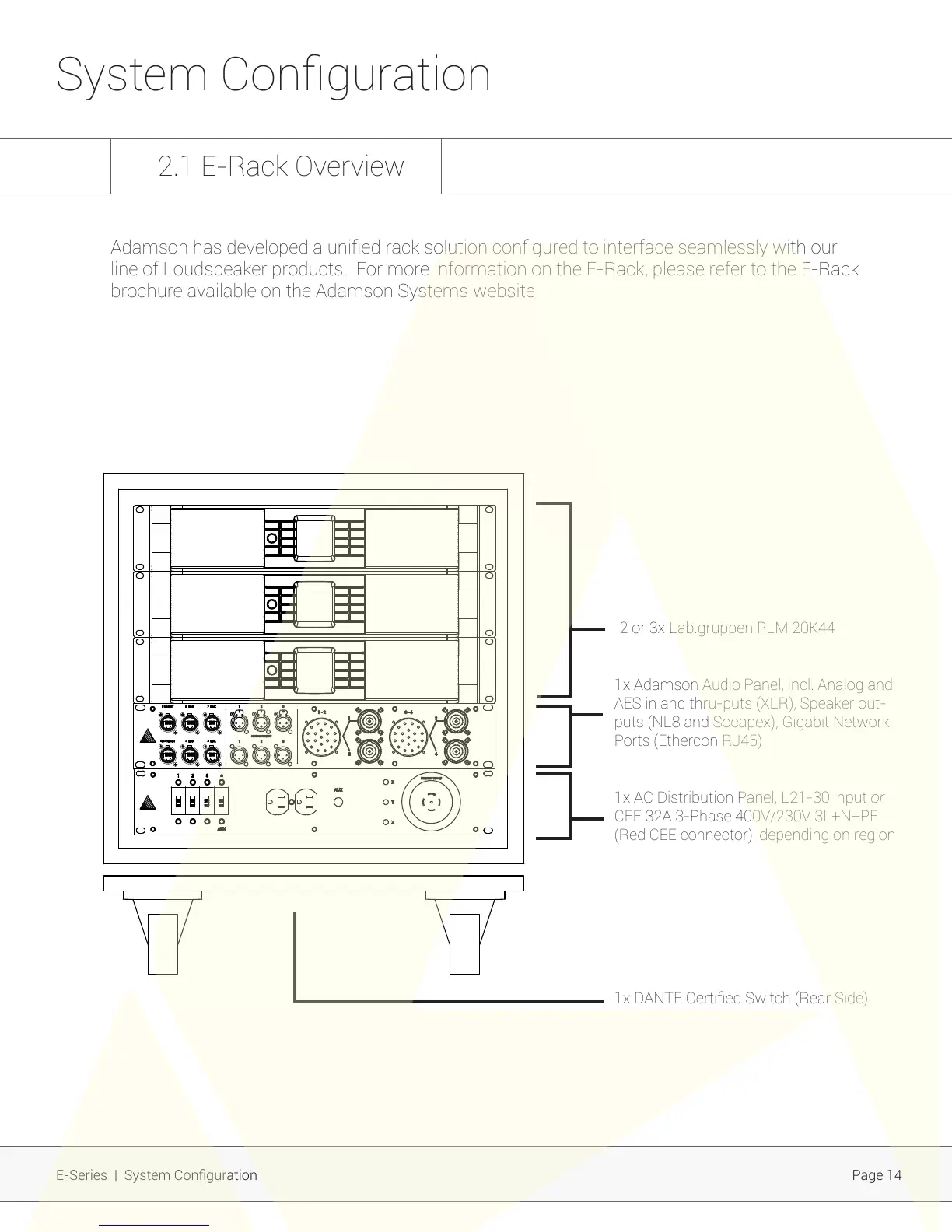

2.1 E-Rack Overview
System Conguration
E-Series | System Conguration
P
US
H
P
US
H
P
US
H
P
US
H
P
US
H
P
US
H
Adamson has developed a unied rack solution congured to interface seamlessly with our
line of Loudspeaker products. For more information on the E-Rack, please refer to the E-Rack
brochure available on the Adamson Systems website.
2 or 3x Lab.gruppen PLM 20K44
1x Adamson Audio Panel, incl. Analog and
AES in and thru-puts (XLR), Speaker out-
puts (NL8 and Socapex), Gigabit Network
Ports (Ethercon RJ45)
1x AC Distribution Panel, L21-30 input or
CEE 32A 3-Phase 400V/230V 3L+N+PE
(Red CEE connector), depending on region
1x DANTE Certied Switch (Rear Side)
