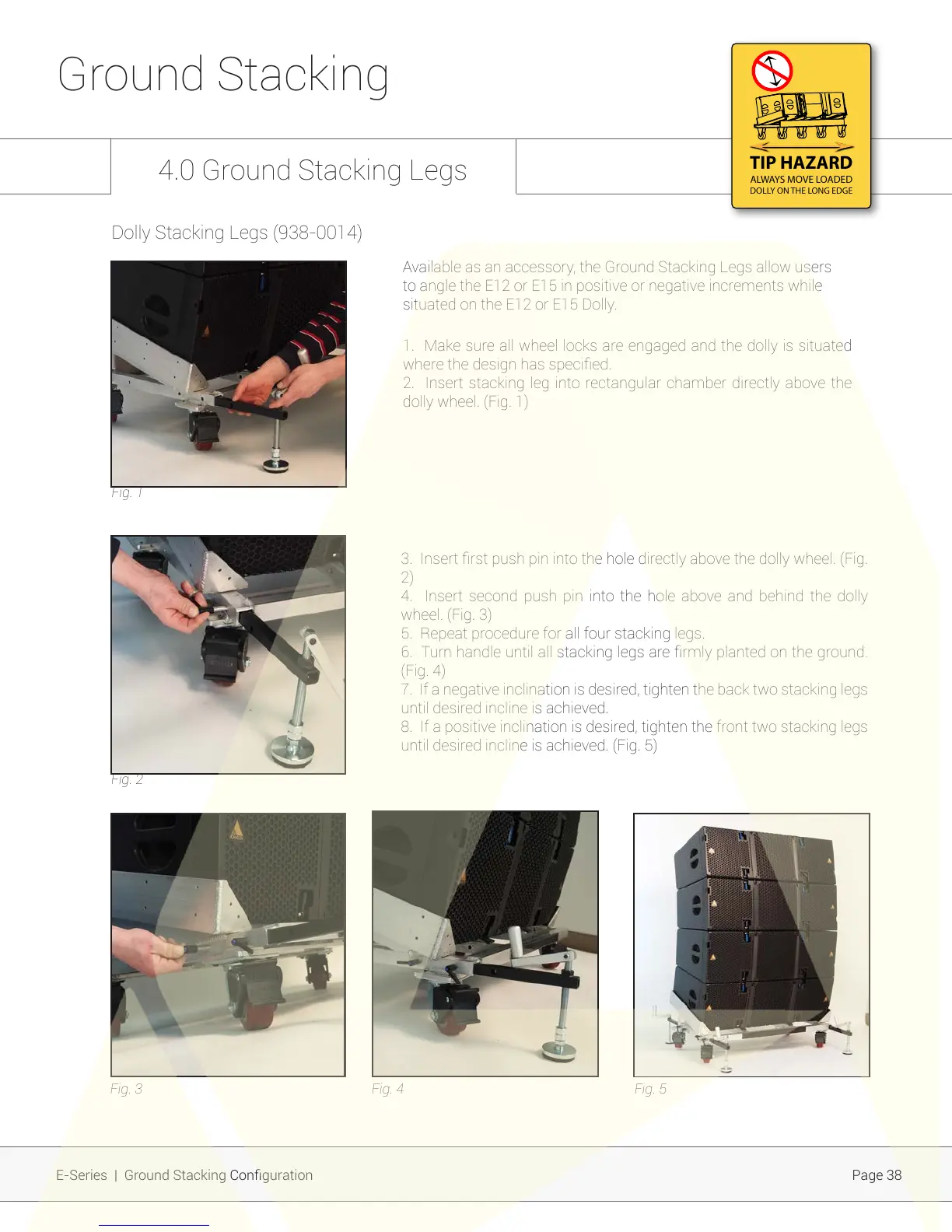

4.0 Ground Stacking Legs
Ground Stacking
1. Make sure all wheel locks are engaged and the dolly is situated
where the design has specied.
2. Insert stacking leg into rectangular chamber directly above the
dolly wheel. (Fig. 1)
E-Series | Ground Stacking Conguration
Fig. 1
Fig. 2
Fig. 3 Fig. 4 Fig. 5
Dolly Stacking Legs (938-0014)
TIP HAZARD
ALWAYS MOVE LOADED
DOLLY ON THE LONG EDGE
Available as an accessory, the Ground Stacking Legs allow users
to angle the E12 or E15 in positive or negative increments while
situated on the E12 or E15 Dolly.
3. Insert rst push pin into the hole directly above the dolly wheel. (Fig.
2)
4. Insert second push pin into the hole above and behind the dolly
wheel. (Fig. 3)
5. Repeat procedure for all four stacking legs.
6. Turn handle until all stacking legs are rmly planted on the ground.
(Fig. 4)
7. If a negative inclination is desired, tighten the back two stacking legs
until desired incline is achieved.
8. If a positive inclination is desired, tighten the front two stacking legs
until desired incline is achieved. (Fig. 5)
