3.4 Rigging Sticker Legend

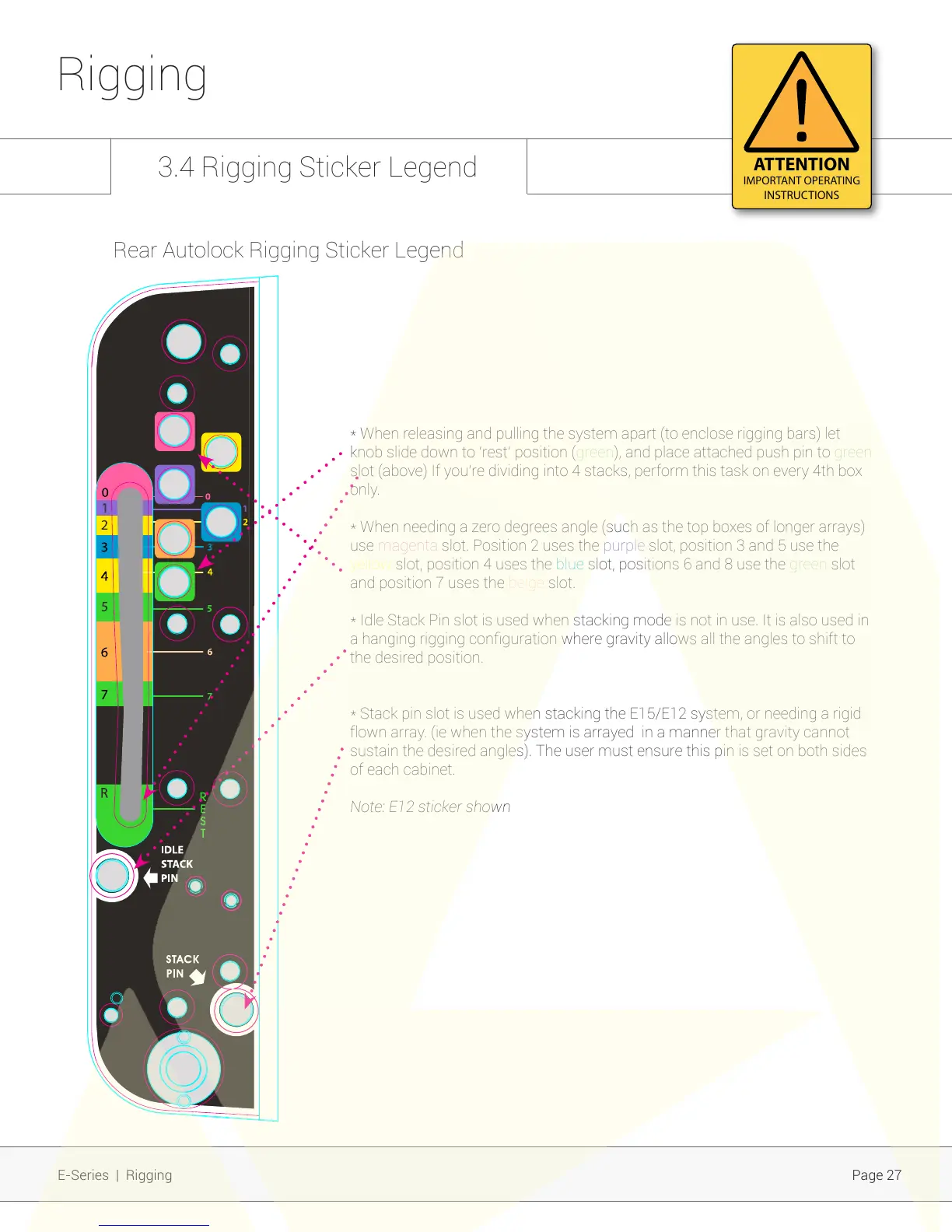

Rear Autolock Rigging Sticker Legend
* When releasing and pulling the system apart (to enclose rigging bars) let
knob slide down to ‘rest’ position (green), and place attached push pin to green
slot (above) If you’re dividing into 4 stacks, perform this task on every 4th box
only.
* When needing a zero degrees angle (such as the top boxes of longer arrays)
use magenta slot. Position 2 uses the purple slot, position 3 and 5 use the
yellow slot, position 4 uses the blue slot, positions 6 and 8 use the green slot
and position 7 uses the beige slot.
* Idle Stack Pin slot is used when stacking mode is not in use. It is also used in
a hanging rigging conguration where gravity allows all the angles to shift to
the desired position.
* Stack pin slot is used when stacking the E15/E12 system, or needing a rigid
flown array. (ie when the system is arrayed in a manner that gravity cannot
sustain the desired angles). The user must ensure this pin is set on both sides
of each cabinet.
Note: E12 sticker shown
