Page 26

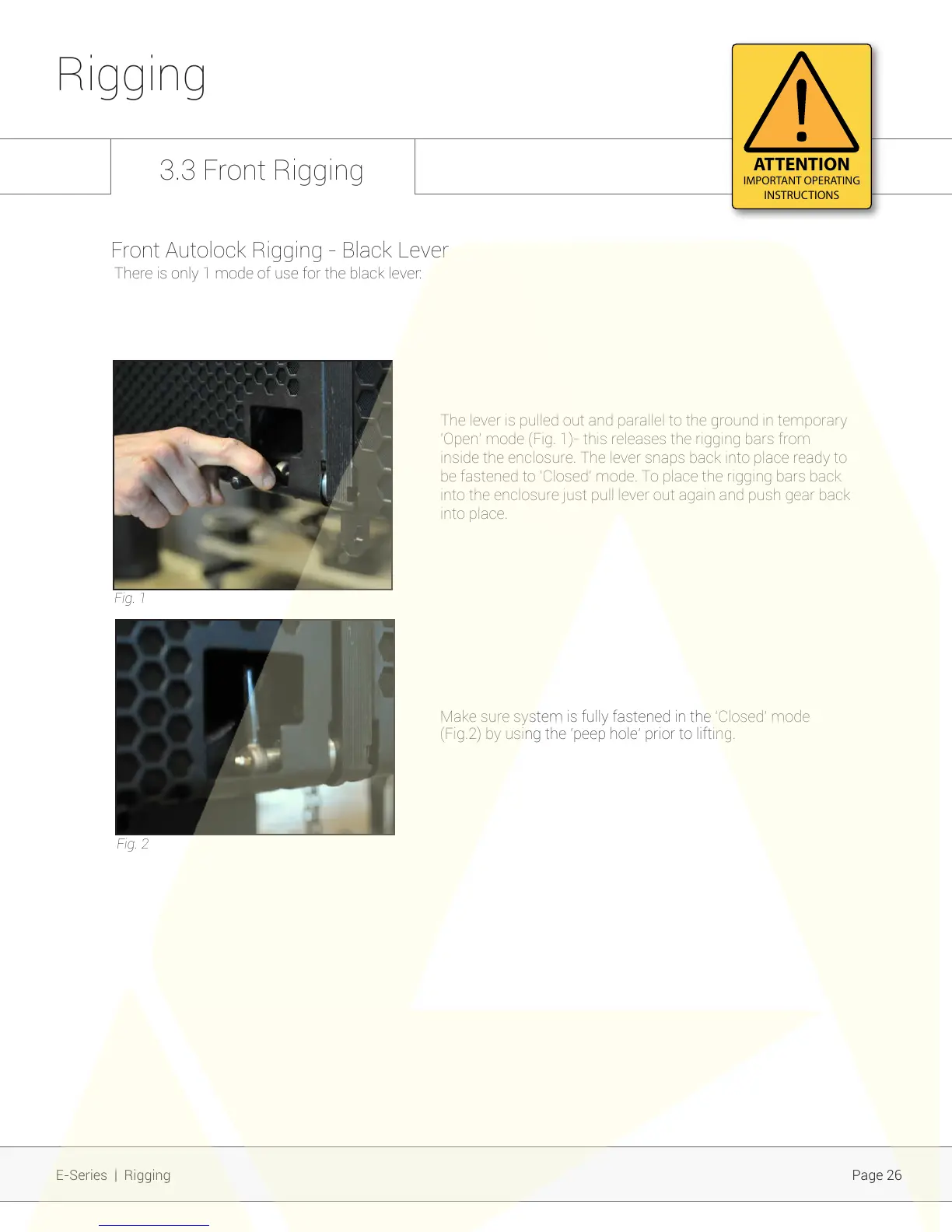

3.3 Front Rigging
Front Autolock Rigging - Black Lever
There is only 1 mode of use for the black lever:
The lever is pulled out and parallel to the ground in temporary
‘Open’ mode (Fig. 1)- this releases the rigging bars from
inside the enclosure. The lever snaps back into place ready to
be fastened to ’Closed’ mode. To place the rigging bars back
into the enclosure just pull lever out again and push gear back
into place.
Fig. 1
Fig. 2
Rigging
E-Series | Rigging
ATTENTION
IMPORTANT OPERATING
INSTRUCTIONS
Make sure system is fully fastened in the ‘Closed’ mode
(Fig.2) by using the ‘peep hole’ prior to lifting.
