Page 31

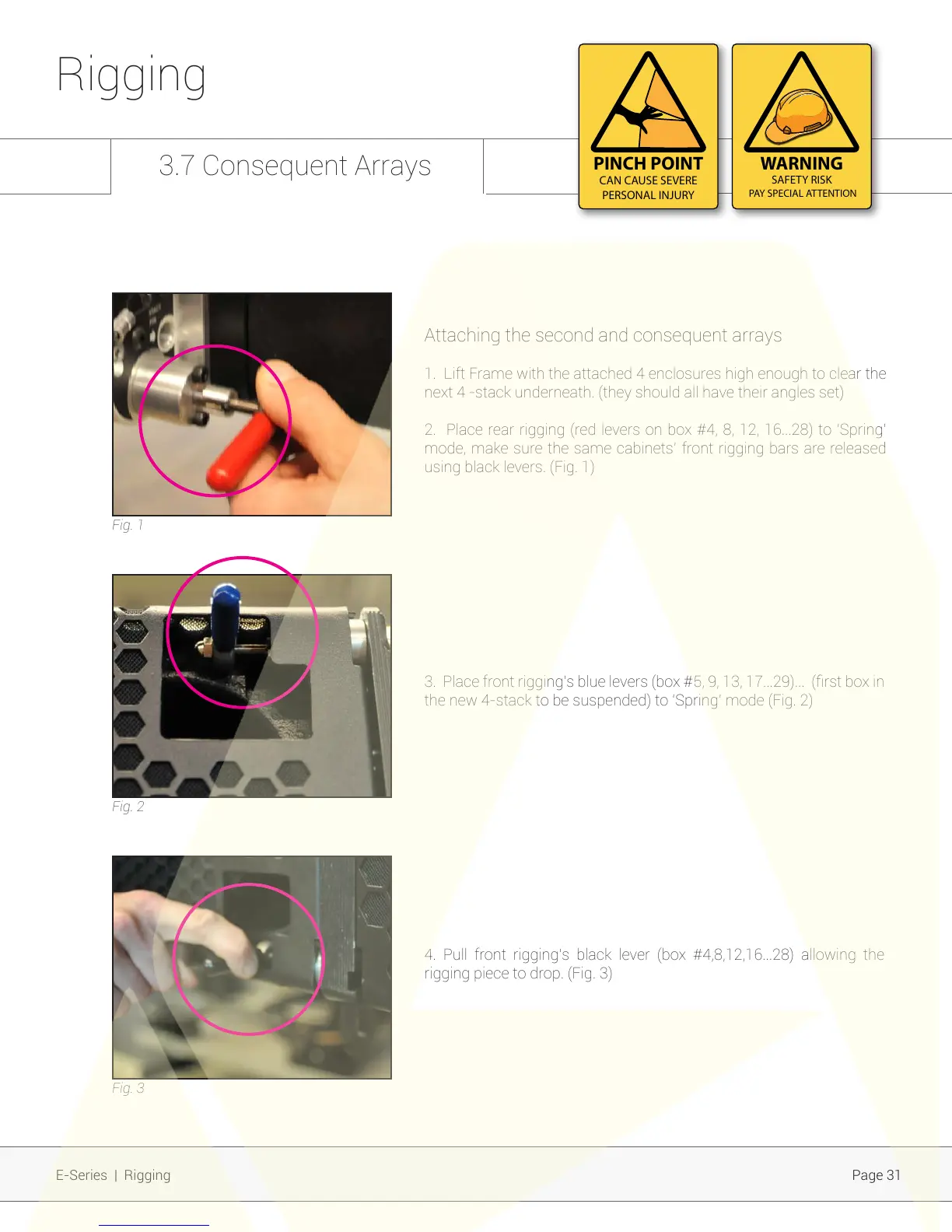

3.7 Consequent Arrays
Attaching the second and consequent arrays
1. Lift Frame with the attached 4 enclosures high enough to clear the
next 4 -stack underneath. (they should all have their angles set)
2. Place rear rigging (red levers on box #4, 8, 12, 16...28) to ‘Spring’
mode, make sure the same cabinets’ front rigging bars are released
using black levers. (Fig. 1)
3. Place front rigging’s blue levers (box #5, 9, 13, 17...29)... (rst box in
the new 4-stack to be suspended) to ‘Spring’ mode (Fig. 2)
4. Pull front rigging’s black lever (box #4,8,12,16...28) allowing the
rigging piece to drop. (Fig. 3)
Fig. 1
Fig. 2
Fig. 3
Rigging
E-Series | Rigging
PINCH POINT
CAN CAUSE SEVERE
PERSONAL INJURY
WARNING
SAFETY RISK
PAY SPECIAL ATTENTION
