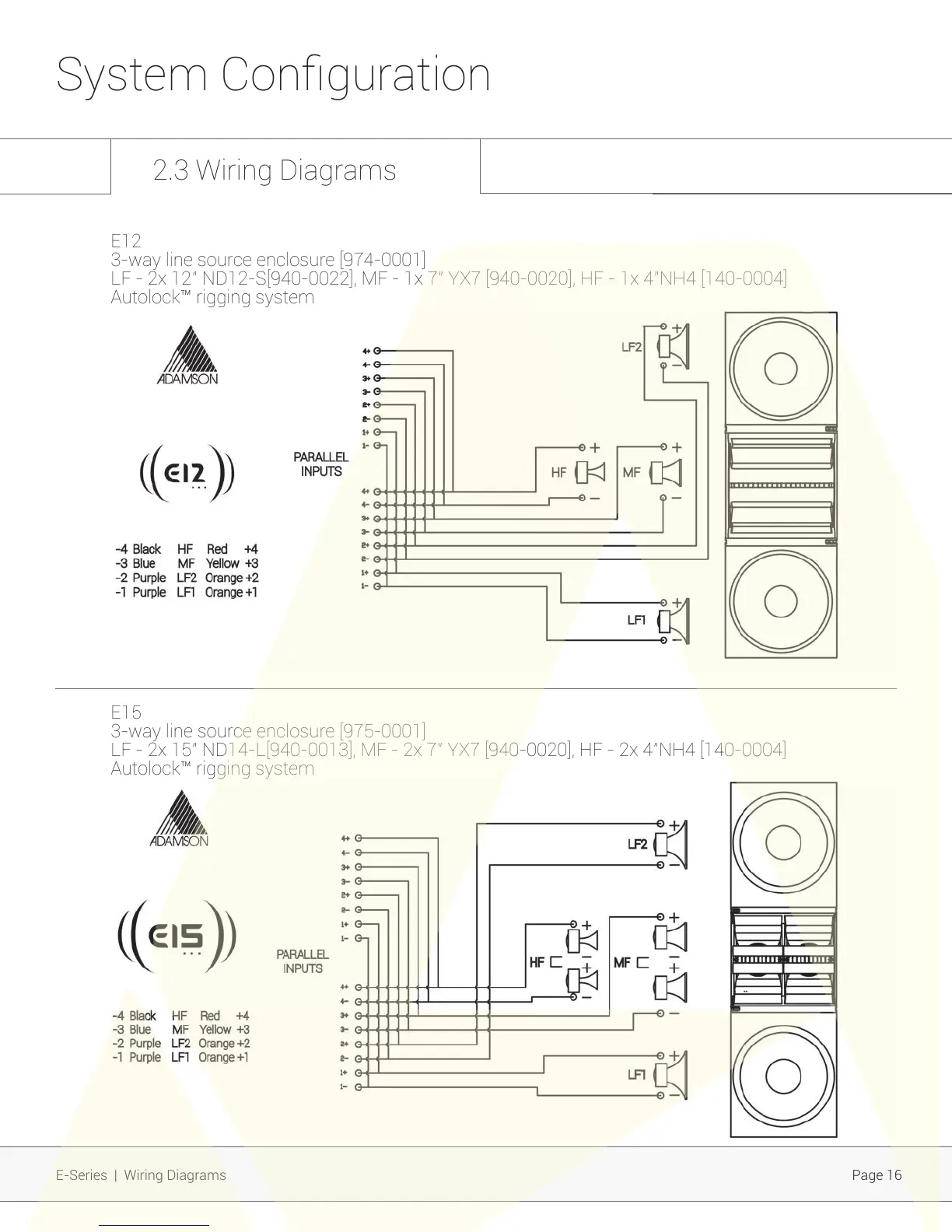

2.3 Wiring Diagrams
System Conguration
E-Series | Wiring Diagrams
E12
3-way line source enclosure [974-0001]
LF - 2x 12” ND12-S[940-0022], MF - 1x 7” YX7 [940-0020], HF - 1x 4”NH4 [140-0004]
Autolock™ rigging system
E15
3-way line source enclosure [975-0001]
LF - 2x 15” ND14-L[940-0013], MF - 2x 7” YX7 [940-0020], HF - 2x 4”NH4 [140-0004]
Autolock™ rigging system
