Adamson E12 - Truck Pack 5.0 Possible Configurations

Page 39
Truck Pack
5.0 Possible Congurations
The E-Series system has been designed to t standard truck widths in several different congu-
rations. This section shows some of the options.
76.5"
99.4"
45"
63.8"
92.9"
45.3"
2.5m
1.9m
99.4"
2.5m
1.1m
2.4m
1.2m
92.9"
2.4m
1.6m
76.5"
99.4"
45"
63.8"
92.9"
45.3"
2.5m
1.9m
99.4"
2.5m
1.1m
2.4m
1.2m
92.9"
2.4m
1.6m

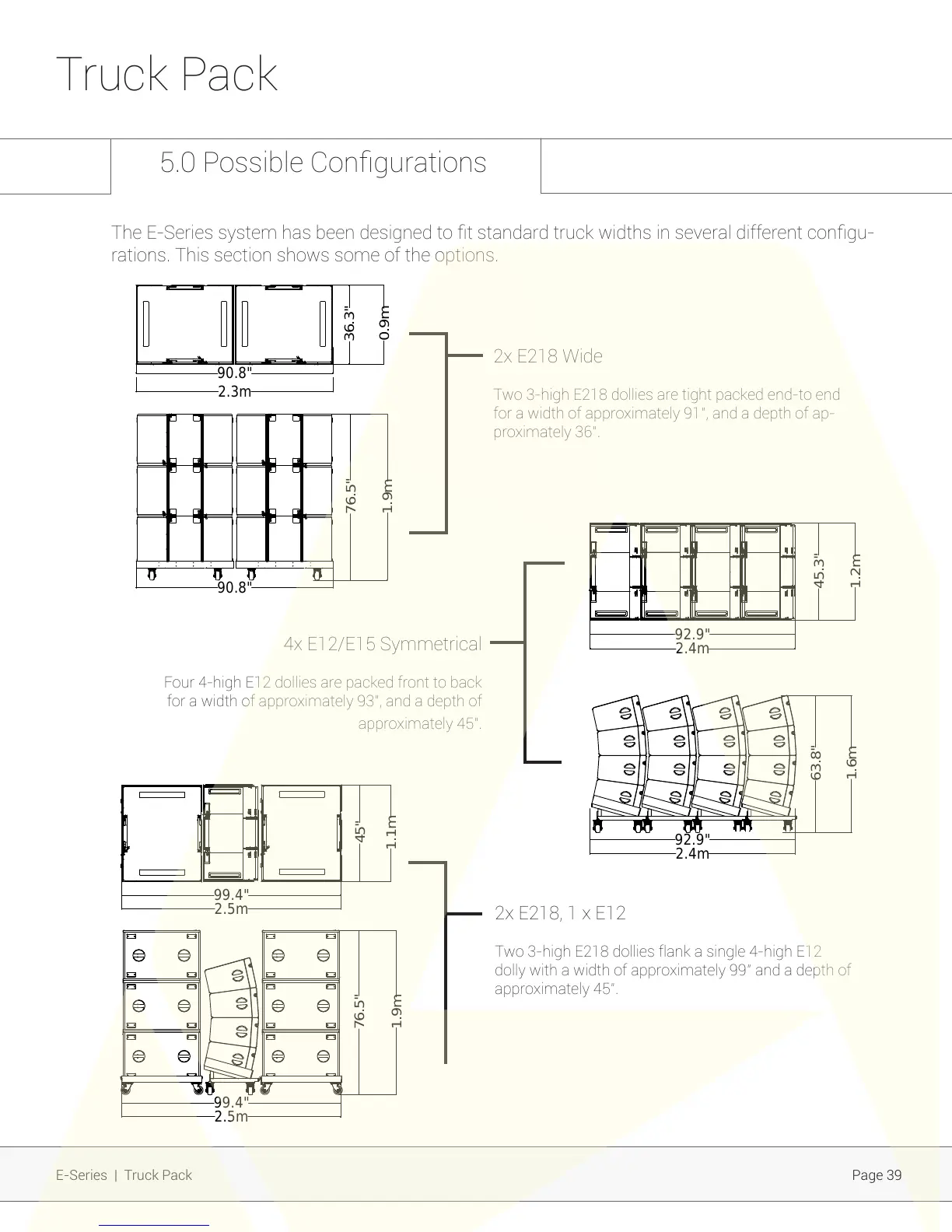

2x E218 Wide
Two 3-high E218 dollies are tight packed end-to end
for a width of approximately 91”, and a depth of ap-
proximately 36”.
2x E218, 1 x E12
Two 3-high E218 dollies flank a single 4-high E12
dolly with a width of approximately 99” and a depth of
approximately 45”.
4x E12/E15 Symmetrical
Four 4-high E12 dollies are packed front to back
for a width of approximately 93”, and a depth of
approximately 45”.
76.5"
90.8"
36.3"
2.3m
0.9m
90.8"
1.9m
2.3m
E-Series | Truck Pack
