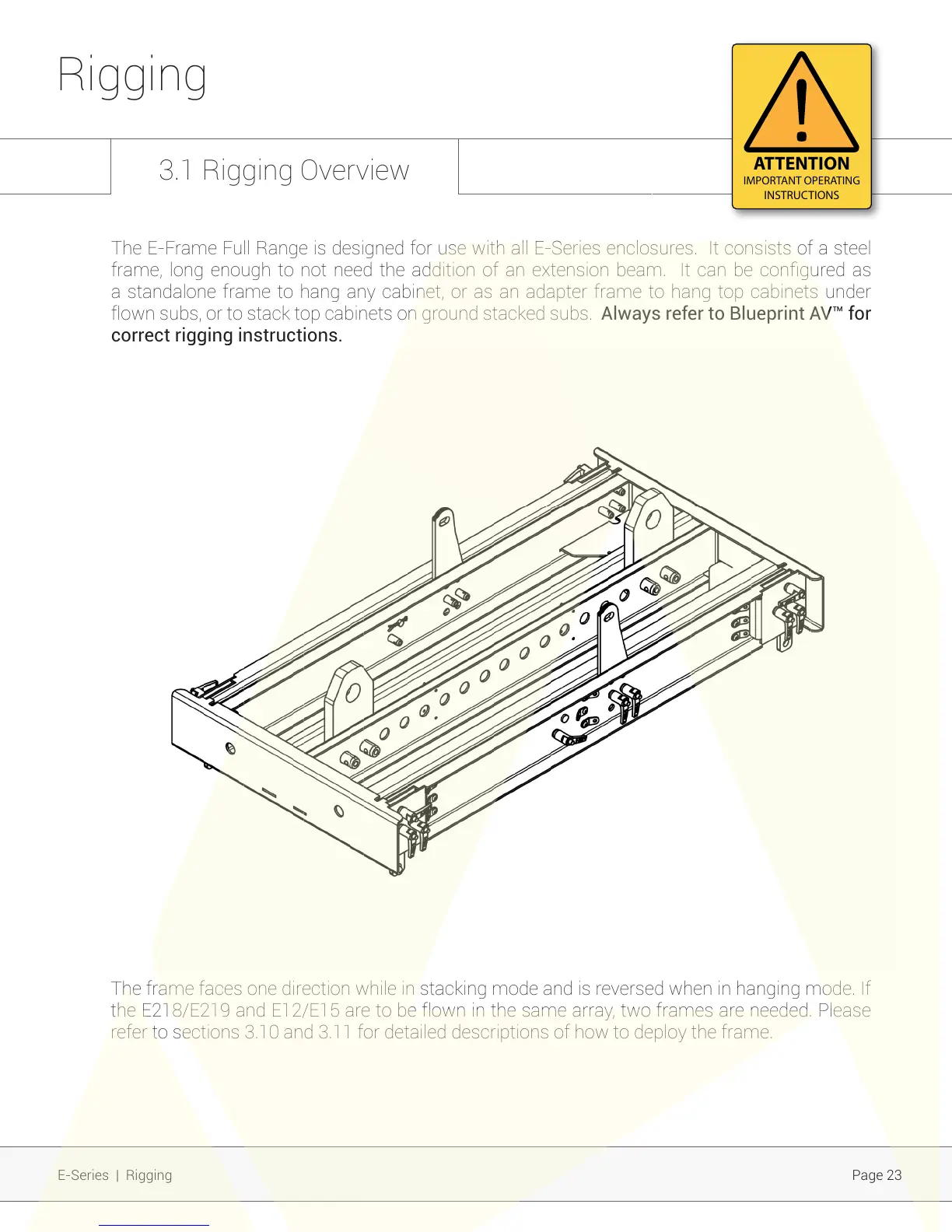

The E-Frame Full Range is designed for use with all E-Series enclosures. It consists of a steel
frame, long enough to not need the addition of an extension beam. It can be congured as
a standalone frame to hang any cabinet, or as an adapter frame to hang top cabinets under
flown subs, or to stack top cabinets on ground stacked subs. Always refer to Blueprint AV™ for
correct rigging instructions.
The frame faces one direction while in stacking mode and is reversed when in hanging mode. If
the E218/E219 and E12/E15 are to be flown in the same array, two frames are needed. Please
refer to sections 3.10 and 3.11 for detailed descriptions of how to deploy the frame.
